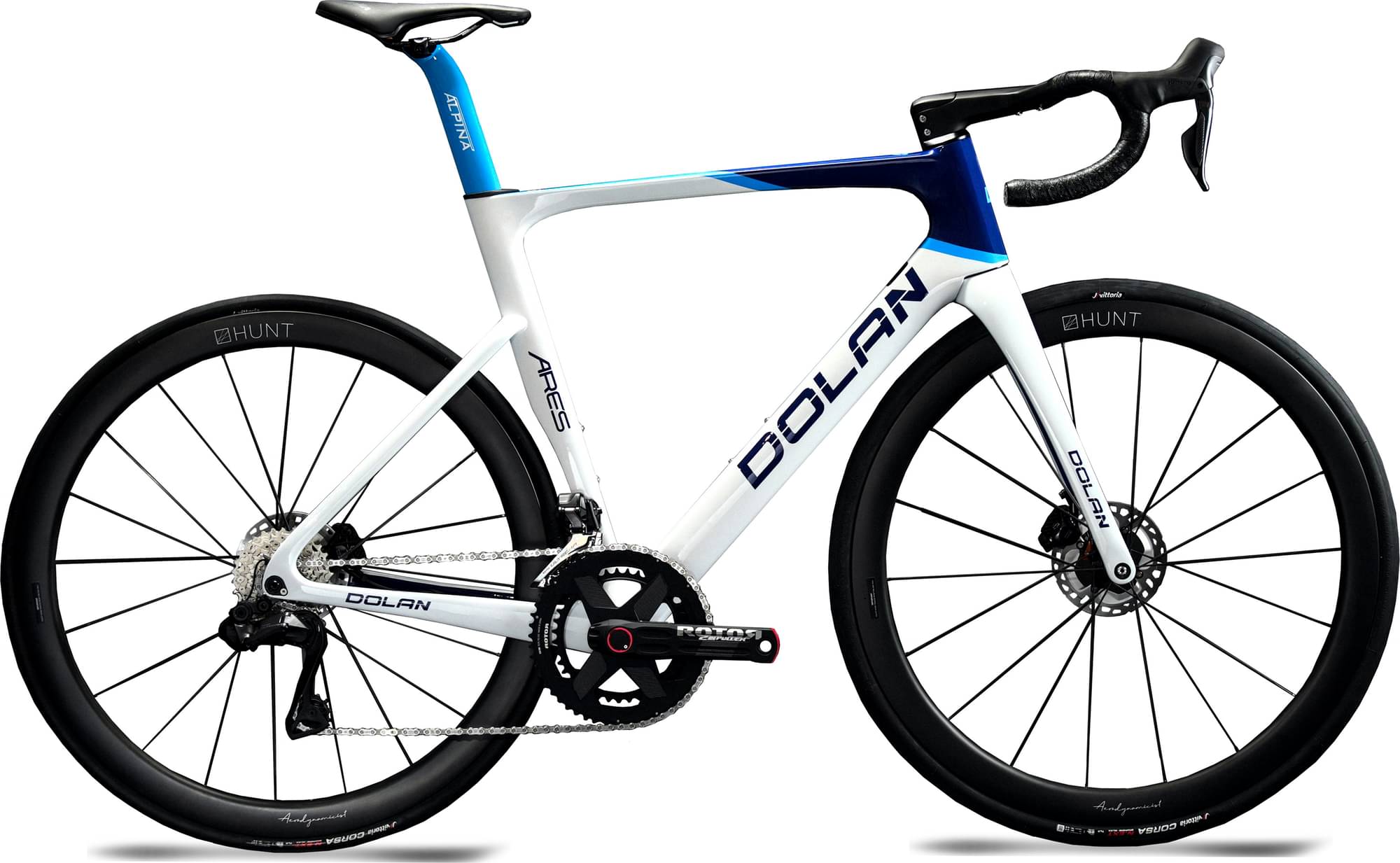

dolan Ares AT85 Replica Team Road Bike – Shimano-12s-Ultegra-R8150 Di2 2023
2023 Road
Estimate price |
7,620$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ares Carbon Disc Frame - (X-SML)
Suspension Fork
Ares Disc Carbon Fork
Drivetrain
Rear Derailleur
Ultegra RD-R8150 Di2 12-SPD - 34T Rear Derailleur
Front Derailleur
Ultegra FD-R8150 Di2 Brazed-On 12-SPD - Front Derailleur
Cassette
Ultegra CS R8100 12spd Cassette - 11/30
Crank
Ultegra R8100 Chainset - 170mm - 50/34
Bottom Bracket
Press Fit
Chain
Shimano CN-M8100 XT/Ultegra Chain 12 Speed (With Quick Link)
Pedals
None-Fitted
Wheels
Rims
Hunt 44 UD Carbon Spoke Disc Wheelset
Tires
Vittoria Corsa N.EXT 700x28 Foldable Tyre
Brakes
Brakes
Shimano Ultegra BR-R8170 Flat Mount Disc Brake Calipers
Cockpit
Stem
Alpina Onepiece Carbon Road Stem - 9cm
Handlebar
Alpina Onepiece Carbon Road (38cm - Centre-Centre) Handlebars
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Ares Disc Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.4 mm | 1.44 mm | 1.45 mm | 1.48 mm |
| Stack | 520 mm | 532 mm | 554 mm | 574 mm | 598 mm |
| Reach | 374 mm | 380 mm | 384 mm | 395 mm | 403 mm |
| Top Tube Length | 512 mm | 532 mm | 542 mm | 564 mm | 579 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 105 mm | 115 mm | 135 mm | 155 mm | 180 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Ares AT85 Replica Team Road Bike – Shimano-12s-Ultegra-R8150 Di2 is a Dolan Ares model. Dolan launched 22 bikes of this model so far. Take a sneak peek at all Dolan Ares bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Dolan Ares Disc Carbon Road Bike – Shimano-12s-105 R7120 2023 has a starting price of 3526$. Dolan Ares AT85 Replica Team Road Bike – Shimano-12s-Dura-Ace-R9250 Di2 2023 on the other hand is the most expensive at 9237$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Aero bikes average price
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 6926$. If we compare this with the average Aero bike cost we notice that the price is 64.47% more expensive.
Ares AT85 Replica Team Road Bike – Shimano-12s-Ultegra-R8150 Di2 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Ares AT85 Replica Team Road Bike – Shimano-12s-Ultegra-R8150 Di2 bike is equipped with the 700c carbon model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ares AT85 Replica Team Road Bike – Shimano-12s-Ultegra-R8150 Di2 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Dolan Ares AT85 Replica Team Road Bike – Shimano-12s-Ultegra-R8150 Di2 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
