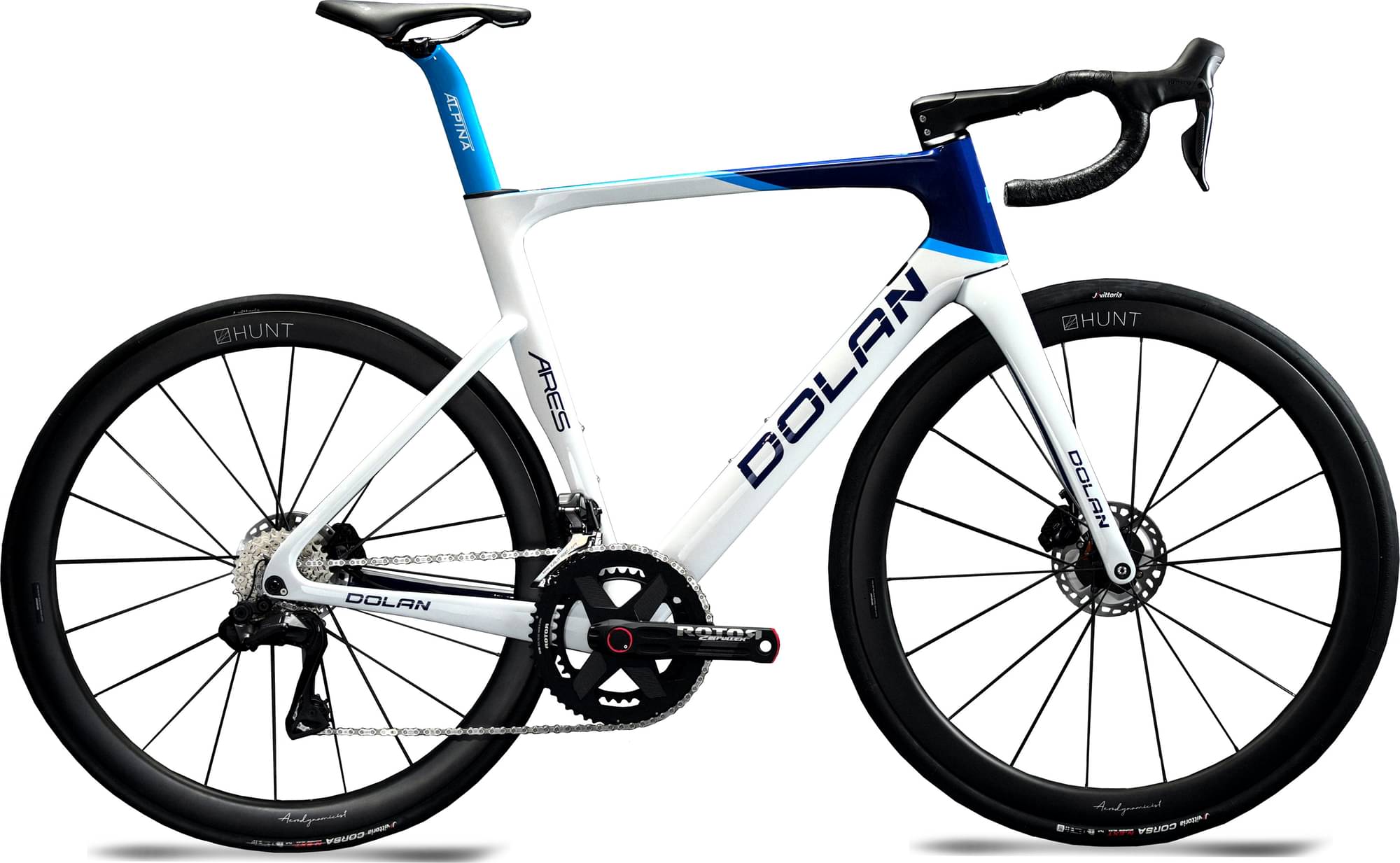

dolan Ares Carbon Road Bike – Shimano-12s-Dura-Ace-R9250 Di2 SE 2023
2023 Road
Estimate price |
10,289$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ares Carbon Disc Frame - (X-SML)
Suspension Fork
Ares Disc Carbon Fork
Drivetrain
Rear Derailleur
Dura-Ace R9250 12-SPD - Rear Derailleur
Front Derailleur
Dura-Ace R9250 Di2 Brazed-On 12-SPD - Front Derailleur
Cassette
Dura-Ace R9200 12spd Cassette - 11/30
Crank
Dura-Ace FC R9200 Chainset -170mm - 50/34
Bottom Bracket
Press Fit
Chain
Shimano CN-M8100 XT/Ultegra Chain 12 Speed (With Quick Link)
Pedals
None-Fitted
Wheels
Rims
Hunt 44 UD Carbon Spoke Disc Wheelset
Tires
Vittoria Corsa N.EXT 700x28 Foldable Tyre
Brakes
Brakes
Shimano Dura-Ace R9270 Disc Brake Calipers
Cockpit
Stem
Alpina Onepiece Carbon Road Stem - 9cm
Handlebar
Alpina Onepiece Carbon Road (38cm - Centre-Centre) Handlebars
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Ares Disc Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.4 mm | 1.44 mm | 1.45 mm | 1.48 mm |
| Stack | 520 mm | 532 mm | 554 mm | 574 mm | 598 mm |
| Reach | 374 mm | 380 mm | 384 mm | 395 mm | 403 mm |
| Top Tube Length | 512 mm | 532 mm | 542 mm | 564 mm | 579 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 105 mm | 115 mm | 135 mm | 155 mm | 180 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Ares Carbon Road Bike – Shimano-12s-Dura-Ace-R9250 Di2 SE belongs to the Dolan Ares model. Dolan launched 22 bikes of this model so far. You can easily view all of the Dolan Ares bikes models from 2023, here.
Model range prices
Dolan Ares Disc Carbon Road Bike – Shimano-12s-105 R7120 2023 is the most economical model, with a starting price of 3526$. Dolan Ares AT85 Replica Team Road Bike – Shimano-12s-Dura-Ace-R9250 Di2 2023 on the other hand costs 9237$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9237$. Comparing the average cost of an Aero bike to this one, you will see that Ares Carbon Road Bike – Shimano-12s-Dura-Ace-R9250 Di2 SE price is 119.35% higher.
Overview of components
Fork material
Ares Carbon Road Bike – Shimano-12s-Dura-Ace-R9250 Di2 SE has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Ares Carbon Road Bike – Shimano-12s-Dura-Ace-R9250 Di2 SE model has 700c carbon wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Ares Carbon Road Bike – Shimano-12s-Dura-Ace-R9250 Di2 SE has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
