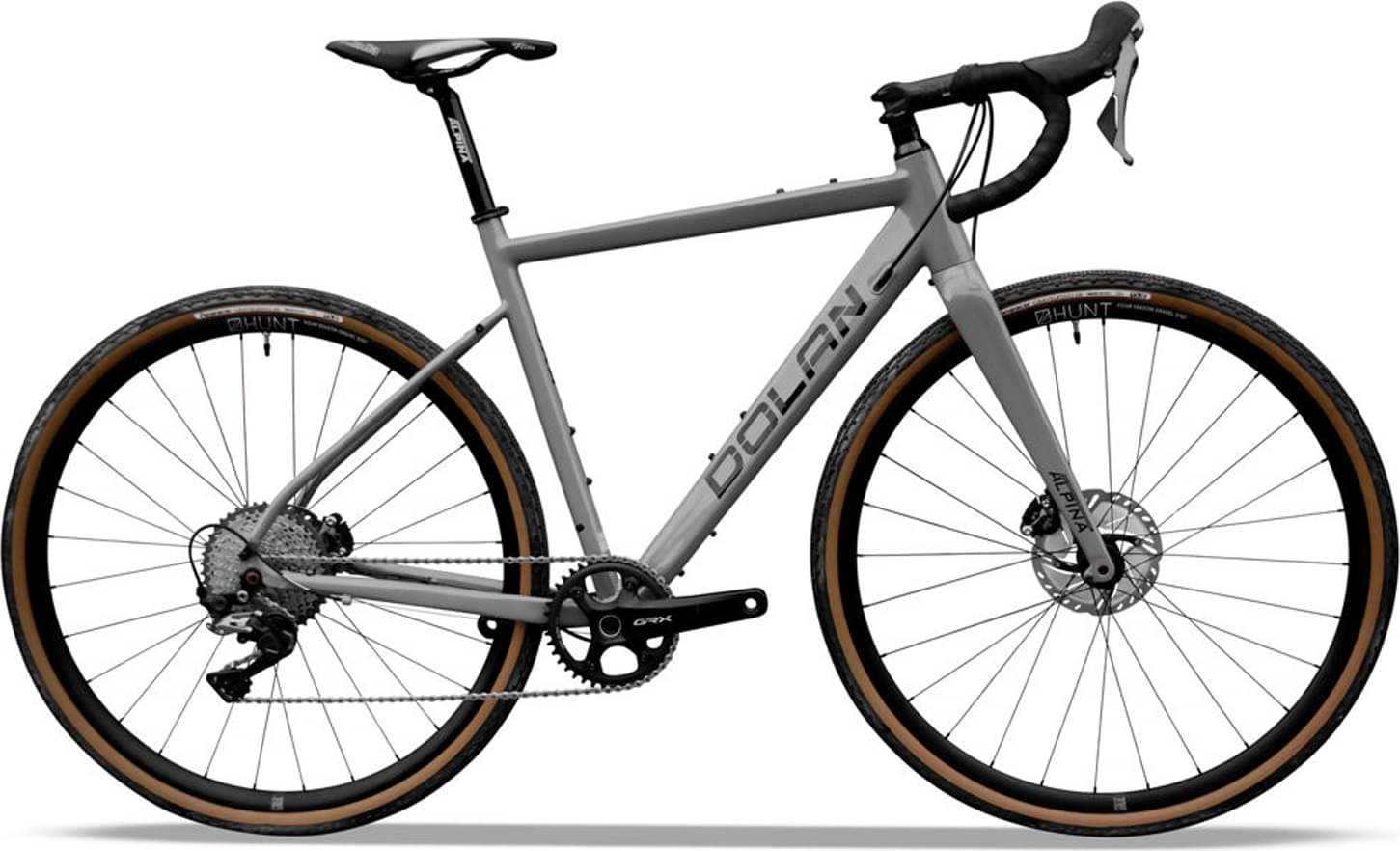

dolan GXA Aluminium Disc Gravel Bike – Shimano GRX RX810 2×11 HDR 2022
2022 Road
Estimate price |
2,979$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
GXA Gravel Frame - Battleship Grey - (49cm X-SML)
Suspension Fork
Dolan GXA Carbon Gravel Adventure Fork (3-Bolt), +£99.98
Drivetrain
Rear Derailleur
GRX RD-RX810 - (34T) Rear Derailleur
Front Derailleur
GRX FD-RX810-F Front Derailleur
Shift Levers
Shimano GRX ST-RX810 HDR Shift Levers
Cassette
Ultegra R8000 11 Speed Cassette - 11/30
Crank
GRX RX810 2x11 Chainset-170mm 48/31T
Bottom Bracket
Tthreaded
Chain
KMC X11 11spd Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Allroad Disc Wheelset
Tires
Continental Ultra Sport III Rigid Clincher 700x28c Tyre
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Deda Zero (7cm) Stem
Handlebar
Deda Zero RHM Black on Black (Alloy) Handlebars (42cm - Outside-Outside)
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Alpina 27.2mm Aluminium Seatpost (350mm Setback)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.58 mm | 1.54 mm |
| Stack | 546 mm | 565 mm | 577 mm | 597 mm | 614 mm | 629 mm |
| Reach | 371 mm | 375 mm | 376 mm | 385 mm | 388 mm | 409.2 mm |
| Top Tube Length | 530 mm | 540 mm | 550 mm | 565 mm | 580 mm | 600 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 72.5 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
GXA Aluminium Disc Gravel Bike – Shimano GRX RX810 2×11 HDR belongs to the Dolan Gxa model. 23 bikes variations carry this model name so far. Take a sneak peek at all Dolan Gxa bikes models from 2022, by clicking here.
Model range prices
Dolan GXA Aluminium Disc Gravel Bike – Shimano 105 R7020 HDR 2022 is the cheapest bike model and costs 1945$. Dolan GXA Aluminium Disc Gravel Bike – Shimano GRX RX815 DI2 2×11 HDR 2022 is the most expensive one and costs 4135$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 2675$. Comparing this to the average Gravel bike price, we see that the price is 8.65% higher.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Dolan GXA Aluminium Disc Gravel Bike – Shimano GRX RX810 2×11 HDR 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The GXA Aluminium Disc Gravel Bike – Shimano GRX RX810 2×11 HDR comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
GXA Aluminium Disc Gravel Bike – Shimano GRX RX810 2×11 HDR comes in 6 sizes, that range from 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
