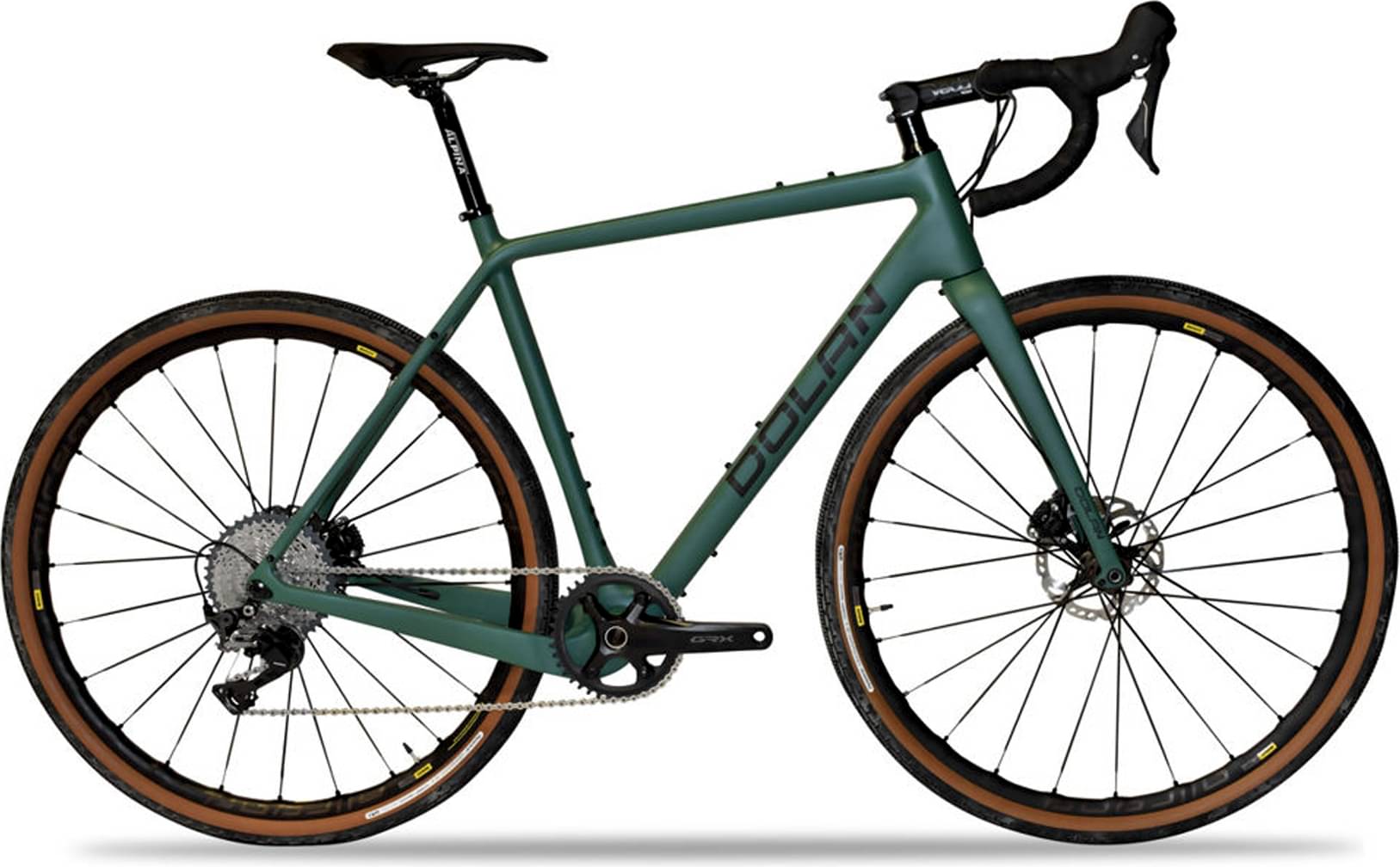

dolan GXC Carbon Disc Gravel Bike – Shimano GRX 2×11 RX815 Di2 HDR 2023
2023 Road
Estimate price |
5,084$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX Di2, GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dolan GXC Carbon Gravel Frame(X-SML)
Suspension Fork
Alpina Carbon Disc Fork
Drivetrain
Rear Derailleur
GRX RD-RX815-DI2 - (34T) Rear Derailleur
Front Derailleur
GRX RX815 DI2 Front Derailleur
Shift Levers
Shimano GRX RX815 DI2 2x11 Speed Shift Levers
Cassette
Ultegra R8000 11 Speed Cassette - 11/30
Crank
GRX RX810 2x11 Chainset-170mm 48/31T
Chain
KMC X11 11spd Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Allroad Disc Wheelset
Tires
Continental Ultra Sport III Rigid Clincher 700x28c Tyre
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Deda Zero (7cm) Stem
Handlebar
Deda Zero RHM Black on Black (Alloy) Handlebars (42cm - Outside-Outside)
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Alpina 27.2mm Aluminium Seatpost (350mm Setback)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.58 mm | 1.54 mm |
| Stack | 546 mm | 565 mm | 577 mm | 597 mm | 614 mm | 629 mm |
| Reach | 371 mm | 375 mm | 376 mm | 385 mm | 388 mm | 409.2 mm |
| Top Tube Length | 530 mm | 540 mm | 550 mm | 565 mm | 580 mm | 600 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 72.5 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model
GXC Carbon Disc Gravel Bike – Shimano GRX 2×11 RX815 Di2 HDR is part of the Dolan Gxc model. Dolan released 27 bikes variations of this model so far. Take a sneak peek at all Dolan Gxc bikes models from 2023, by clicking here.
Model range prices
Dolan GXC Carbon Disc Gravel Bike – Shimano 105 R7020 HDR 2023 is the cheapest bike model and costs 2432$. Dolan GXC Carbon Disc Gravel Bike – Shimano GRX 2×11 RX815 Di2 SE 2023 is the most expensive one and costs 6038$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Dolan released this model in 2023, its price was 4621$. In conclusion, this bike price is 87.69% more expensive than the price of the average Gravel bike.
GXC Carbon Disc Gravel Bike – Shimano GRX 2×11 RX815 Di2 HDR components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the GXC Carbon Disc Gravel Bike – Shimano GRX 2×11 RX815 Di2 HDR bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The GXC Carbon Disc Gravel Bike – Shimano GRX 2×11 RX815 Di2 HDR has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 6 sizes. They vary from 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, you can easily find one that suits you.
