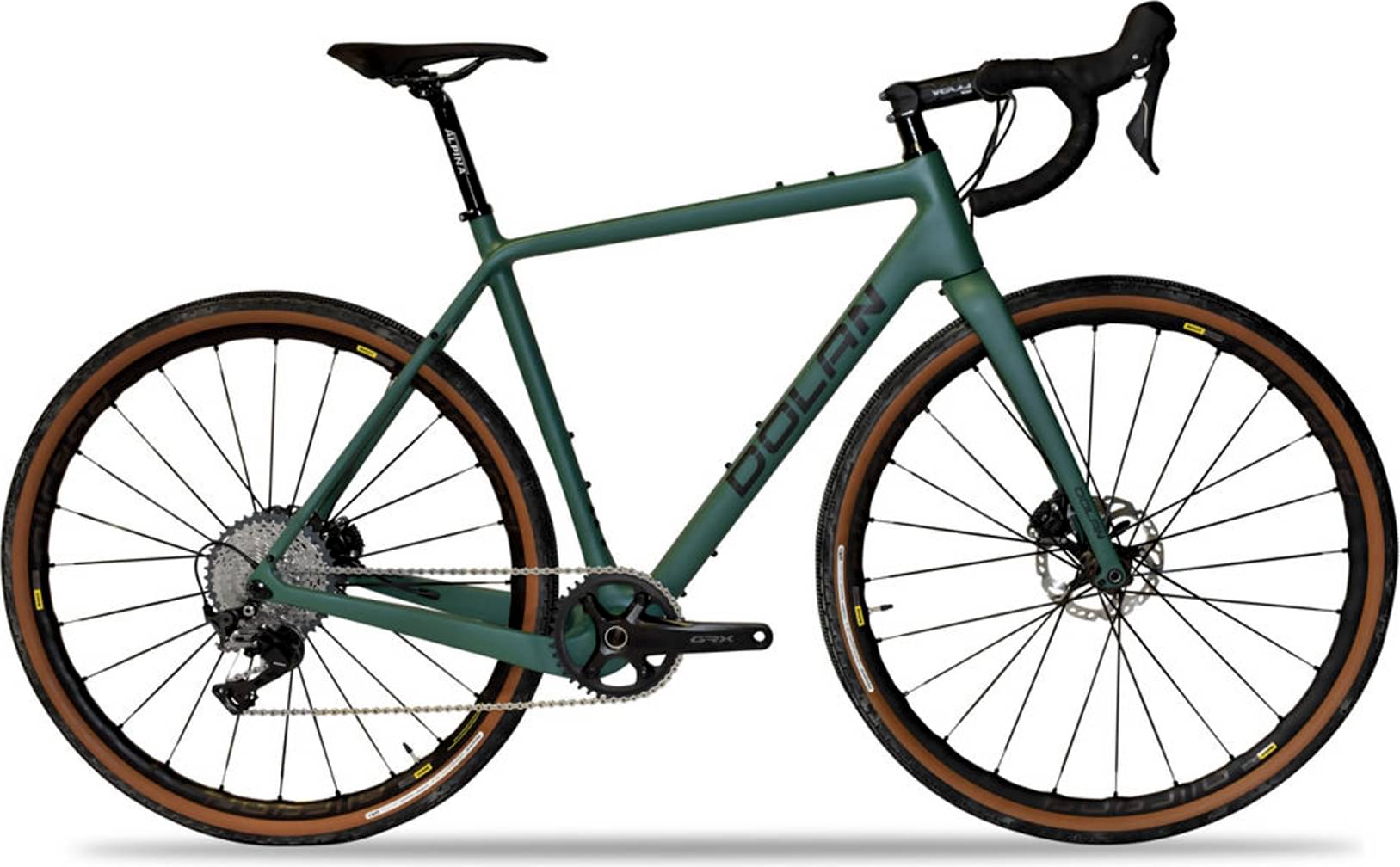

dolan GXC Carbon Disc Gravel Bike – Shimano Ultegra R8020 HDR 2023
2023 Road
Estimate price |
3,210$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
SM
162cm - 172cm
MD
172cm - 180cm
LG
177cm - 187cm
XL
185cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dolan GXC Carbon Gravel Frame(X-SML)
Suspension Fork
Alpina Carbon Disc Fork
Drivetrain
Rear Derailleur
Ultegra RD-R8000 11-SPD - 34T - Rear Derailleur
Front Derailleur
Ultegra FD-R8000 11-SPD Brazed-On - Front Derailleur
Shift Levers
Shimano Ultegra ST-R8020-Shift-Levers
Cassette
Ultegra R8000 11 Speed Cassette - 11/28
Crank
Ultegra R8000 Chainset - 170mm-50/34
Bottom Bracket
BB86
Chain
KMC X11 11spd Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Allroad Disc Wheelset
Tires
Continental Ultra Sport III Rigid Clincher 700x28c Tyre
Brakes
Brakes
Shimano Ultegra BR-R8070-Brake-Calipers
Cockpit
Stem
Deda Zero (7cm) Stem
Handlebar
Deda Zero RHM Black on Black (Alloy) Handlebars (42cm - Outside-Outside)
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Alpina 27.2mm Aluminium Seatpost (350mm Setback)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.58 mm | 1.54 mm |
| Stack | 546 mm | 565 mm | 577 mm | 597 mm | 614 mm | 629 mm |
| Reach | 371 mm | 375 mm | 376 mm | 385 mm | 388 mm | 409.2 mm |
| Top Tube Length | 530 mm | 540 mm | 550 mm | 565 mm | 580 mm | 600 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 72.5 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 162 cm | 172 cm | 177 cm | 185 cm | cm |
| Rider Max Height | 172 cm | 172 cm | 180 cm | 187 cm | 192 cm | cm |
Model Overview
GXC Carbon Disc Gravel Bike – Shimano Ultegra R8020 HDR completes the Dolan Gxc model. Dolan launched 27 bikes of this model so far. You can easily view all of the Dolan Gxc bikes models from 2023, here.
Model range prices
Dolan GXC Carbon Disc Gravel Bike – Shimano 105 R7020 HDR 2023 is the cheapest bike model and costs 2432$. Dolan GXC Carbon Disc Gravel Bike – Shimano GRX 2×11 RX815 Di2 SE 2023 is the most expensive one and costs 6038$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2918$. If we compare this with the average Gravel bike cost we notice that the price is 18.52% higher.
Overview of components
Fork material
GXC Carbon Disc Gravel Bike – Shimano Ultegra R8020 HDR has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Dolan GXC Carbon Disc Gravel Bike – Shimano Ultegra R8020 HDR 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The GXC Carbon Disc Gravel Bike – Shimano Ultegra R8020 HDR comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
