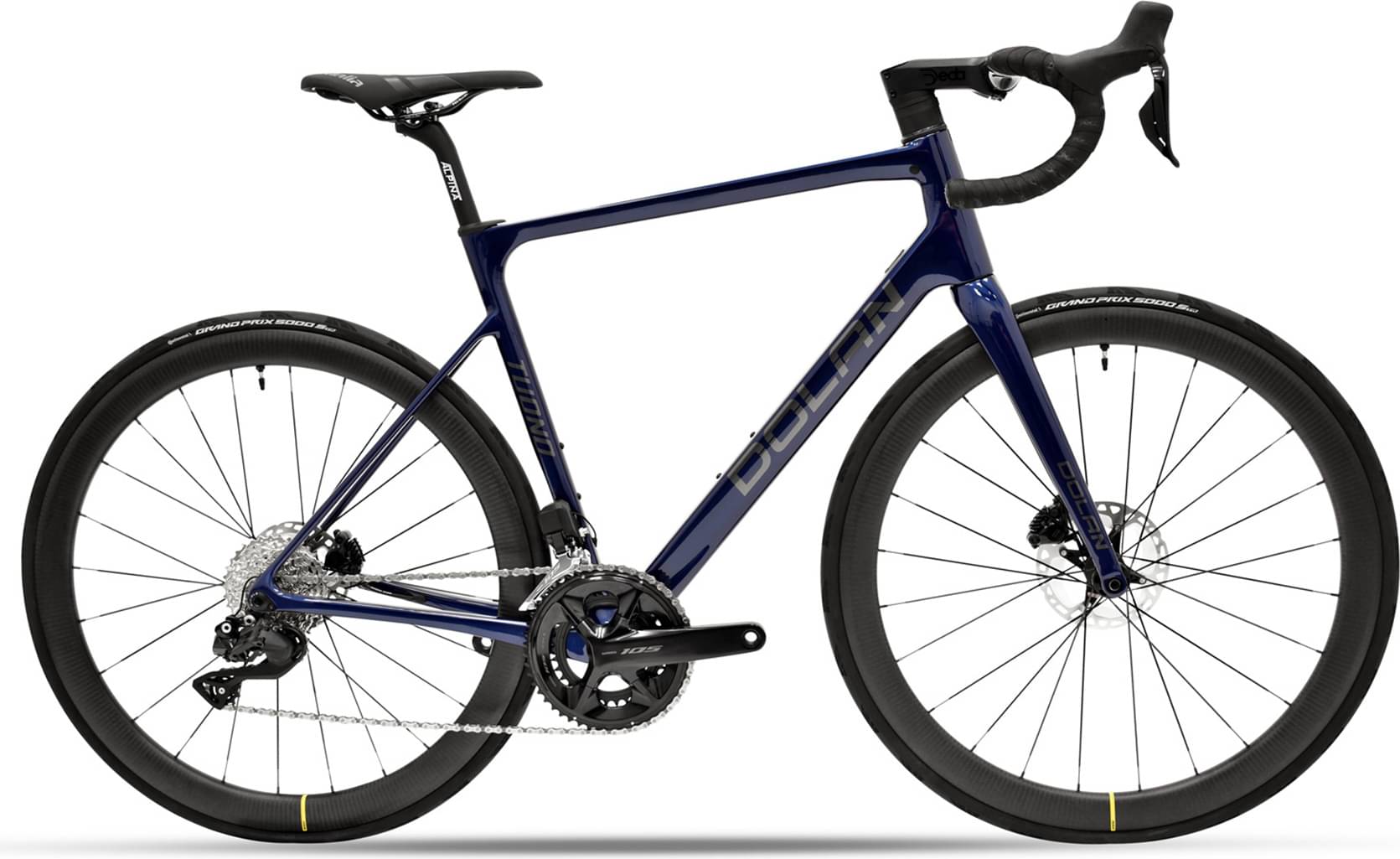

dolan Tuono Carbon Disc Road Bike – Shimano-12s-105 R7170 Di2 2022
2022 Road
Estimate price |
3,996$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tuono Disc Carbon Frame - (X-SML)
Suspension Fork
Tuono Disc Carbon Fork
Drivetrain
Rear Derailleur
105 R7150 Di2 12s Rear Derailleur
Front Derailleur
105 R7150 Di2 Brazed-On 12s Front Derailleur
Cassette
Shimano 105 R7100 12Spd Cassette - 11/34
Crank
105-R7100 12s Chainset - 170mm 50/34T
Bottom Bracket
Press Fit
Chain
Shimano CN-M6100 114 LINKS 12SPD Quick-Link Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Aksium Disc Wheelset
Tires
Continental Ultra Sport III Rigid Clincher 700x25c Tyre
Brakes
Brakes
Shimano 105 BR-R7170F / BR-R7170R Front/Rear Disc Brake Calipers
Cockpit
Stem
Deda Vinci (Alloy) DCR Stem (9cm)
Handlebar
Deda RHM Superzero (Alloy) (40cm - Outside-Outside) Handlebars
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Tuono Disc Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.56 mm |
| Front Center | 585.9 mm | 587.6 mm | 594.5 mm | 594.5 mm | 608.8 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 527.8 mm | 548.1 mm | 567.1 mm | 585.6 mm | 606.6 mm |
| Reach | 367.2 mm | 370.5 mm | 376.8 mm | 381 mm | 388.9 mm |
| Top Tube Length | 512 mm | 526 mm | 542 mm | 556 mm | 576 mm |
| Seat Tube Angle | 74.8 ° | 74.3 ° | 73.9 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 70.8 ° | 71.7 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 138 mm | 157 mm | 172 mm | 195 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 985 mm | 987 mm | 994 mm | 994 mm | 1008 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Tuono Carbon Disc Road Bike – Shimano-12s-105 R7170 Di2 is a Dolan Tuono model. 15 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Dolan Tuono Carbon Disc Road Bike – Shimano 105 R7020 2022 is the most affordable bike of this model and has a price of 2736$. On the other hand, Dolan Tuono Carbon Disc Road Bike – Shimano Dura-Ace R89270 Di2 12SPD 2022, is the most expensive and costs 7115$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Dolan released this model in 2022, its price was 3587$. Doing a quick comparison, we notice that Tuono Carbon Disc Road Bike – Shimano-12s-105 R7170 Di2 price is 52.9% more expensive than the average cost of an Endurance bike.
Overview of components
Fork material
Tuono Carbon Disc Road Bike – Shimano-12s-105 R7170 Di2 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Tuono Carbon Disc Road Bike – Shimano-12s-105 R7170 Di2 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Dolan Tuono Carbon Disc Road Bike – Shimano-12s-105 R7170 Di2 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
