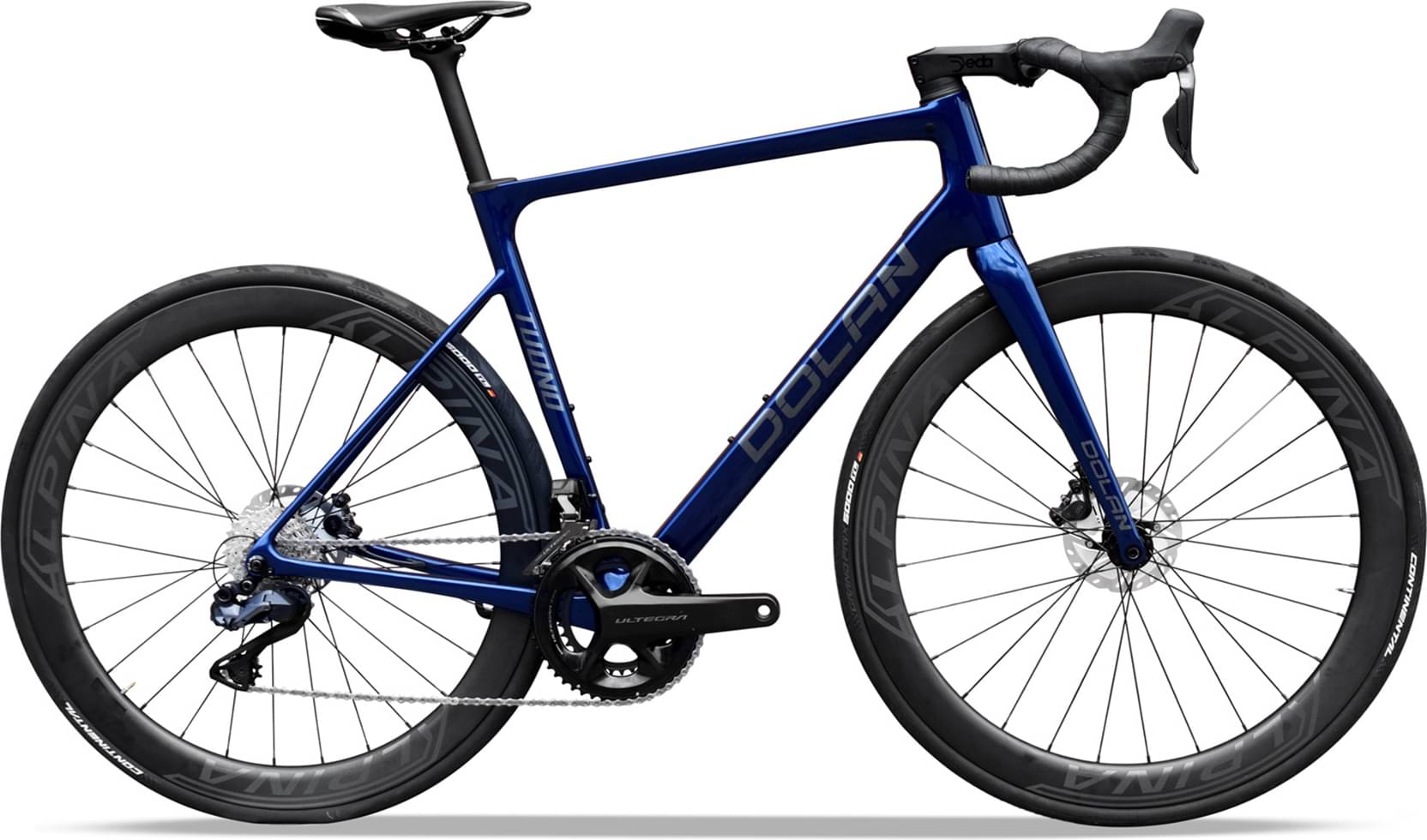

dolan Tuono Carbon Disc Road Bike – Shimano Ultegra R8020 2022
2022 Road
Estimate price |
3,589$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 160cm
SM
162cm - 170cm
MD
172cm - 177cm
LG
180cm - 185cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tuono Disc Carbon Frame - (X-SML)
Suspension Fork
Tuono Disc Carbon Fork
Drivetrain
Rear Derailleur
Ultegra RD-R8000 11-SPD - 34T - Rear Derailleur
Front Derailleur
Ultegra FD-R8000 11-SPD Brazed-On - Front Derailleur
Shift Levers
Shimano Ultegra ST-R8020-Shift-Levers
Cassette
Ultegra R8000 11 Speed Cassette - 11/28
Crank
Ultegra R8000 Chainset - 170mm-50/34
Bottom Bracket
Press Fit
Chain
KMC X11 11spd Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Aksium Disc Wheelset
Tires
Continental Ultra Sport III Rigid Clincher 700x25c Tyre
Brakes
Brakes
Shimano Ultegra BR-R8070-Brake-Calipers
Cockpit
Stem
Deda Superbox Stem - (9cm)
Handlebar
Deda RHM Superzero (Alloy) (40cm - Outside-Outside) Handlebars
Seat
Saddle
Selle Italia Model X SuperFlow Saddle - Black
Seatpost
Tuono Disc Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.56 mm |
| Front Center | 585.9 mm | 587.6 mm | 594.5 mm | 594.5 mm | 608.8 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 527.8 mm | 548.1 mm | 567.1 mm | 585.6 mm | 606.6 mm |
| Reach | 367.2 mm | 370.5 mm | 376.8 mm | 381 mm | 388.9 mm |
| Top Tube Length | 512 mm | 526 mm | 542 mm | 556 mm | 576 mm |
| Seat Tube Angle | 74.8 ° | 74.3 ° | 73.9 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 70.8 ° | 71.7 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 138 mm | 157 mm | 172 mm | 195 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 985 mm | 987 mm | 994 mm | 994 mm | 1008 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 172 cm | 180 cm | 188 cm |
| Rider Max Height | 160 cm | 170 cm | 177 cm | 185 cm | 195 cm |
Model Overview
Tuono Carbon Disc Road Bike – Shimano Ultegra R8020 completes the Dolan Tuono model. 15 bikes variations carry this model name so far. Take a sneak peek at all Dolan Tuono bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Dolan Tuono Carbon Disc Road Bike – Shimano 105 R7020 2022 has a starting price of 2736$. Dolan Tuono Carbon Disc Road Bike – Shimano Dura-Ace R89270 Di2 12SPD 2022 on the other hand is the most expensive at 7115$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 3222$. Comparing the average cost of an Endurance bike to this one, you will see that Tuono Carbon Disc Road Bike – Shimano Ultegra R8020 price is 37.34% more expensive.
Tuono Carbon Disc Road Bike – Shimano Ultegra R8020 components
Fork material
Tuono Carbon Disc Road Bike – Shimano Ultegra R8020 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Dolan Tuono Carbon Disc Road Bike – Shimano Ultegra R8020 2022, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Tuono Carbon Disc Road Bike – Shimano Ultegra R8020 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Tuono Carbon Disc Road Bike – Shimano Ultegra R8020 comes in 5 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
