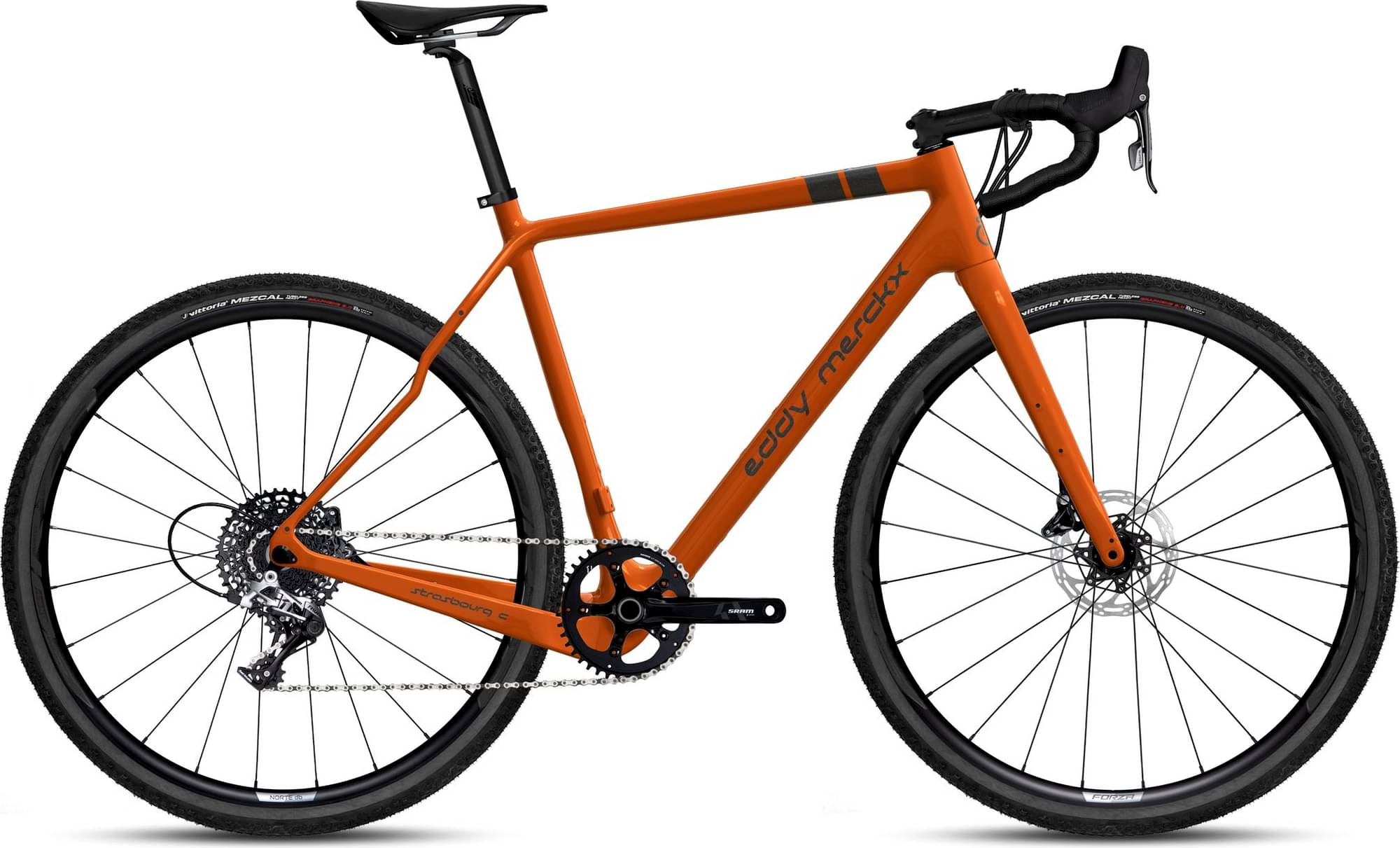

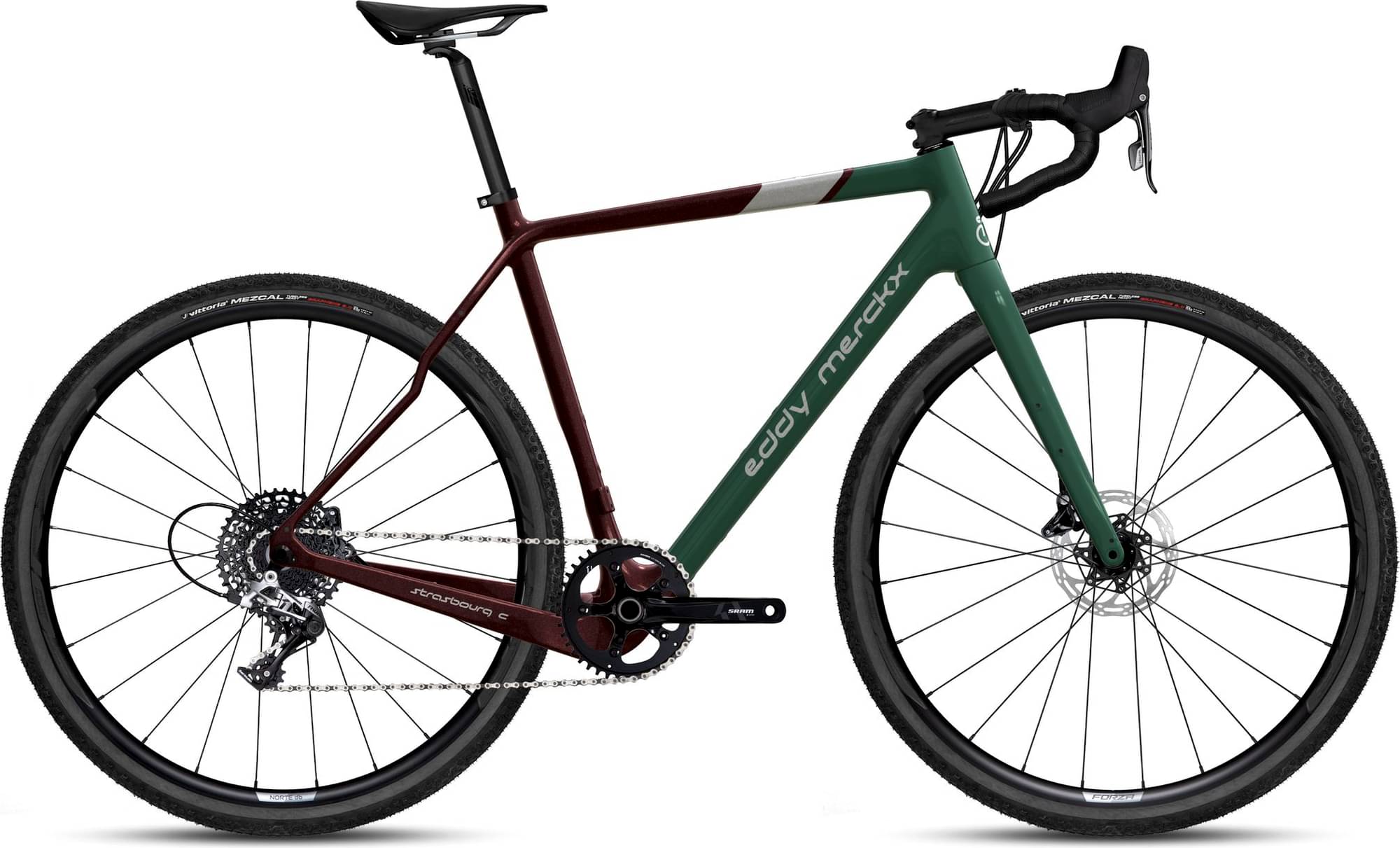

Eddy Merckx Strasbourg Carbon Sram Rival 1x11sp 2023
2023 Road
Estimate price |
3,489$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival, SRAM -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Strasbourg C 7E7/size M/SBC01As
Suspension Fork
4ZA Oryx Disc 12TA 7E7/SBC01As
Drivetrain
Rear Derailleur
SRAM Rival1 // Long Cage
Cassette
SRAM PG-1130 // 11s // 11-42
Crank
SRAM S350 // 172,5 // 42
Pedals
Not included **
Wheels
Rims
Front: Forza Norte Gravel DB // TA 12x100mm // Tubeless Ready // Forza 3 Beaufort // 24mm Internal Width // 25mm Deep, Rear: Forza Norte Gravel DB // Shimano-Campagnolo-XDR // TA 12x142mm // Tubeless Ready // Forza 3 Beaufort // 24mm Internal Width // 25mm Deep
Tires
Vittoria Mezcal TNT // 700x44c // Folding-TLR // Anthracite-Black-Black
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Forza Stratos // 110 mm // Black Glossy
Handlebar
Ritchey Venture Max II // 440 mm
Seat
Saddle
Selle Italia Model X // Black
Seatpost
Forza Cirrus // Carbon-Alloy // 10mm Offset // 350mm // 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.54 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 595 mm | 600 mm | 600 mm | 612 mm | 627 mm |
| Rake | 51 mm | 55 mm | 50 mm | 51 mm | 51 mm |
| Trail | 69 mm | 59 mm | 64 mm | 60 mm | 60 mm |
| Stack | 542 mm | 562 mm | 573 mm | 595 mm | 614 mm |
| Reach | 376 mm | 380 mm | 381 mm | 390 mm | 399 mm |
| Top Tube Length | 525 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1025 mm | 1030 mm | 1030 mm | 1042 mm | 1057 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 764 mm | 791 mm | 808 mm | 828 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Strasbourg Carbon Sram Rival 1x11sp is part of the Eddymerckx Strasbourg model. There are 7 bikes that carry this model name. Take a sneak peek at all Eddymerckx Strasbourg bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Eddy Merckx Strasbourg Steel Sram Apex1 1×11 2023 has a starting price of 1910$. Eddy Merckx Strasbourg Carbon Shimano GRX800 DI2 1x11sp 2023 on the other hand is the most expensive at 4512$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Eddy Merckx Strasbourg Carbon Sram Rival 1x11sp price was 3184$. Comparing this to the average Gravel bike price, we see that the price is 29.33% higher.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Strasbourg Carbon Sram Rival 1x11sp model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
