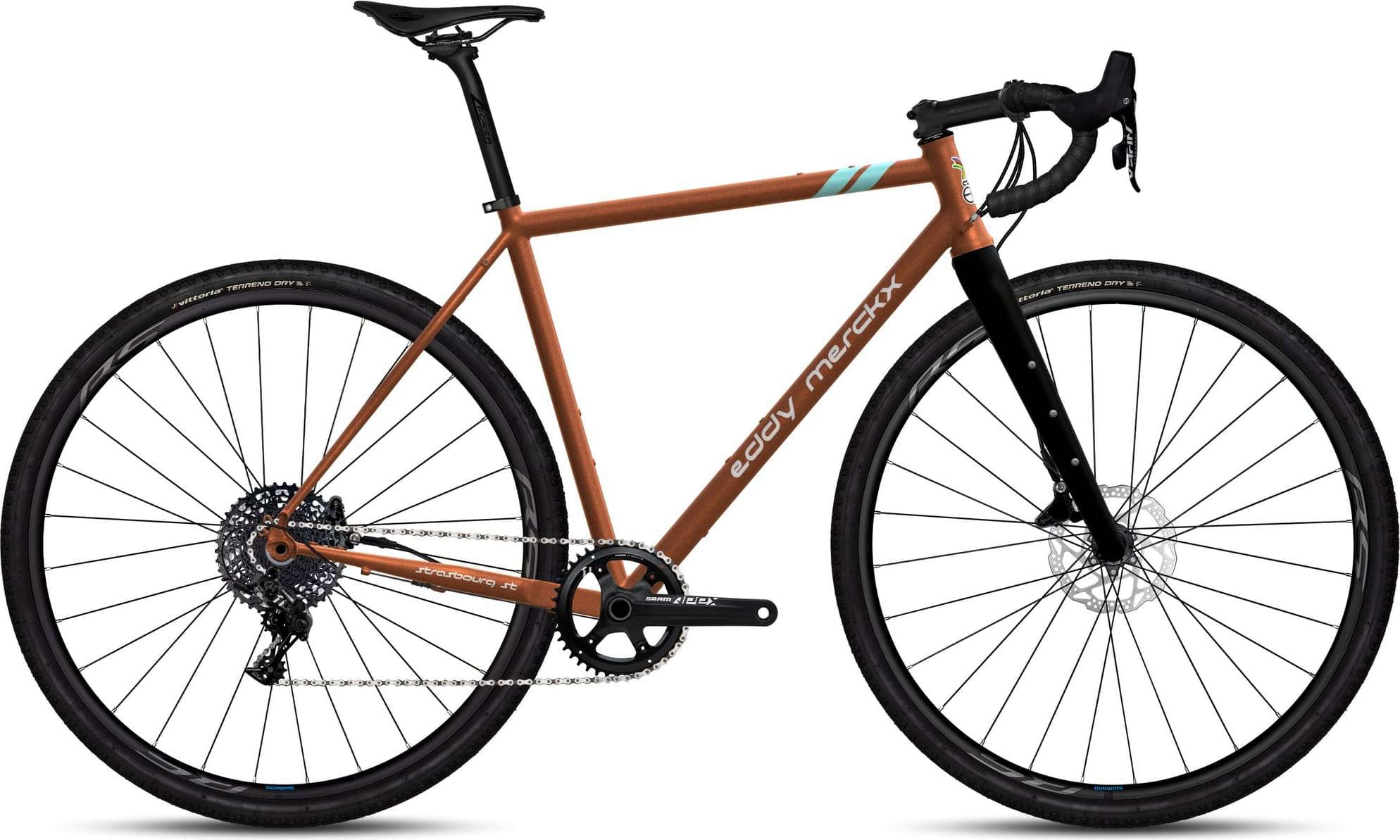

Eddy Merckx Strasbourg Steel Sram Apex XPLR 1x12sp 2023
2023 Road
Estimate price |
2,063$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Apex XPLR -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

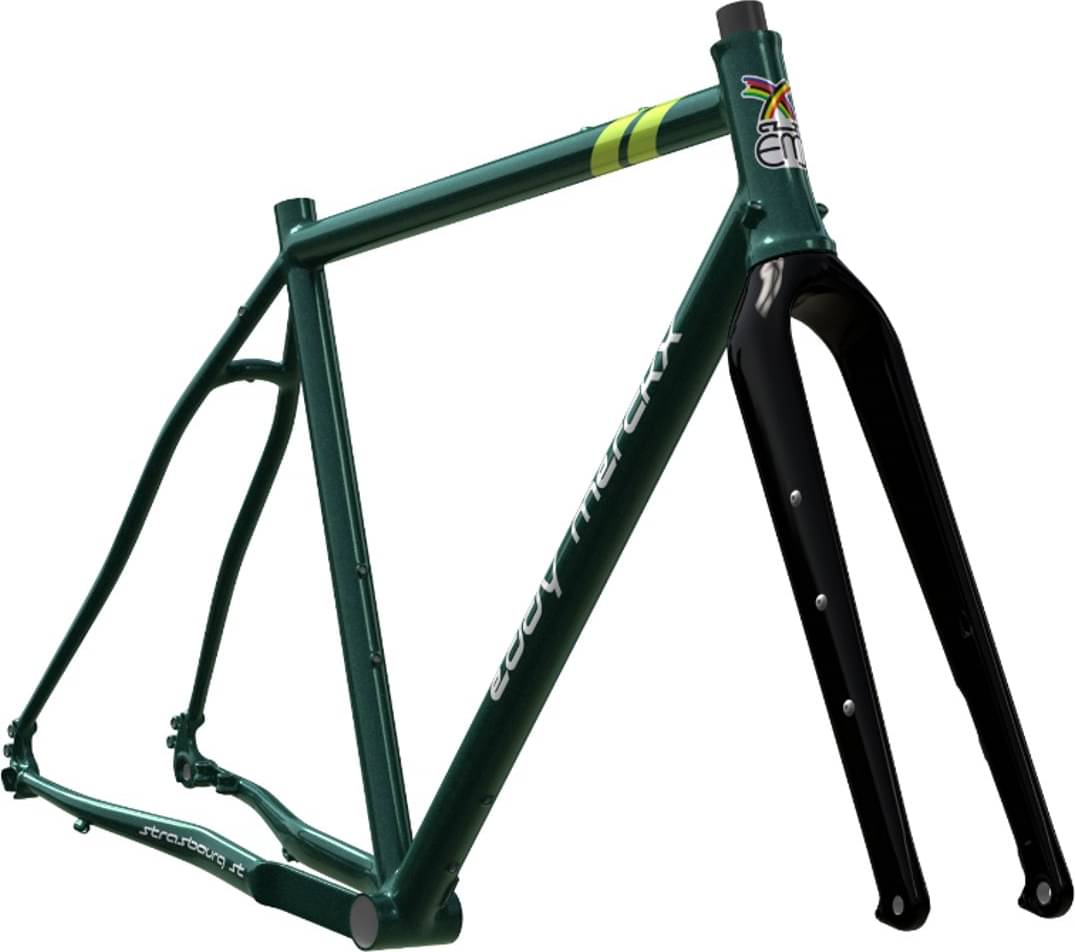

Strasbourg Steel 7E7/size M/SBS01Am
Suspension Fork

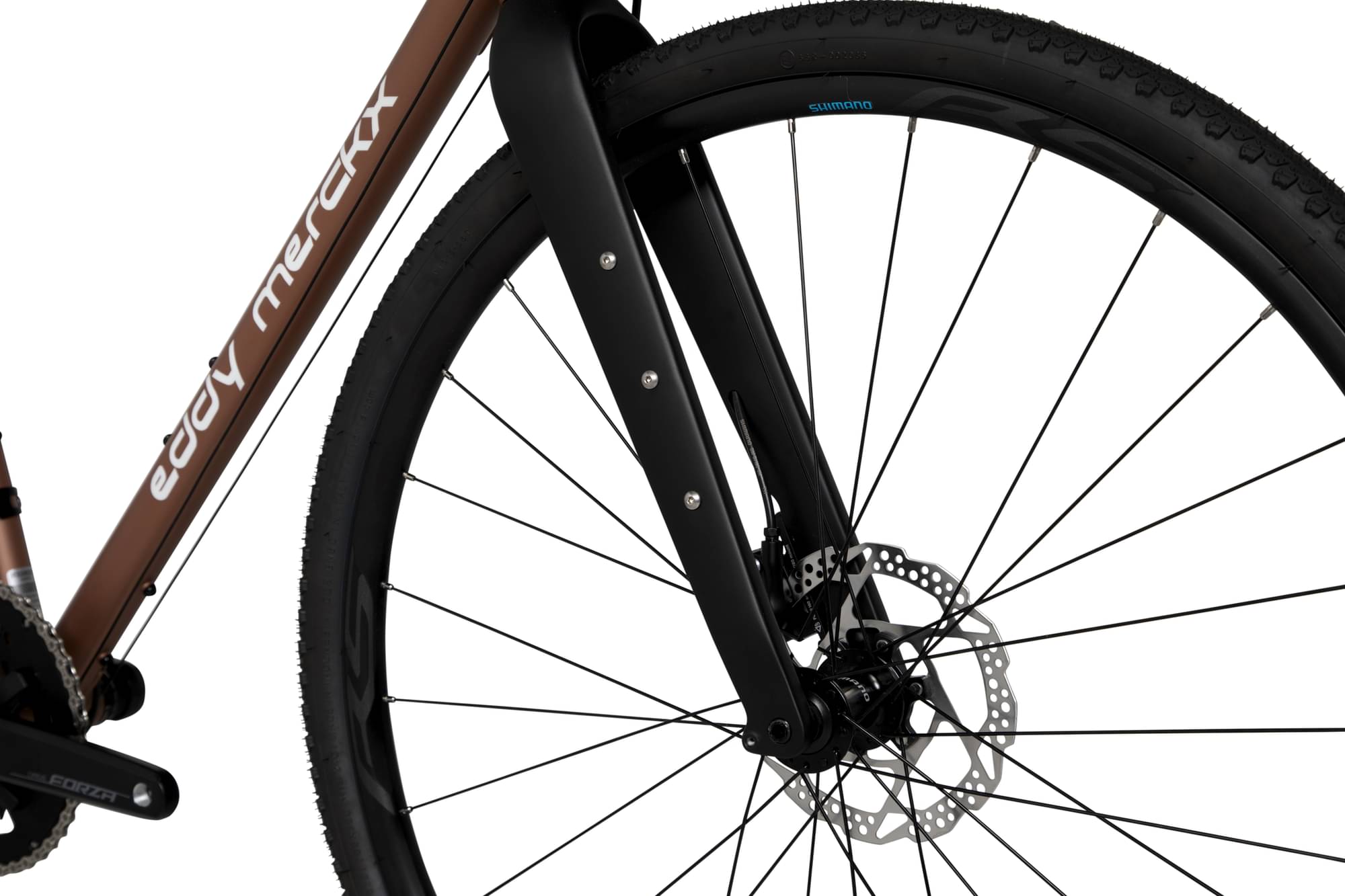

Forza Oryx Disc, TA 12x100 mm, Hidden Fender Mounts
Drivetrain
Rear Derailleur
SRAM Apex 1x12 XPLR Rear Derailleur
Cassette
SRAM XPLR PG-1231 12s 11-44T
Crank
SRAM Apex 1x12 // 42T // 172mm
Pedals
Not included **
Wheels
Rims
Shimano RS171 DB // Shimano 11s // Clincher
Tires
Vittoria Terreno Dry // 700x38c
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Forza Stratos // 100 mm // Black Glossy
Handlebar
4ZA Stratos Gravel 420/480
Seat
Saddle
Selle San Marco Shortfit Wide
Seatpost
Forza Stratos // 15mm Offset // 350mm // 27,2mm // Black Glossy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.5 mm | 1.54 mm | 1.55 mm |
| Bottom Bracket Height | 277 mm | 279 mm | 276 mm | 278 mm | 278 mm |
| Front Center | 589 mm | 595 mm | 601 mm | 616 mm | 632 mm |
| Rake | 50 mm | 50 mm | 52 mm | 50 mm | 50 mm |
| Trail | 67 mm | 64 mm | 59 mm | 61 mm | 61 mm |
| Stack | 535 mm | 554 mm | 574 mm | 599 mm | 618 mm |
| Reach | 374 mm | 379 mm | 382 mm | 390 mm | 400 mm |
| Top Tube Length | 527 mm | 537 mm | 552 mm | 567 mm | 582 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 495 mm | 520 mm | 545 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 105 mm | 125 mm | 145 mm | 170 mm | 190 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1005 mm | 1012 mm | 1017 mm | 1033 mm | 1049 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 73 mm | 71 mm | 71 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Strasbourg Steel Sram Apex XPLR 1x12sp is part of the Eddymerckx Strasbourg model. 13 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Eddy Merckx Strasbourg Steel Sram Apex1 1×11 2023 is the most affordable bike of this model and has a price of 1905$. On the other hand, Eddy Merckx Strasbourg Carbon Shimano GRX800 DI2 1x11sp 2023, is the most expensive and costs 4499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 1905$. Comparing the average cost of a Gravel bike to this one, you will see that Strasbourg Steel Sram Apex XPLR 1x12sp price is 29.24% lower.
Overview of components
Wheels size
The wheels on Strasbourg Steel Sram Apex XPLR 1x12sp are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Strasbourg Steel Sram Apex XPLR 1x12sp comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
