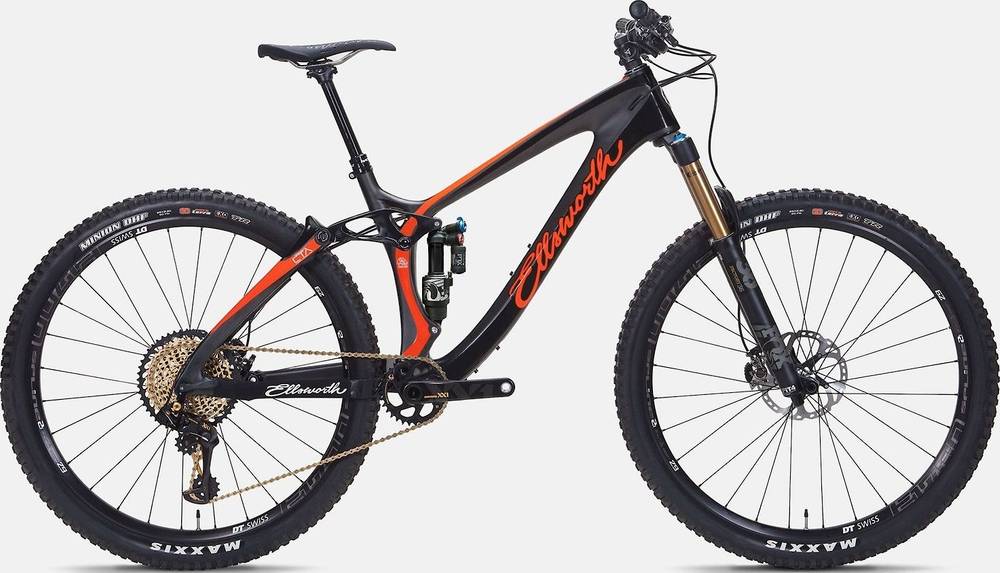

Ellsworth Evolution Convert 27.5″+ Shimano XT 2018
2018 Mountain
Estimate price |
8,420$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Factory 36 Series
Rear Shock
FOX Performance X2
Drivetrain
Rear Derailleur
Shimano XT 8000
Front Derailleur
N/A
Shift Levers
Shimano XT 8000, 11-speed
Cassette
Shimano XT, 11-46 tooth, 11-speed
Crank
Shimano XT 8000, Boost, 175mm length
Bottom Bracket
Shimano BSA, threaded
Chain
Shimano HG-700
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1700
Rear Hub
DT Swiss M1700
Rims
DT Swiss M1700, 35mm, Optional wheelset upgrade: Reynolds 29 Trail
Spokes
DT Swiss
Tires
Maxxis Minion DHF, 2.8"
Brakes
Brakes
Shimano XT 8000 with Shimano Ice-Tech 180mm rotors
Brake Levers
Shimano XT 8000
Cockpit
Stem
Race Face Turbine Basic, 35mm clamp
Handlebar
Race Face Atlas 35mm, 20mm rise
Grips
Lizard Skin Charger EHB
Headset
Cane Creek 10 Series, ZS44/56
Seat
Saddle
WTB Volt Pro
Seatpost
FOX Transfer Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.32 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Stack | 607 mm | 623 mm | 640 mm |
| Reach | 424 mm | 453 mm | 484 mm |
| Top Tube Length | 594 mm | 636 mm | 678 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 129 mm | 143 mm | 157 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1188 mm | 1224 mm | 1259 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm |
| Standover Height | 737 mm | 746 mm | 754 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
Evolution Convert 27.5″+ Shimano XT is part of the Ellsworth Evolution model. Ellsworth launched 10 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Ellsworth Evolution Convert 29″ SRAM GX Eagle 2018 is the most affordable bike of this model and has a price of 7425$. On the other hand, Ellsworth Evolution Convert 27.5″+ SRAM XX1 Eagle 2018, is the most expensive and costs 9924$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Ellsworth Evolution Convert 27.5″+ Shimano XT price was 8420$. In conclusion, this bike price is 204.85% more expensive than the price of the average Trail bike.
Evolution Convert 27.5″+ Shimano XT components
Fork
The Evolution Convert 27.5″+ Shimano XT comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is FOX Performance X2, with a travel distance of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The Evolution Convert 27.5″+ Shimano XT 2018 bike is equipped with 27.5″ carbon wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Ellsworth Evolution Convert 27.5″+ Shimano XT has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Ellsworth Evolution Convert 27.5″+ Shimano XT comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
