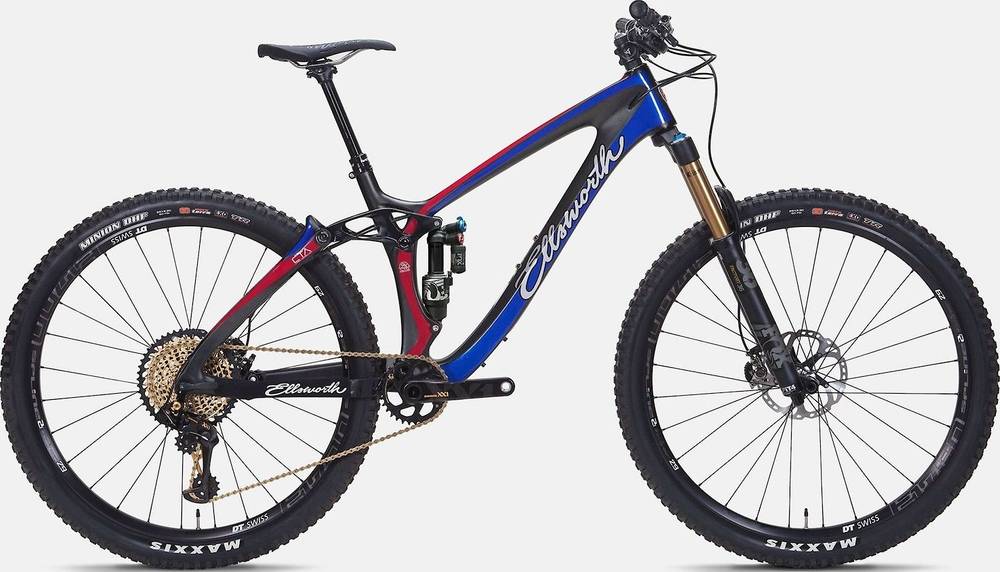

Ellsworth Evolution Convert 27.5″+ Shimano XTR 2018
2018 Mountain
Estimate price |
9,420$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Factory 36 Series
Rear Shock
FOX Performance X2
Drivetrain
Rear Derailleur
Shimano XTR 9000
Front Derailleur
N/A
Shift Levers
Shimano XTR 9000, 11-speed
Cassette
Shimano XTR, 11-42 tooth, 11-speed
Crank
Shimano XTR 9000, Boost, 175mm length
Bottom Bracket
Shimano BSA threaded
Chain
Shimano XTR 9000
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1700
Rear Hub
DT Swiss M1700
Rims
DT Swiss M1700, 35mm, Optional wheelset upgrade: Reynolds 29 Trail
Spokes
DT Swiss
Tires
Maxxis Minion DHF, 2.8"
Brakes
Brakes
Shimano XTR 9020 with Shimano Ice-Tech 180mm rotors
Brake Levers
Shimano XTR 9020
Cockpit
Stem
Race Face Turbine Basic
Handlebar
Race Face SixC Carbon 35mm, 20mm rise
Grips
Lizard Skin Charger EHB
Headset
Cane Creek 10 Series, ZS44/56
Seat
Saddle
WTB SL8 Team-Ti
Seatpost
FOX Transfer Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.32 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Stack | 607 mm | 623 mm | 640 mm |
| Reach | 424 mm | 453 mm | 484 mm |
| Top Tube Length | 594 mm | 636 mm | 678 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 129 mm | 143 mm | 157 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1188 mm | 1224 mm | 1259 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm |
| Standover Height | 737 mm | 746 mm | 754 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
Evolution Convert 27.5″+ Shimano XTR is part of the Ellsworth Evolution model. Ellsworth released 10 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Ellsworth Evolution Convert 29″ SRAM GX Eagle 2018 is the most affordable bike of this model and has a price of 7425$. On the other hand, Ellsworth Evolution Convert 27.5″+ SRAM XX1 Eagle 2018, is the most expensive and costs 9924$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9420$. If we compare this with the average Trail bike cost we notice that the price is 241.06% higher.
Evolution Convert 27.5″+ Shimano XTR components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Evolution Convert 27.5″+ Shimano XTR has a rear shock with a travel of 140mm. The model FOX Performance X2 is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Ellsworth Evolution Convert 27.5″+ Shimano XTR 2018, has a 27.5″ carbon model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Ellsworth Evolution Convert 27.5″+ Shimano XTR has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Ellsworth Evolution Convert 27.5″+ Shimano XTR comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
