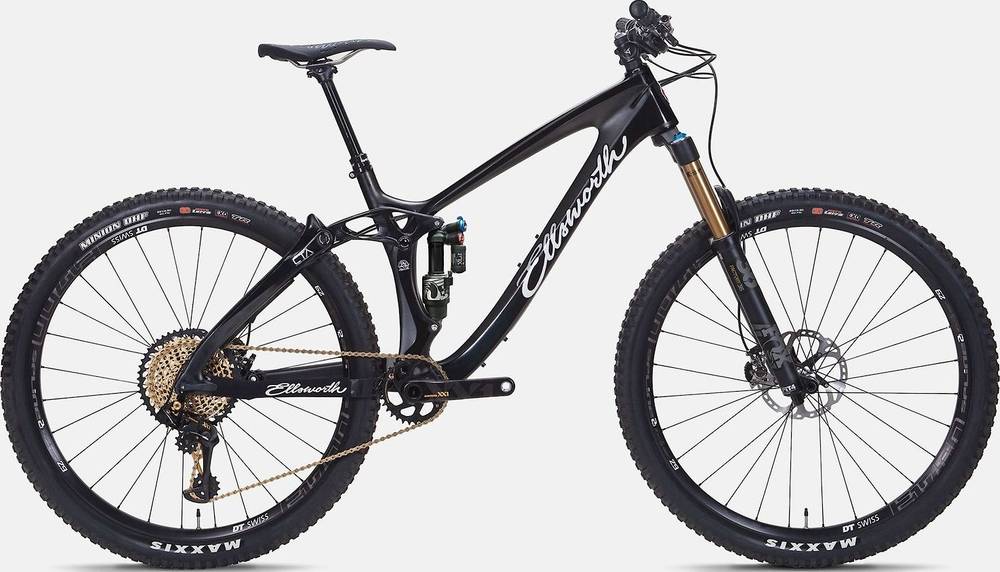

Ellsworth Evolution Convert 29″ Shimano XTR 2018
2018 Mountain
Estimate price |
9,420$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Factory 36 Series
Rear Shock
FOX Performance X2
Drivetrain
Rear Derailleur
Shimano XTR 9000
Front Derailleur
N/A
Shift Levers
Shimano XTR 9000, 11-speed
Cassette
Shimano XTR, 11-42 tooth, 11-speed
Crank
Shimano XTR 9000, Boost, 175mm length
Bottom Bracket
Shimano BSA threaded
Chain
Shimano XTR 9000
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1700
Rear Hub
DT Swiss M1700
Rims
DT Swiss M1700, 30mm, Optional wheelset upgrade: Reynolds 29 Trail
Spokes
DT Swiss
Tires
Maxxis Minion DHF, 2.3"
Brakes
Brakes
Shimano XTR 9020 with Shimano Ice-Tech 180mm rotors
Brake Levers
Shimano XTR 9020
Cockpit
Stem
Race Face Turbine Basic
Handlebar
Race Face SixC Carbon 35mm, 20mm rise
Grips
Lizard Skin Charger EHB
Headset
Cane Creek 10 Series, ZS44/56
Seat
Saddle
WTB SL8 Team-Ti
Seatpost
FOX Transfer Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.32 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Stack | 607 mm | 623 mm | 640 mm |
| Reach | 424 mm | 453 mm | 484 mm |
| Top Tube Length | 594 mm | 636 mm | 678 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 129 mm | 143 mm | 157 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1188 mm | 1224 mm | 1259 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Standover Height | 737 mm | 746 mm | 754 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
Evolution Convert 29″ Shimano XTR completes the Ellsworth Evolution model. Ellsworth launched 10 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Ellsworth Evolution Convert 29″ SRAM GX Eagle 2018 is the most economical model, with a starting price of 7425$. Ellsworth Evolution Convert 27.5″+ SRAM XX1 Eagle 2018 on the other hand costs 9924$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Ellsworth released this model in 2018, its price was 9420$. Doing a quick comparison, we notice that Evolution Convert 29″ Shimano XTR price is 241.06% higher than the average cost of a Trail bike.
Evolution Convert 29″ Shimano XTR components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is FOX Performance X2, with a travel distance of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Evolution Convert 29″ Shimano XTR bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ellsworth Evolution Convert 29″ Shimano XTR is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Ellsworth model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
