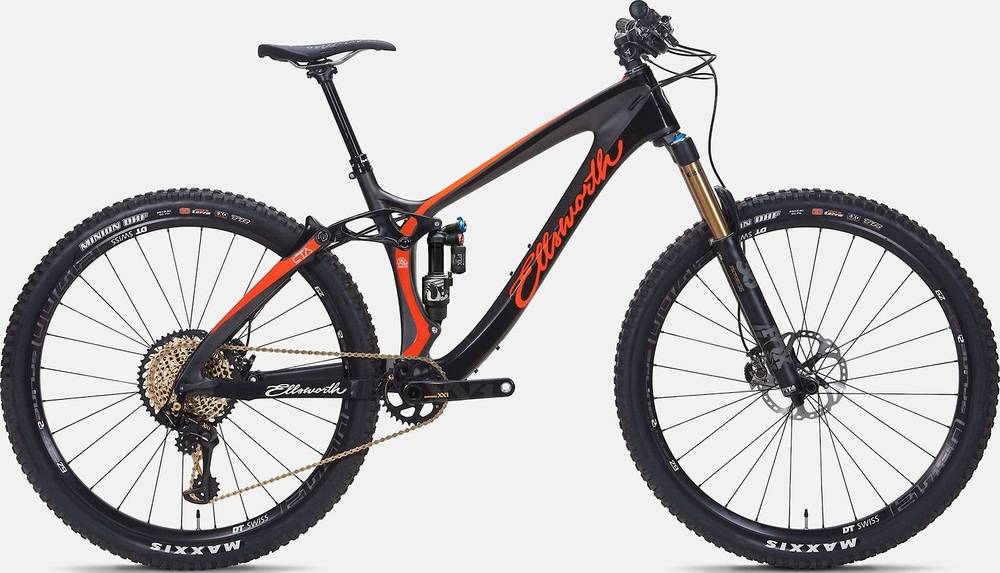

Ellsworth Evolution Convert 29″ SRAM X01 Eagle 2018
2018 Mountain
Estimate price |
8,920$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Factory 36 Series
Rear Shock
FOX Performance X2
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM GX Eagle, 11-50 tooth, 12-speed
Crank
SRAM X01 Eagle, Boost, 175mm length
Bottom Bracket
SRAM GXP, threaded
Chain
SRAM X01 Eagle
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1700
Rear Hub
DT Swiss M1700
Rims
DT Swiss M1700, 30mm, Optional wheelset upgrade: Reynolds 29 Trail
Spokes
DT Swiss
Tires
Maxxis Minion DHF, 2.3"
Brakes
Brakes
Shimano XT 8000 with Shimano Ice-Tech 180mm rotors
Brake Levers
Shimano XT 8000
Cockpit
Stem
Race Face Turbine Basic, 35mm clamp
Handlebar
Race Face Atlas 35mm, 20mm rise
Grips
Lizard Skin Charger EHB
Headset
Cane Creek 10 Series, ZS44/56
Seat
Saddle
WTB Volt Pro
Seatpost
FOX Transfer Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.32 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Stack | 607 mm | 623 mm | 640 mm |
| Reach | 424 mm | 453 mm | 484 mm |
| Top Tube Length | 594 mm | 636 mm | 678 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 129 mm | 143 mm | 157 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1188 mm | 1224 mm | 1259 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Standover Height | 737 mm | 746 mm | 754 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
Evolution Convert 29″ SRAM X01 Eagle is part of the Ellsworth Evolution model. Ellsworth released 10 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Ellsworth Evolution Convert 29″ SRAM GX Eagle 2018 has a starting price of 7425$. Ellsworth Evolution Convert 27.5″+ SRAM XX1 Eagle 2018 on the other hand is the most expensive at 9924$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2018 and its price was 8920$. In conclusion, this bike price is 222.95% more expensive than the price of the average Trail bike.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Ellsworth Evolution Convert 29″ SRAM X01 Eagle bike has the FOX Performance X2 model installed, and has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Evolution Convert 29″ SRAM X01 Eagle bike is equipped with the 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Evolution Convert 29″ SRAM X01 Eagle has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
