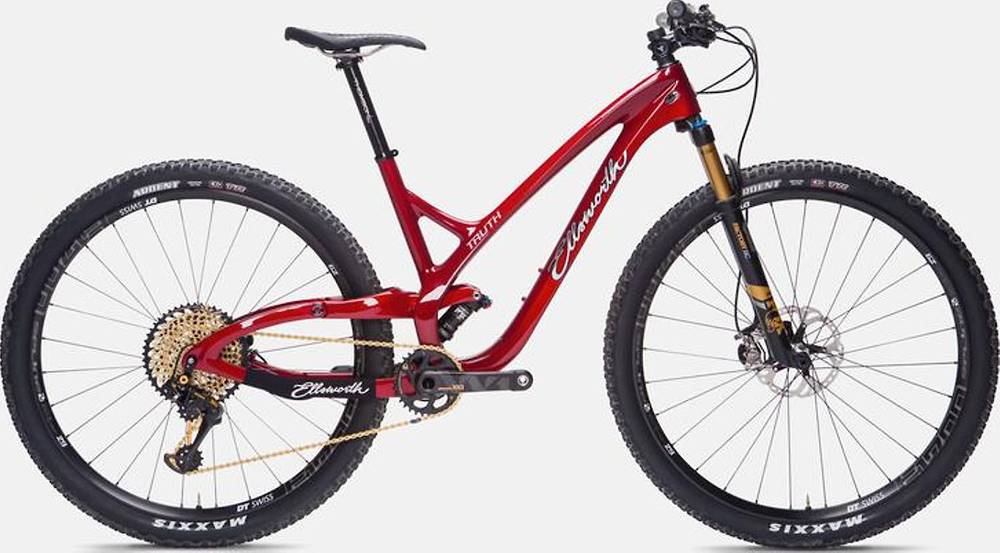

Ellsworth Truth Convert Shimano XTR 29″ 2018
2018 Mountain
Estimate price |
8,295$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
100mm: FOX 32 Float 29 SC Factory, 130mm: FOX 34 Float 29 Factory, Kashima
Rear Shock
FOX Float DPS Factory
Drivetrain
Rear Derailleur
Shimano XTR 9000
Front Derailleur
N/A
Shift Levers
Shimano XTR 9000, 11-speed
Cassette
Shimano XTR, 11-42 tooth, 11-speed
Crank
Shimano XTR 9000, Boost, 175mm length
Bottom Bracket
Shimano BSA threaded
Chain
Shimano XTR 9000, 11-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1700, Boost front and rear
Rear Hub
DT Swiss M1700, Boost front and rear
Rims
DT Swiss M1700, 25mm width
Spokes
DT Swiss
Tires
Maxxis Ikon, 29" x 2.2"
Brakes
Brakes
Shimano XTR 9020 with Shimano 180mm front/160mm rear Ice Tech rotors
Brake Levers
Shimano XTR
Cockpit
Stem
Race Face Turbine, 70mm length, 6mm rise, 31.8mm clamp
Handlebar
Race Face Next, 725mm width, 31.8mm diameter, 20mm rise
Grips
Lizard Skin Charger EHB
Headset
Cane Creek 10 Series ZS44/56
Seat
Saddle
WTB SL8 Team-Ti
Seatpost
FOX Transfer Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm |
| Stack | 583 mm | 592 mm | 602 mm |
| Reach | 418 mm | 443 mm | 467 mm |
| Top Tube Length | 570 mm | 598 mm | 625 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 98 mm | 109 mm | 120 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1116 mm | 1145 mm | 1174 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 627 mm | 627 mm | 627 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Truth Convert Shimano XTR 29″ is part of the Ellsworth Truth model. Ellsworth released 10 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Ellsworth Truth Convert SRAM GX 27.5″+ 2018 is the cheapest bike model and costs 6145$. Ellsworth Truth Convert SRAM XX1 Eagle 29″ 2018 is the most expensive one and costs 8795$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2018 and its price was 8295$. Comparing this to the average Crosscountry bike price, we see that the price is 335.43% more expensive.
Overview of components
Fork
This bike has the Fox Factory Float 32 fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is FOX Float DPS Factory, with a travel distance of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Ellsworth Truth Convert Shimano XTR 29″ 2018, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Ellsworth Truth Convert Shimano XTR 29″ comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
