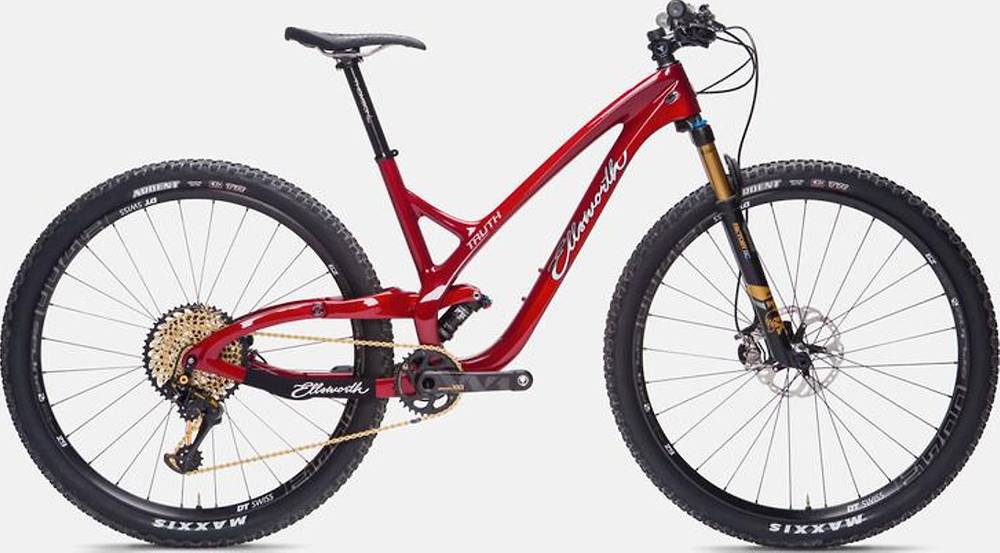

Ellsworth Truth Convert SRAM X01 27.5″+ 2018
2018 Mountain
Estimate price |
7,395$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset X01 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
100mm: FOX 32 Float 29 SC Factory, 120mm: FOX 34 Float 29 Factory
Rear Shock
FOX Float DPS Factory
Drivetrain
Rear Derailleur
SRAM X01
Front Derailleur
N/A
Shift Levers
SRAM X01, 12-speed
Cassette
SRAM GX, 11-50 tooth, 12-speed
Crank
SRAM X01 1X Boost, 175mm length
Bottom Bracket
SRAM GXP threaded
Chain
SRAM X01, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M1700, Boost front and rear
Rear Hub
DT Swiss M1700, Boost front and rear
Rims
DT Swiss M1700, 35mm width
Spokes
DT Swiss
Tires
Maxxis Ikon, 27.5" x 2.8"
Brakes
Brakes
Shimano XT 8000 with Shimano 180mm front/160mm rear Ice Tech rotors
Brake Levers
Shimano XT
Cockpit
Stem
Race Face Turbine Basic, 80mm length, 6mm rise, 31.8mm clamp
Handlebar
Race Face Turbine, 725mm width, 31.8mm diameter, 20mm rise
Grips
Lizard Skin Charger EHB
Headset
Cane Creek 10 Series ZS44/56
Seat
Saddle
WTB Volt Pro
Seatpost
FOX Transfer Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm |
| Stack | 583 mm | 592 mm | 602 mm |
| Reach | 418 mm | 443 mm | 467 mm |
| Top Tube Length | 570 mm | 598 mm | 625 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 98 mm | 109 mm | 120 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1116 mm | 1145 mm | 1174 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm |
| Standover Height | 627 mm | 627 mm | 627 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Truth Convert SRAM X01 27.5″+ is part of the Ellsworth Truth model. Ellsworth launched 10 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Ellsworth Truth Convert SRAM GX 27.5″+ 2018 is the cheapest bike model and costs 6145$. Ellsworth Truth Convert SRAM XX1 Eagle 29″ 2018 is the most expensive one and costs 8795$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7395$. Comparing the average cost of a Crosscountry bike to this one, you will see that Truth Convert SRAM X01 27.5″+ price is 288.19% higher.
Truth Convert SRAM X01 27.5″+ components
Fork
This bike has the Fox Factory Float 32 fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the FOX Float DPS Factory model, with a travel of 100mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Truth Convert SRAM X01 27.5″+ model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Truth Convert SRAM X01 27.5″+ has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Truth Convert SRAM X01 27.5″+ comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Truth Convert SRAM X01 27.5″+. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
