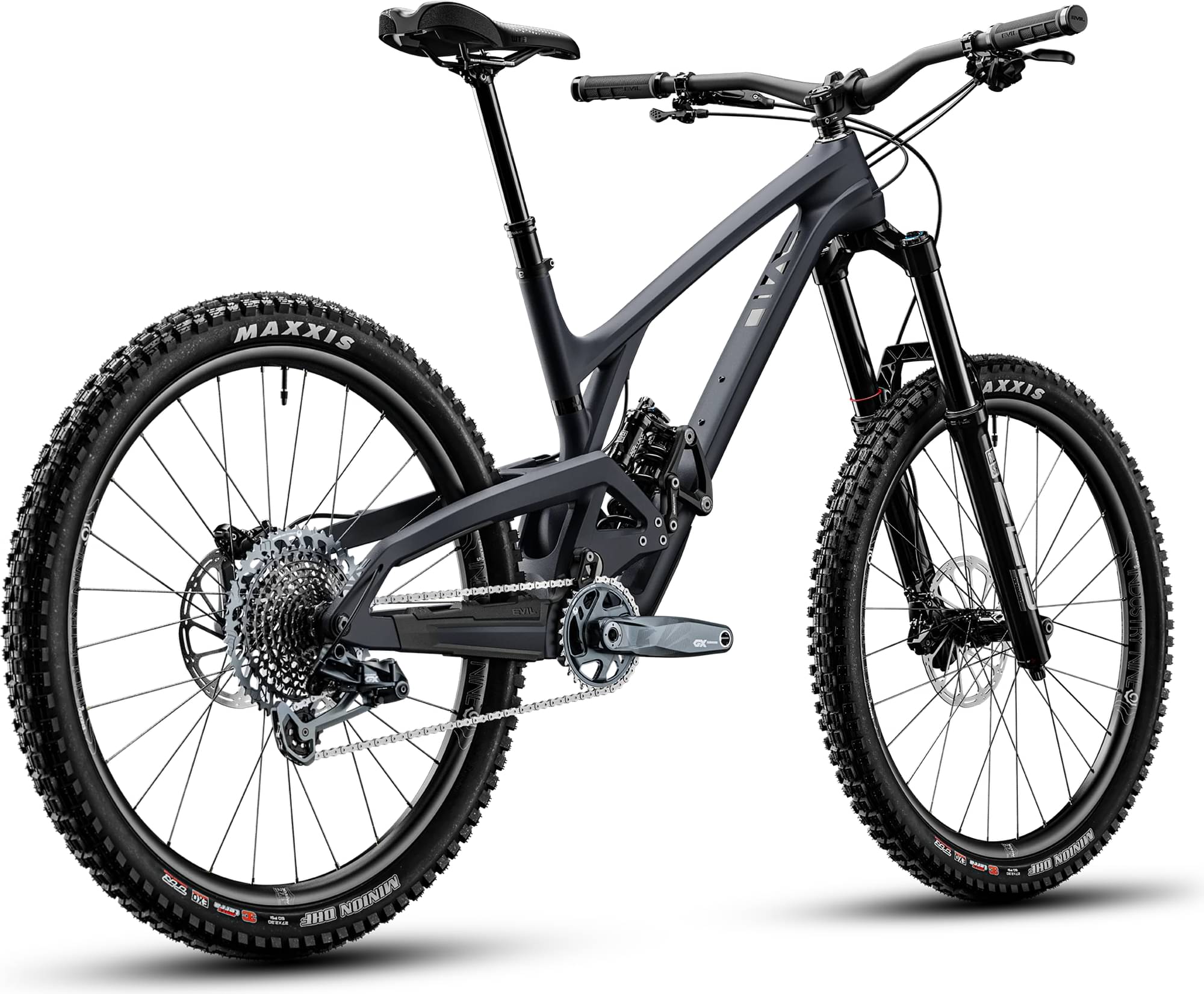

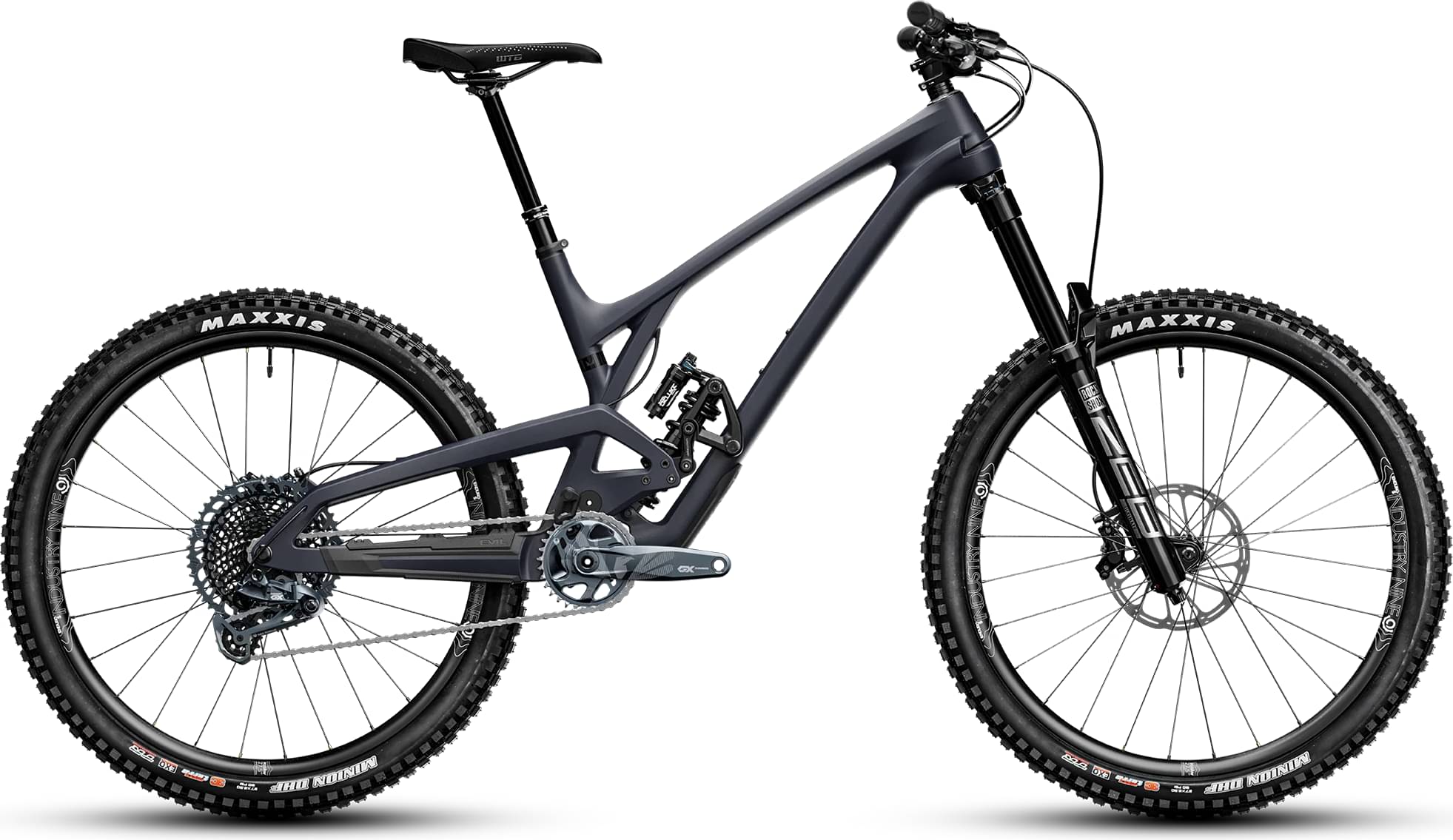

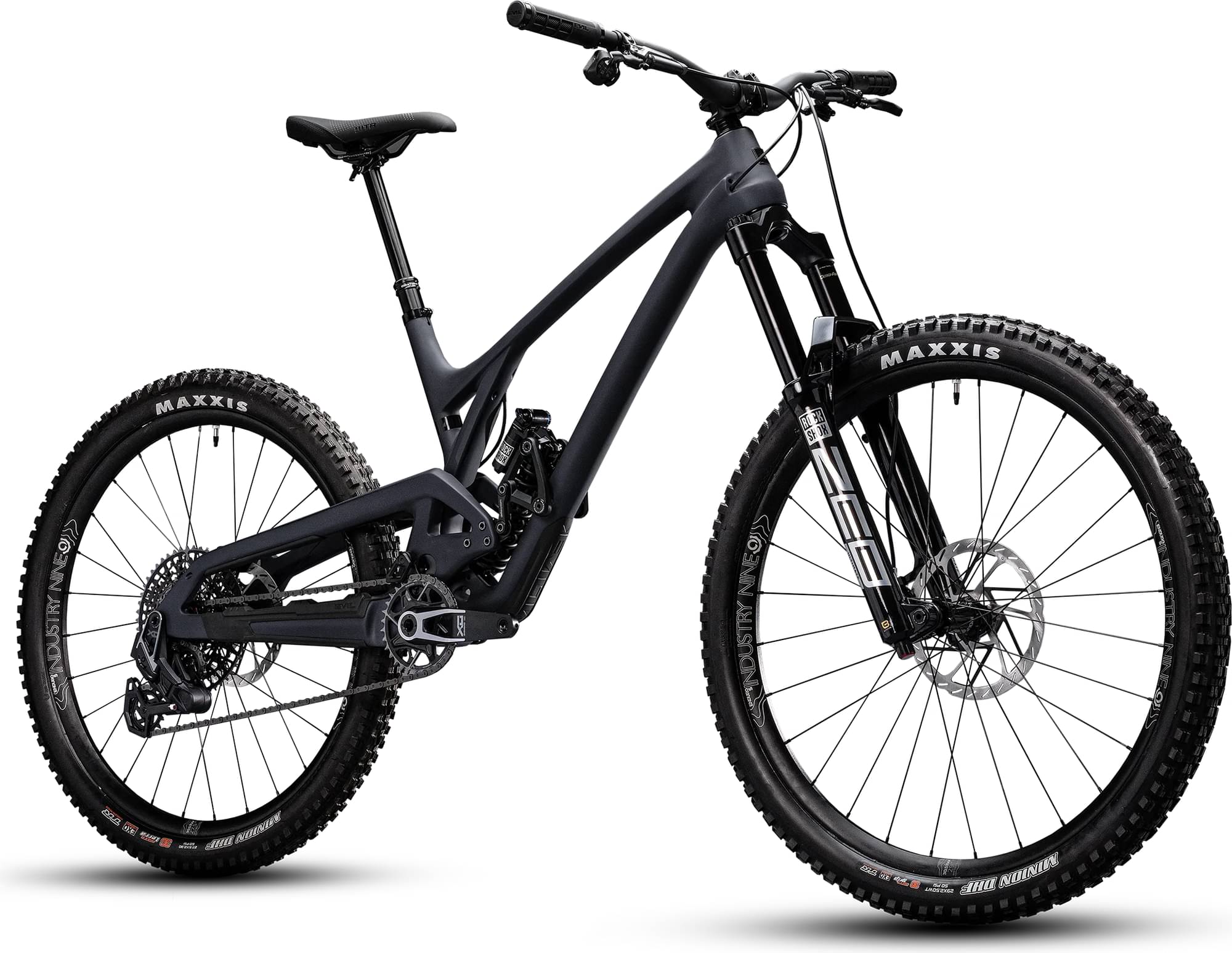

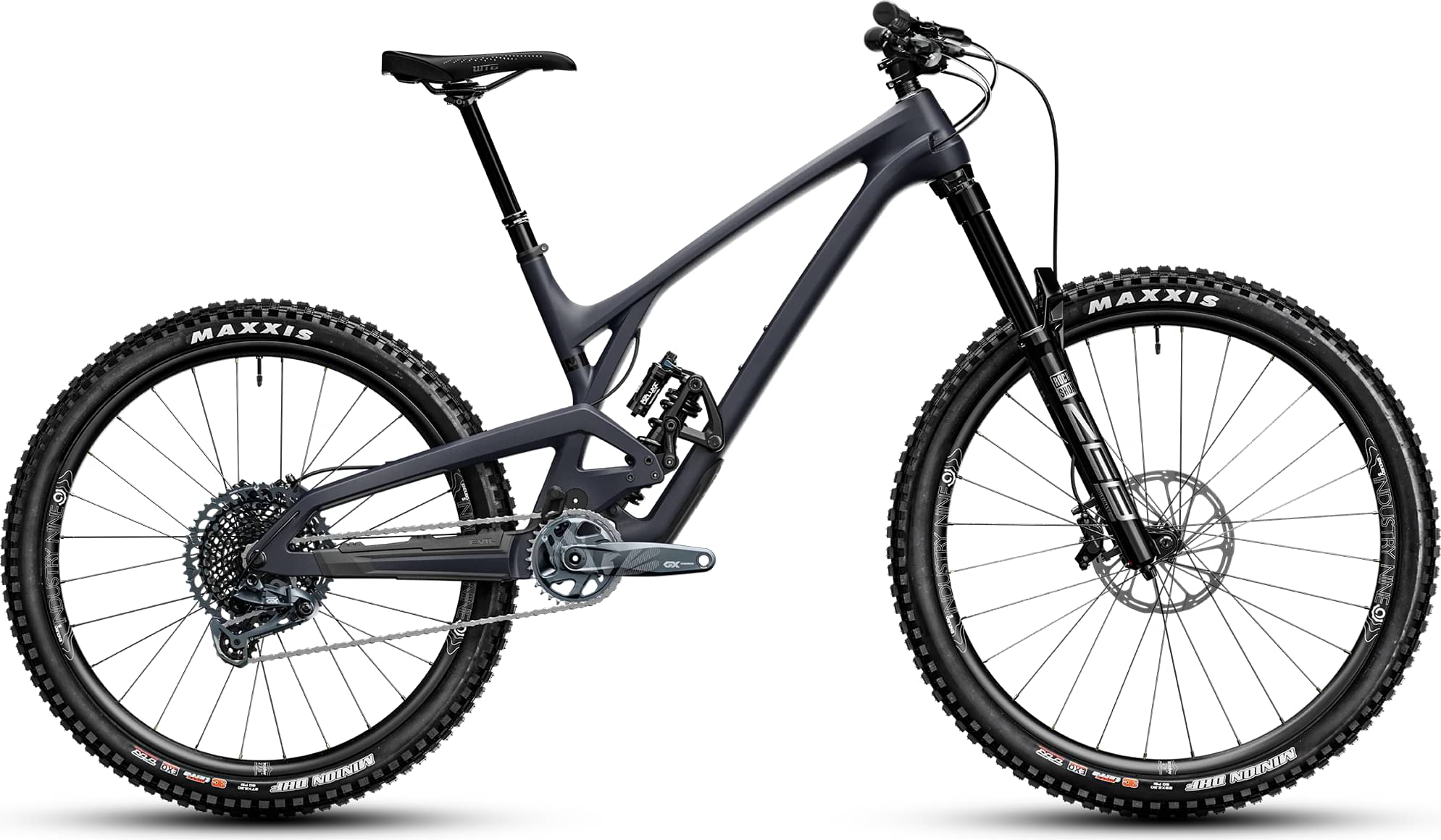

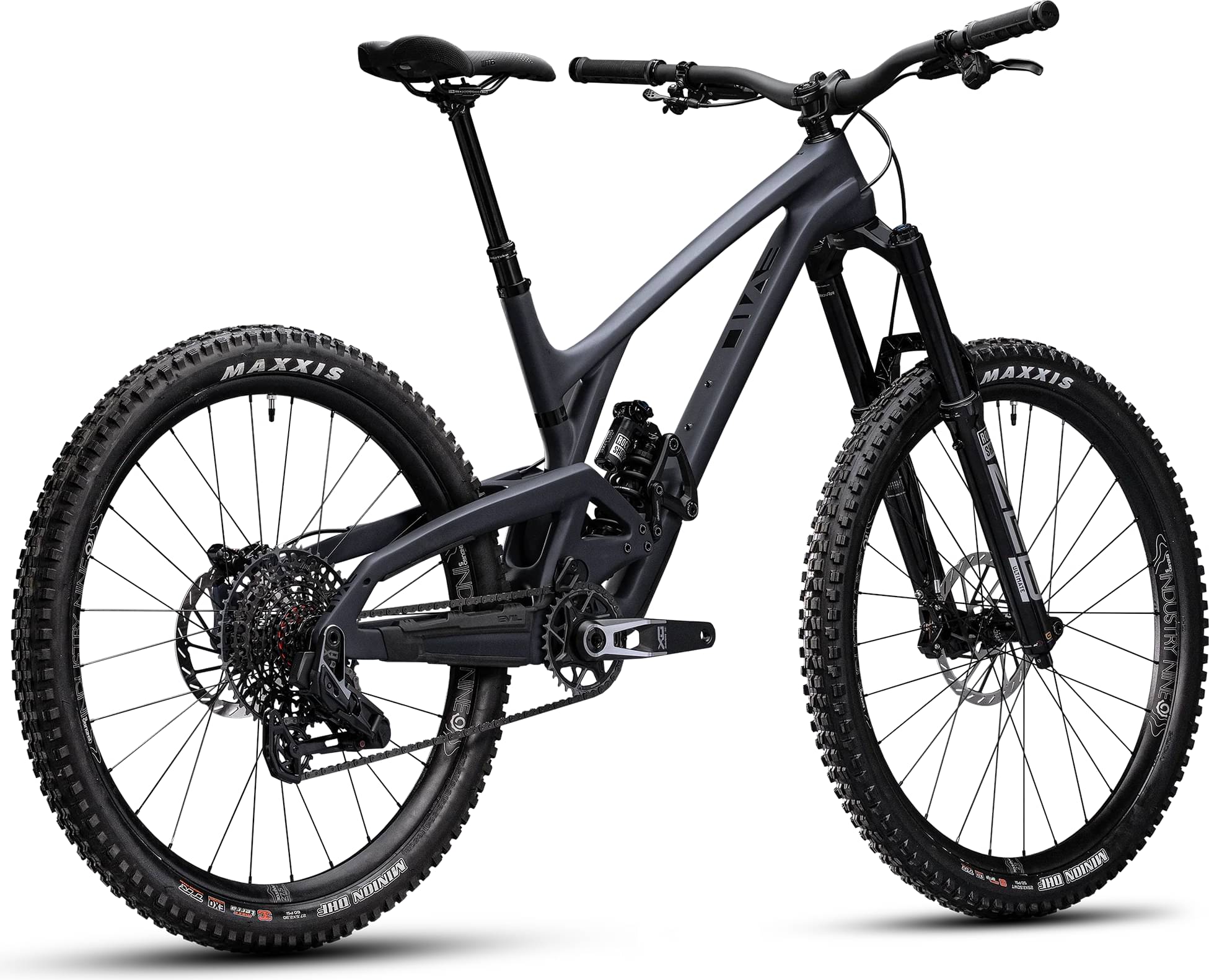

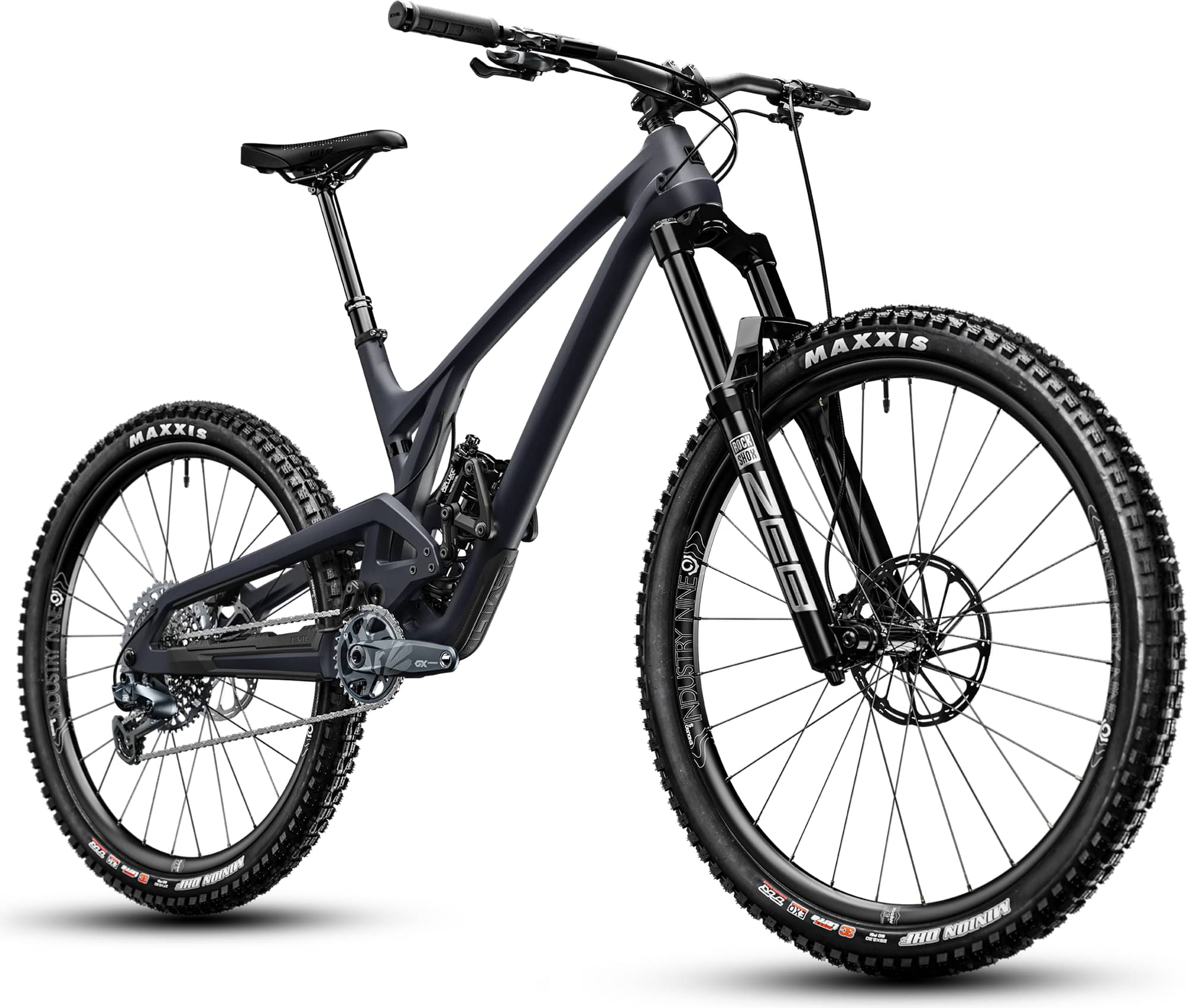

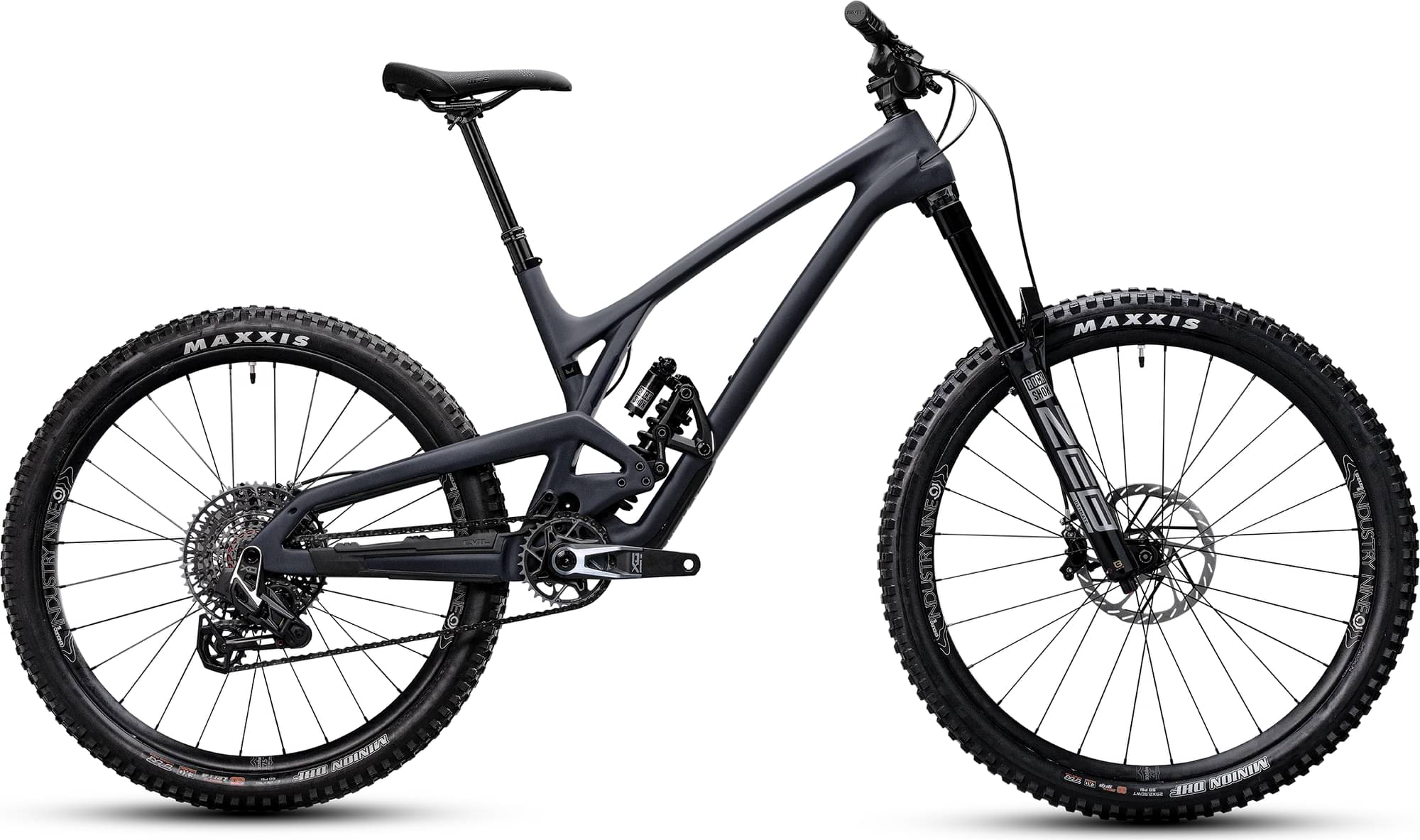

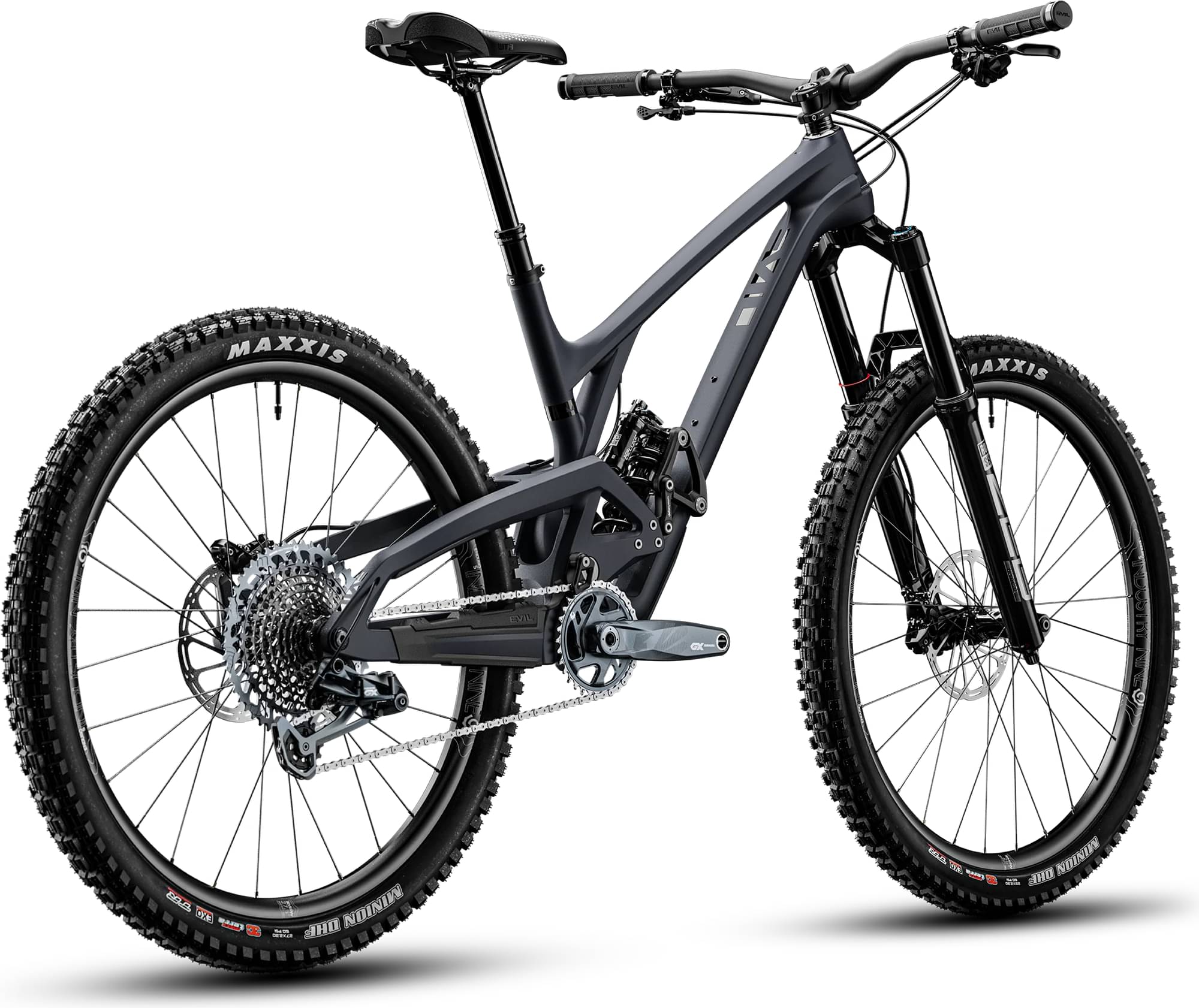

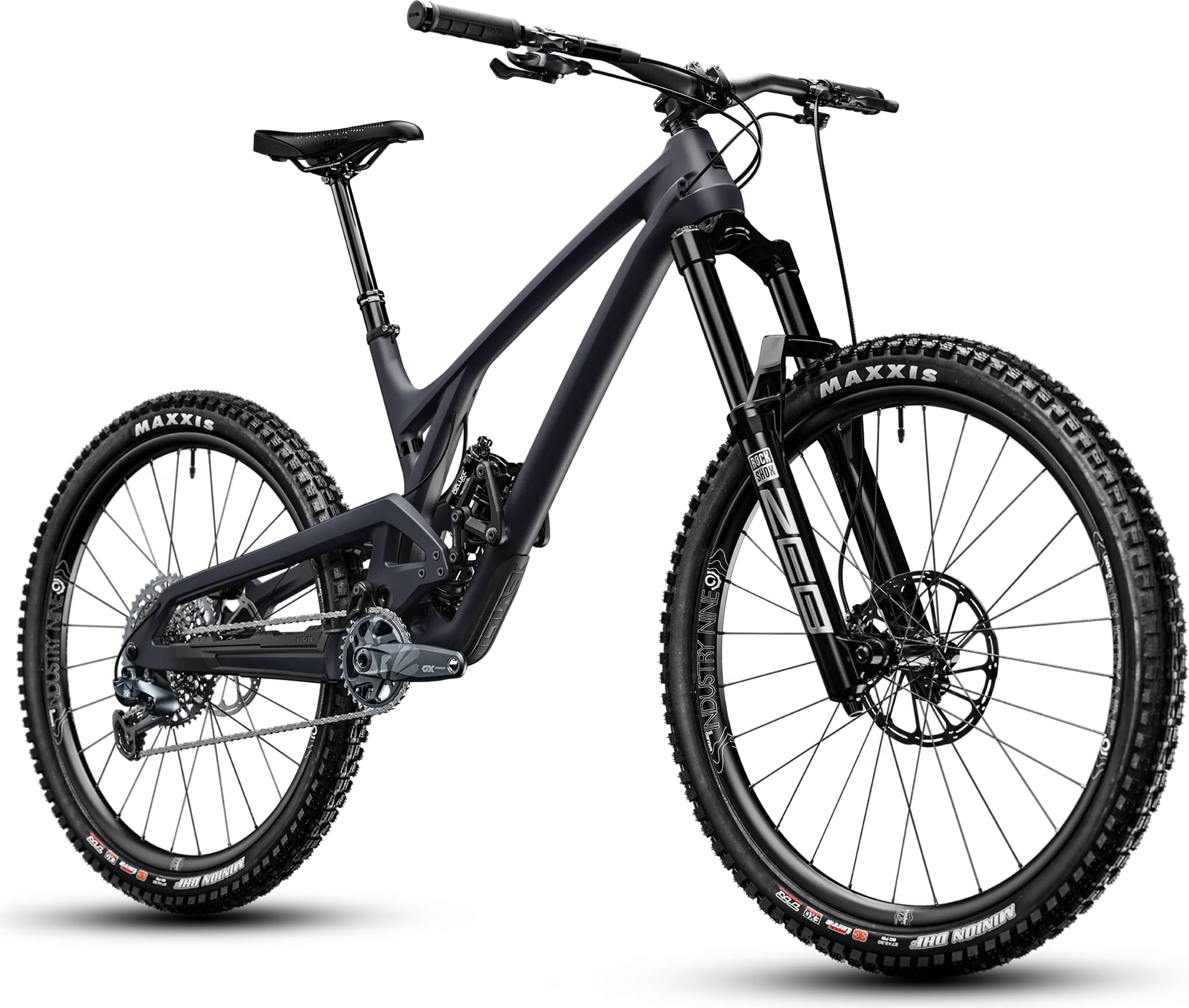

Evil Insurgent – LS SRAM X0 Eagle Transmission Hydra 2023
2023 Mountain
Estimate price |
8,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 168mm -
Fork RockShox ZEB Ultimate
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

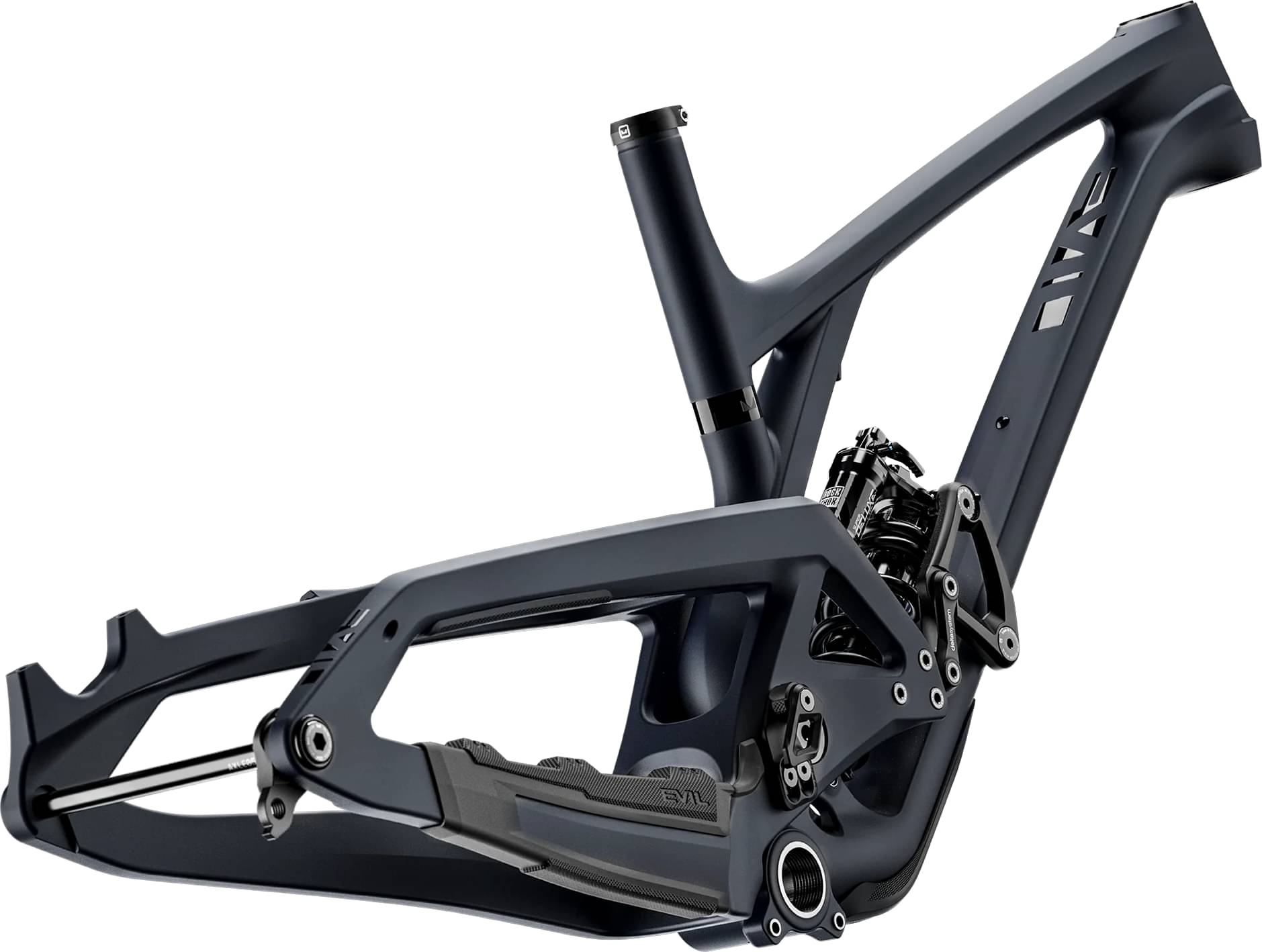

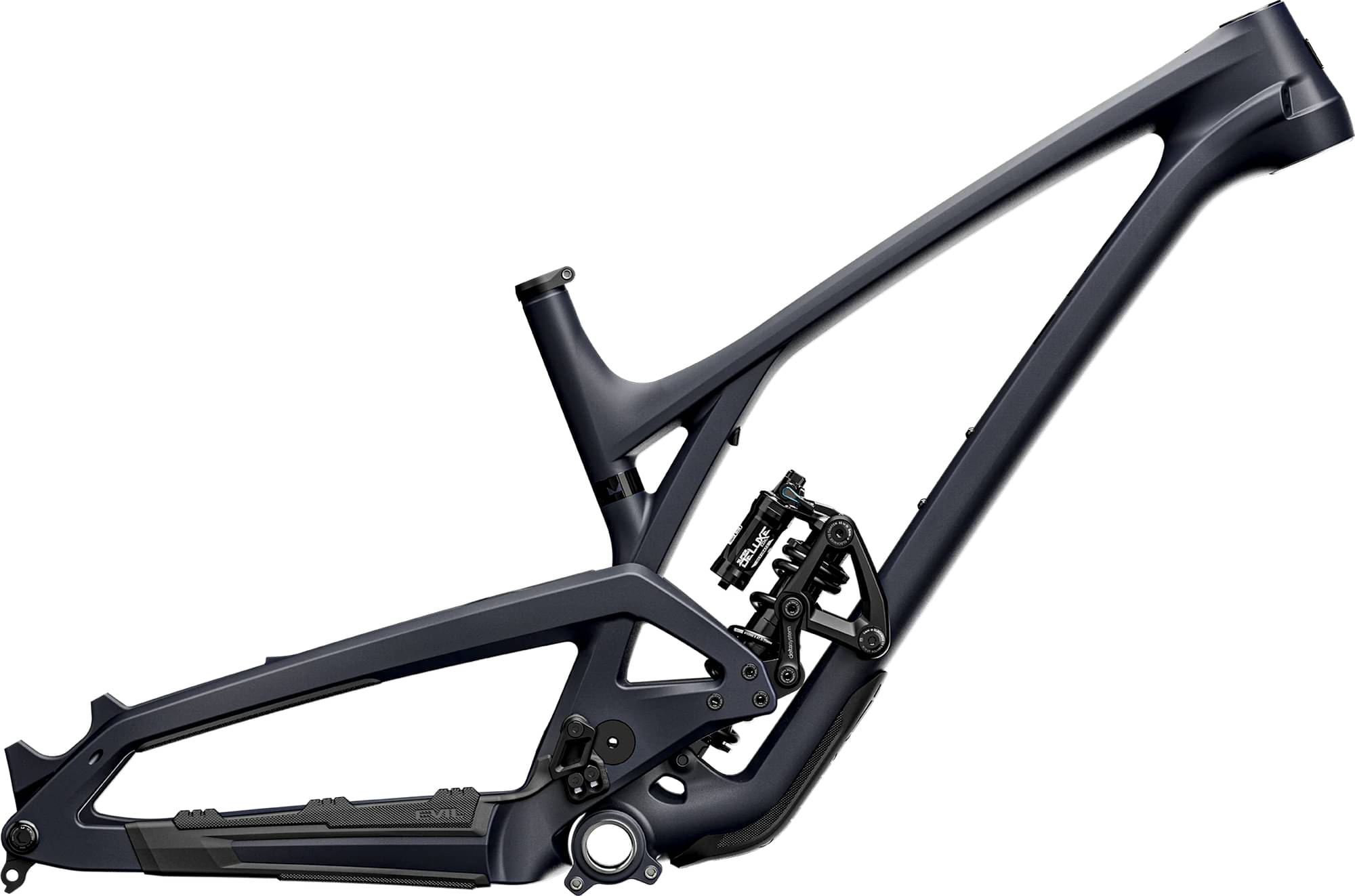

Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing Integrated Chain Guide, Threaded BB, UDH Compatible
Suspension Fork
Rockshox Zeb Ultimate, Charger 3 RC2 W/ ButterCups, 27.5”, 180mm Travel, 44mm Offset
Rear Shock
Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, LN L1 HB 38TS, S/M: 350lbs, L/XL 400lbs
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission Derailleur
Shift Levers
SRAM AXS Pod Controller
Cassette
SRAM X0 Eagle Transmission Cassette, 10-52T, 10, 12, 14, 16, 18, 21, 24, 28, 32, 38, 44, 52
Crank
SRAM X0 Eagle Crankset, DUB, 170mm, Direct Mount 32t, 55mm Chainline, Aluminum
Bottom Bracket
SRAM DUB 73mm BSA, 7.5mm Spacer Drive/3mm Spacer Non-Drive
Chain
SRAM X0 Eagle Transmission Flat Top Chain w/Powerlock, 116 Link
Wheels
Rims
Industry Nine Enduro S Hydra 27.5 Internal Width: 30.5mm, Hub: 110x15mm
Tires
Maxxis Minion DHF EXO TR, 27.5x2.5
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Race Face Turbine-R, Clamp: 35mm, Length: 40mm
Handlebar
Evil Boomstick Carbon, Backsweep: 8°, Upsweep 5° Clamp:35mm, Rise: 35mm, Width: 810mm
Grips
Evil Palmela Handerson lock-on
Headset
Works Components 1 Degree Angleset
Seat
Saddle
WTB Volt Pro
Seatpost
Bike Yoke Revive, S:125mm, M: 160mm, L:185m XL: 213mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm | 1.28 mm | 1.25 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 781 mm | 803 mm | 828 mm | 853 mm |
| Rake | 43 mm | 44 mm | 45 mm | 45 mm |
| Trail | 116 mm | 116 mm | 116 mm | 116 mm |
| Stack | 619 mm | 628 mm | 639 mm | 650 |
| Reach | 463 mm | 480 mm | 499 mm | 519 mm |
| Top Tube Length | 597 mm | 614 mm | 635 mm | 657 mm |
| Seat Tube Angle | 78.2 ° | 78.2 ° | 78.2 ° | 78.2 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 65.3 ° | 65.3 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 104 mm | 114 mm | 127 mm | 139 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1218 mm | 1240 mm | 1265 mm | 1290 mm |
| Bottom Bracket Drop | 8 mm | 8 mm | 8 mm | 8 mm |
| Standover Height | 699 mm | 710 mm | 718 mm | 731 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Insurgent – LS SRAM X0 Eagle Transmission Hydra is an Evil Insurgent model. Evil launched 48 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Evil Insurgent – LS SRAM GX MECHANICAL i9 HYDRA MX 2023 is the most affordable bike of this model and has a price of 6999$. On the other hand, Evil Insurgent LS SRAM X01 AXS Eagle I9 Hydra 2023, is the most expensive and costs 9555$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 8599$. Comparing the average cost of an Enduro bike to this one, you will see that Insurgent – LS SRAM X0 Eagle Transmission Hydra price is 138.93% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Insurgent – LS SRAM X0 Eagle Transmission Hydra components
Fork
This bike has the RockShox ZEB Ultimate fork installed. The fork’s travel is 180mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Evil Insurgent – LS SRAM X0 Eagle Transmission Hydra bike has the Rockshox Super Deluxe Coil Ultimate model installed, and has a travel of 168mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Evil Insurgent – LS SRAM X0 Eagle Transmission Hydra 2023, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Insurgent – LS SRAM X0 Eagle Transmission Hydra comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Evil model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
