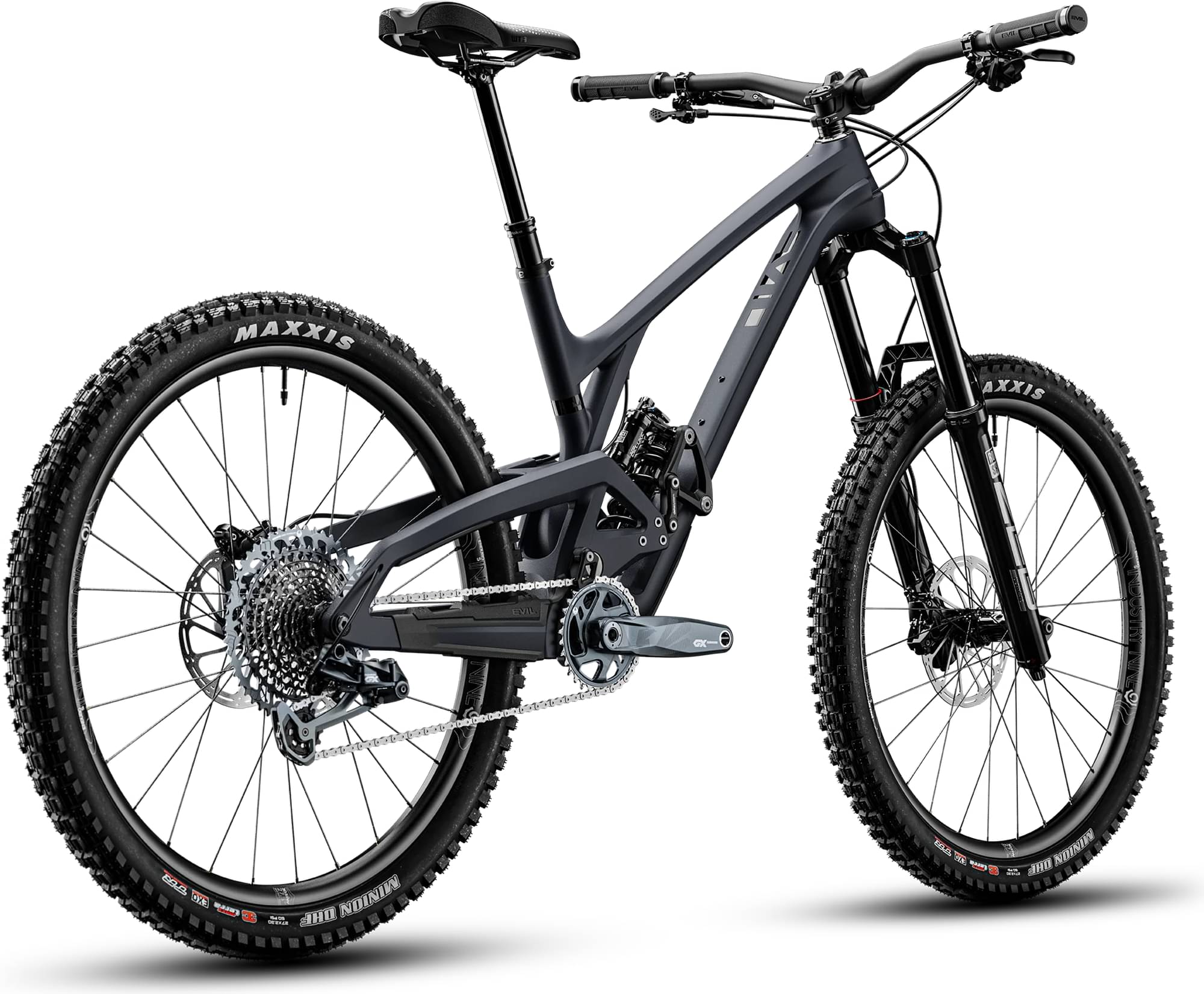

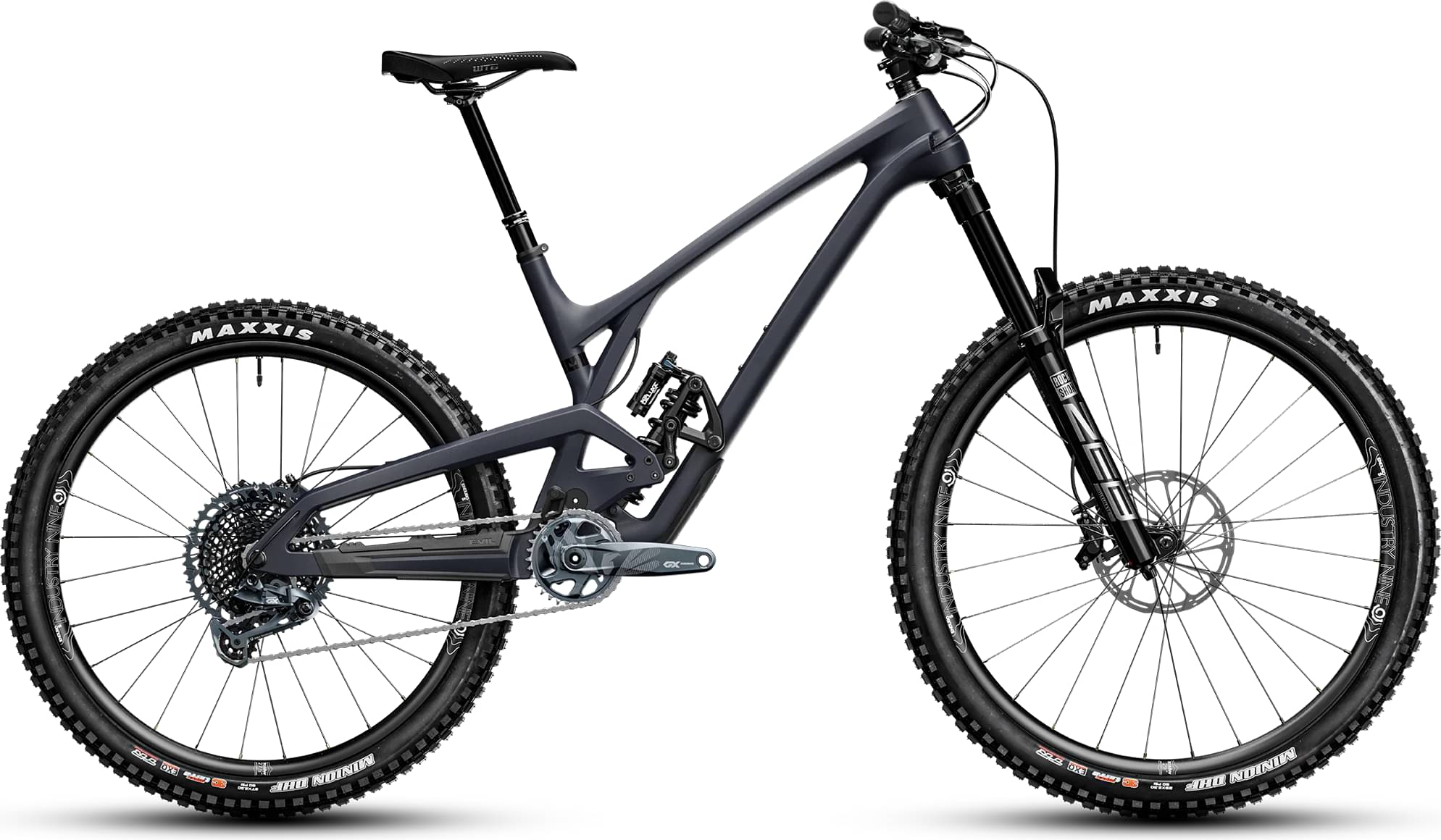

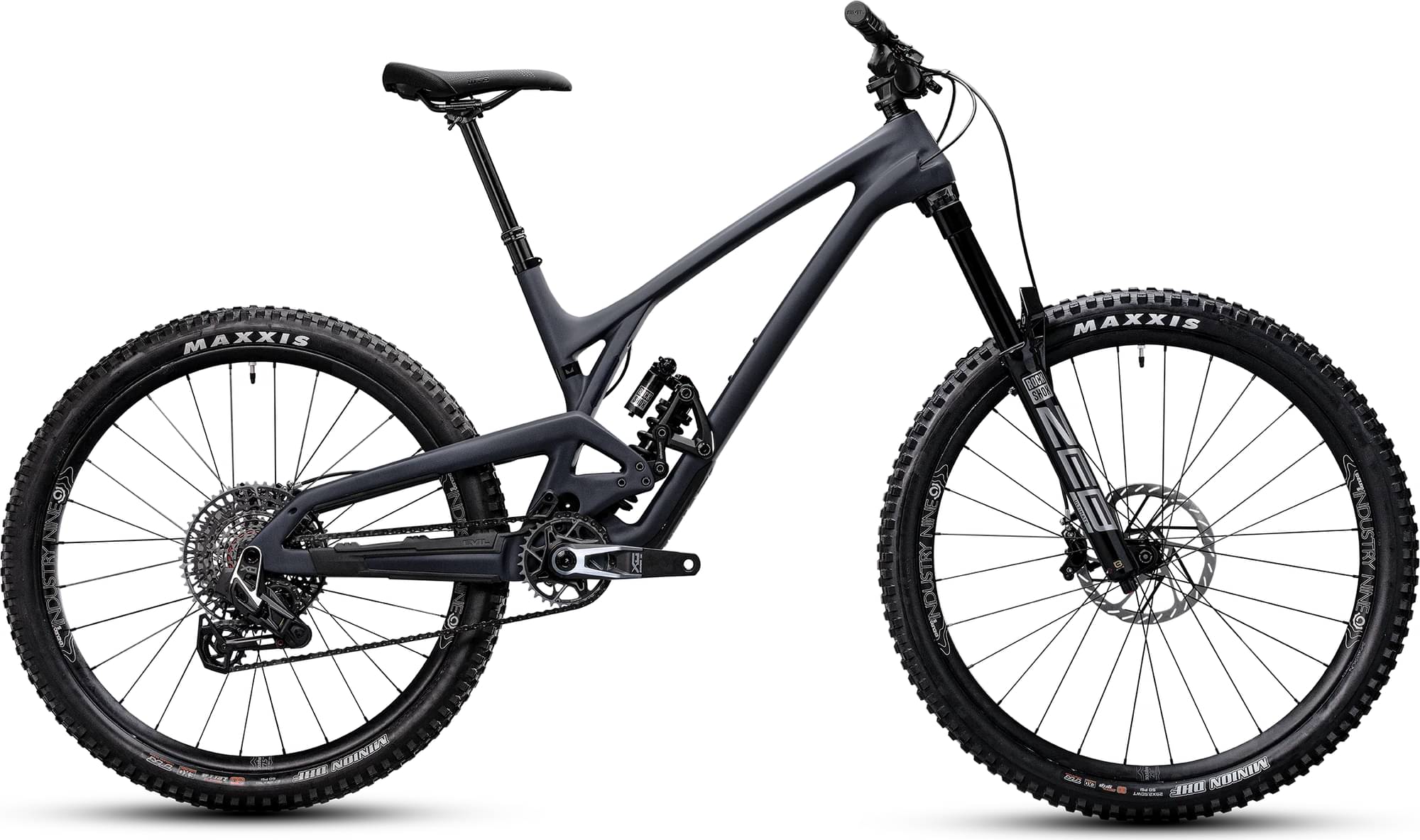

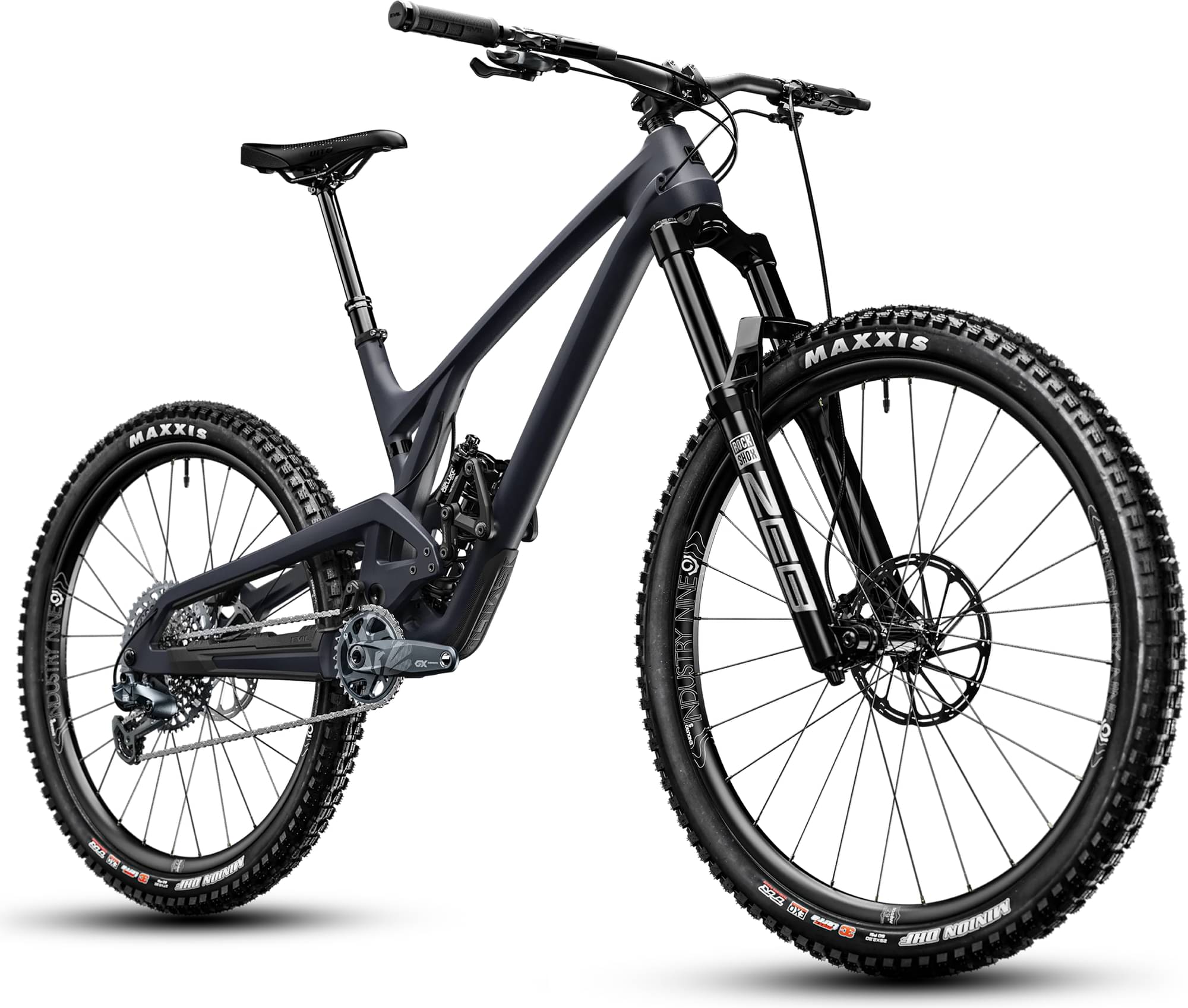

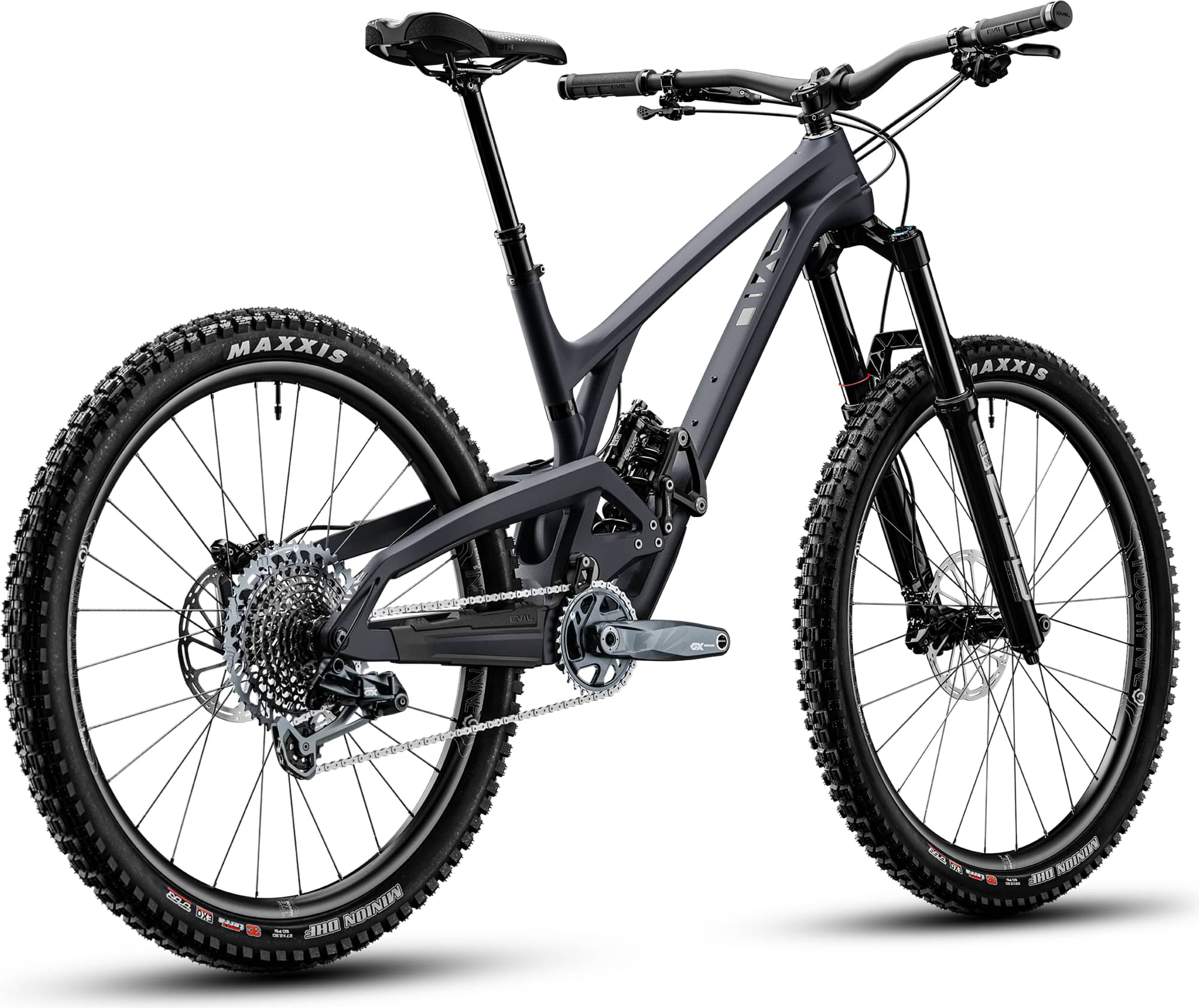

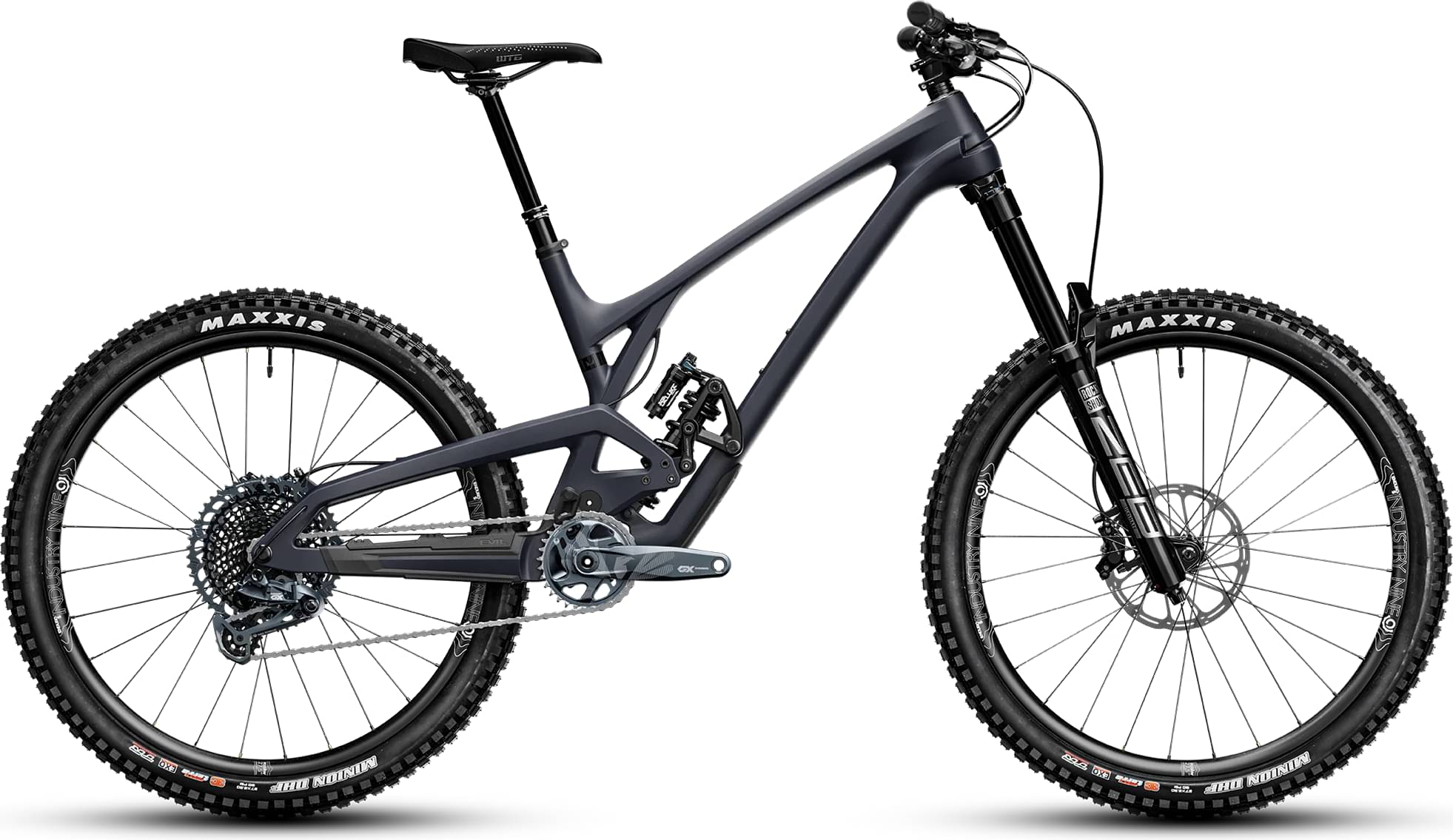

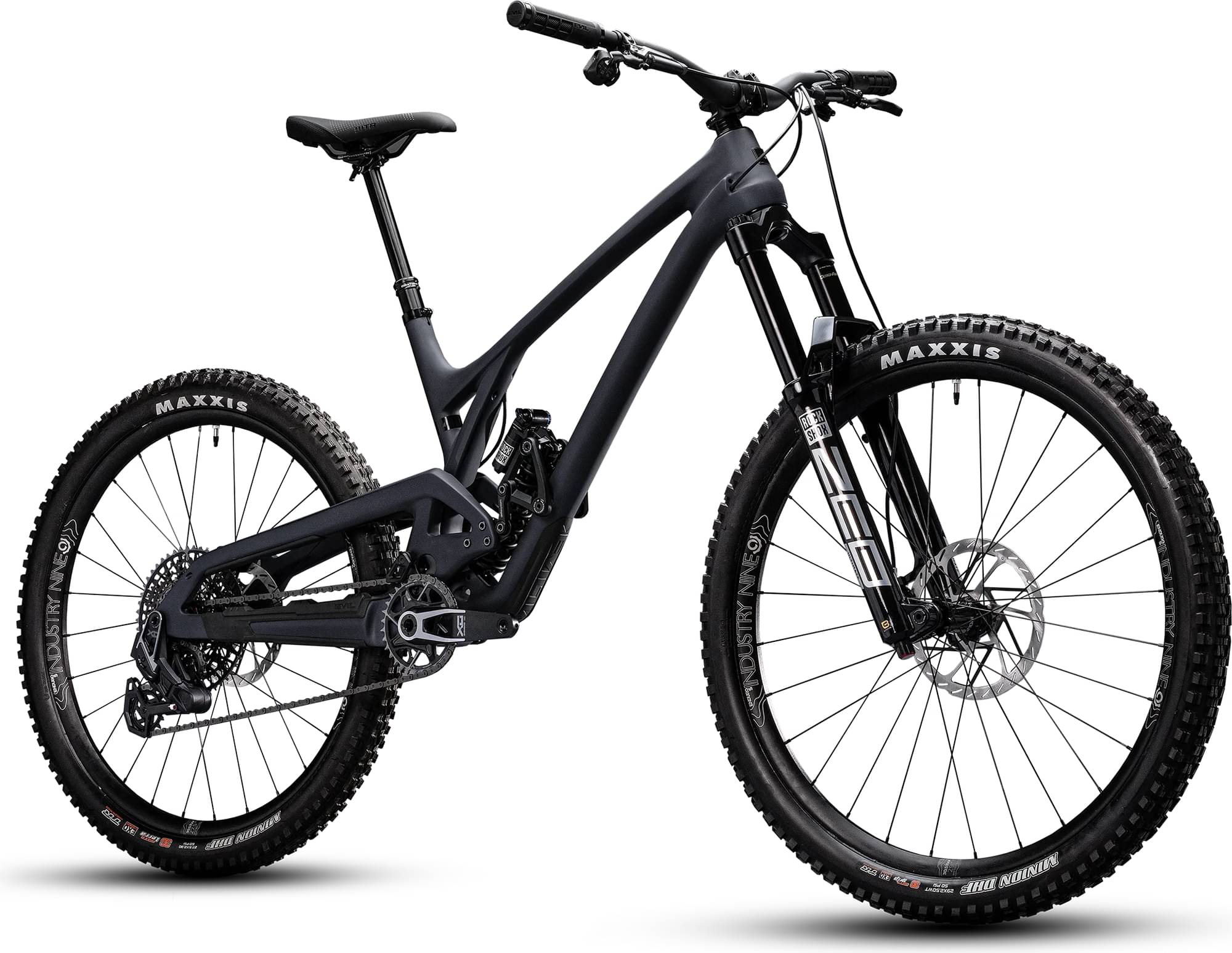

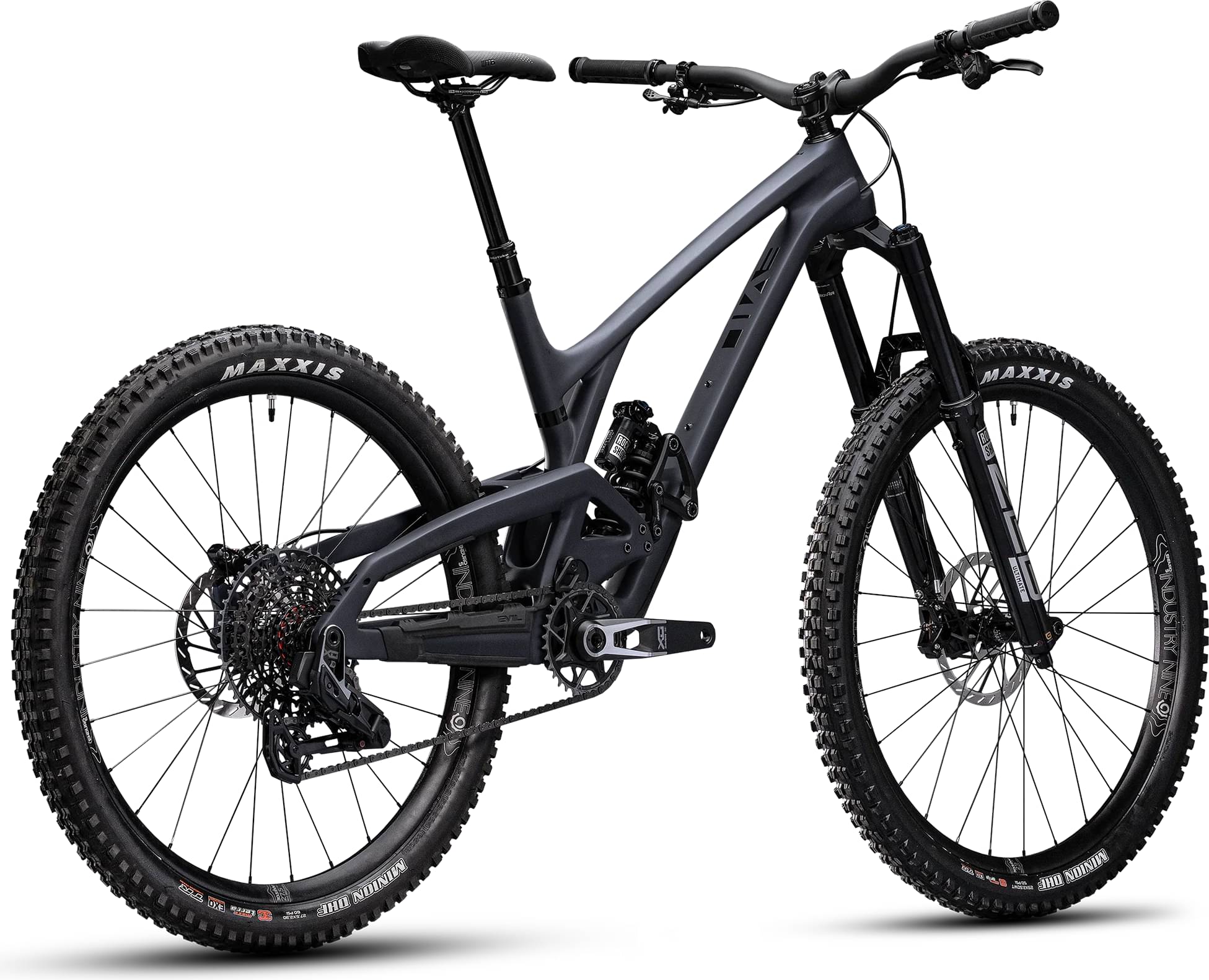

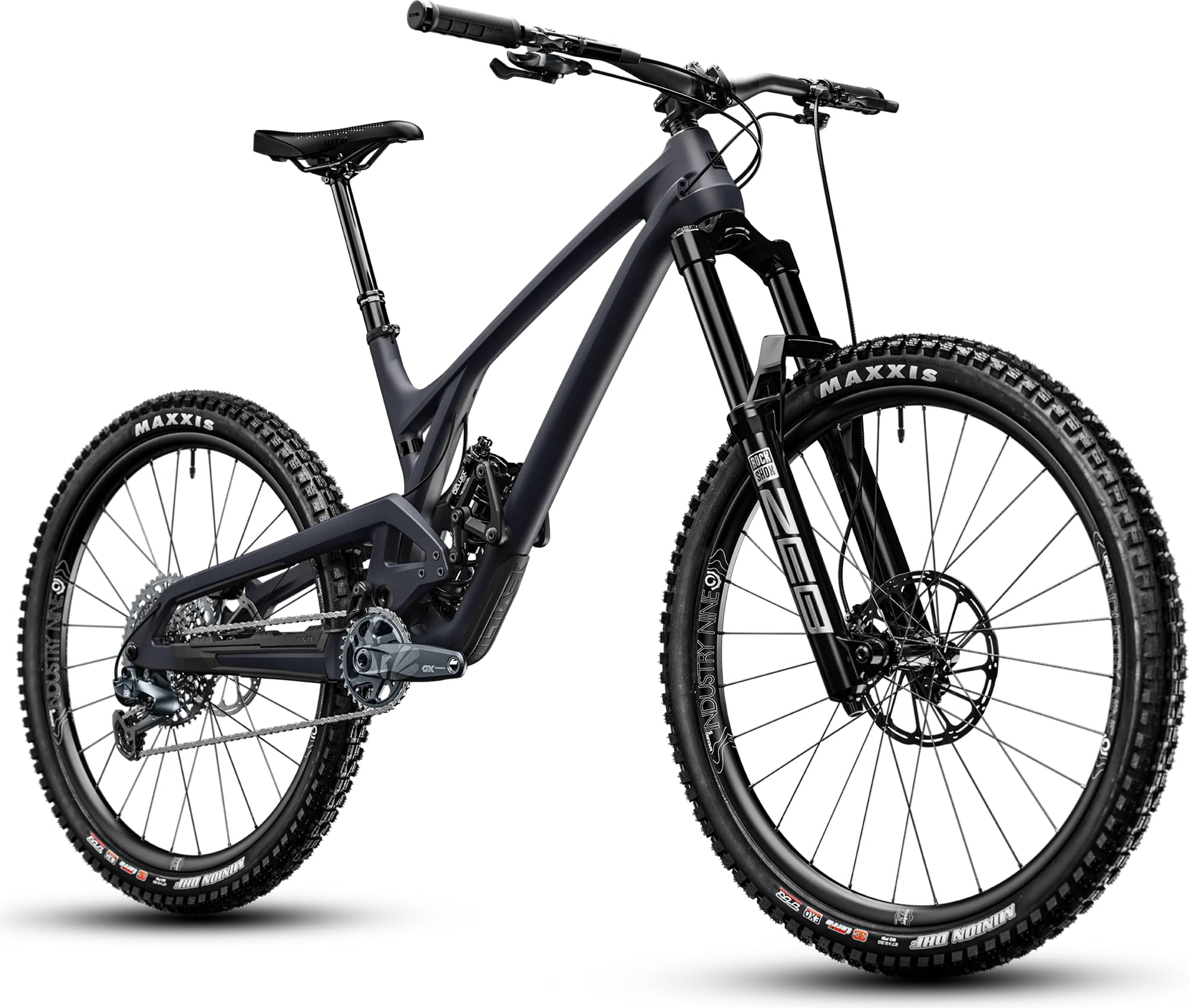

Evil Insurgent – LS SRAM XO EAGLE TRANSMISSION HYDRA MX 2023
2023 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 168mm -
Fork RockShox ZEB Ultimate
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

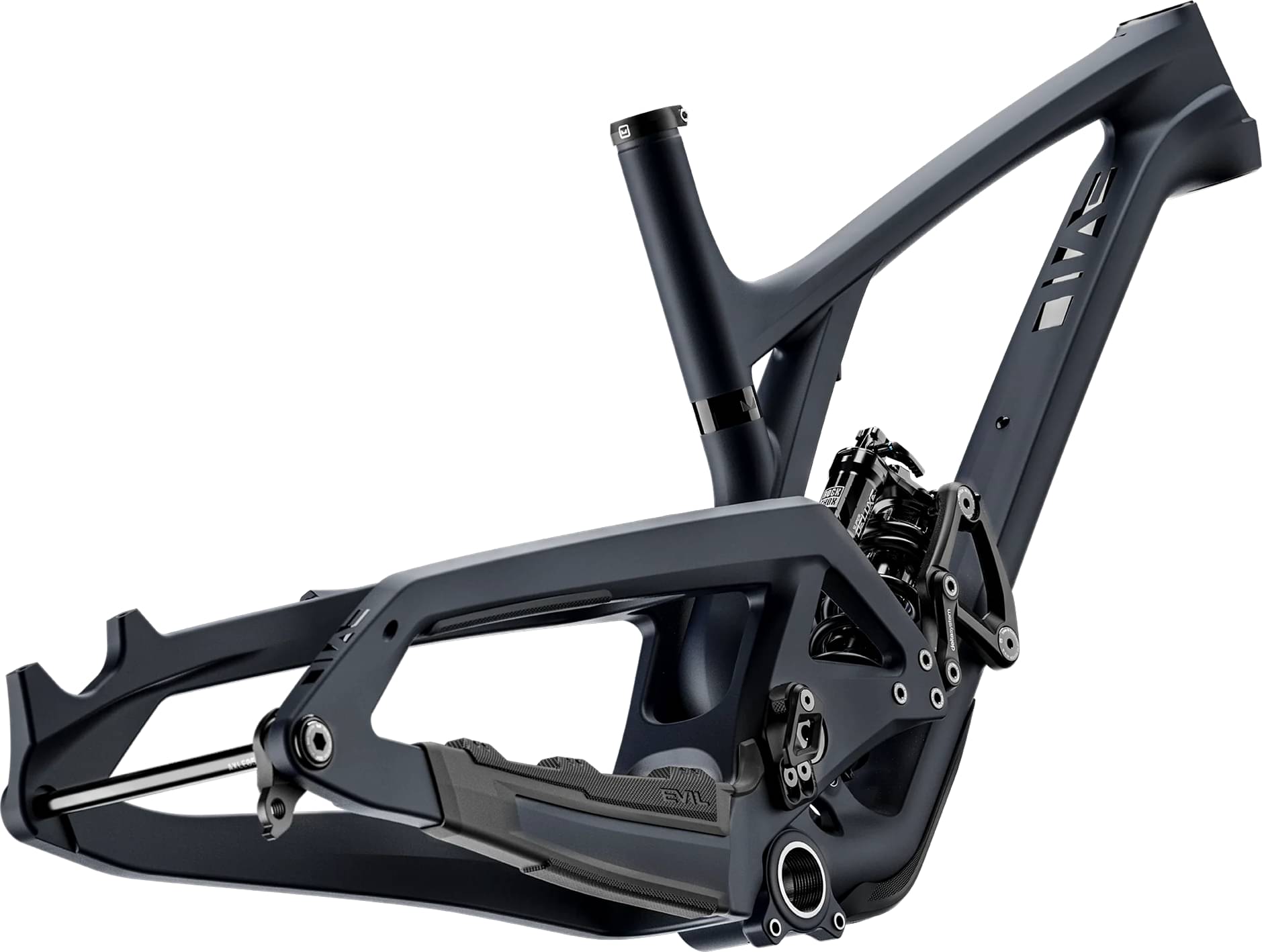

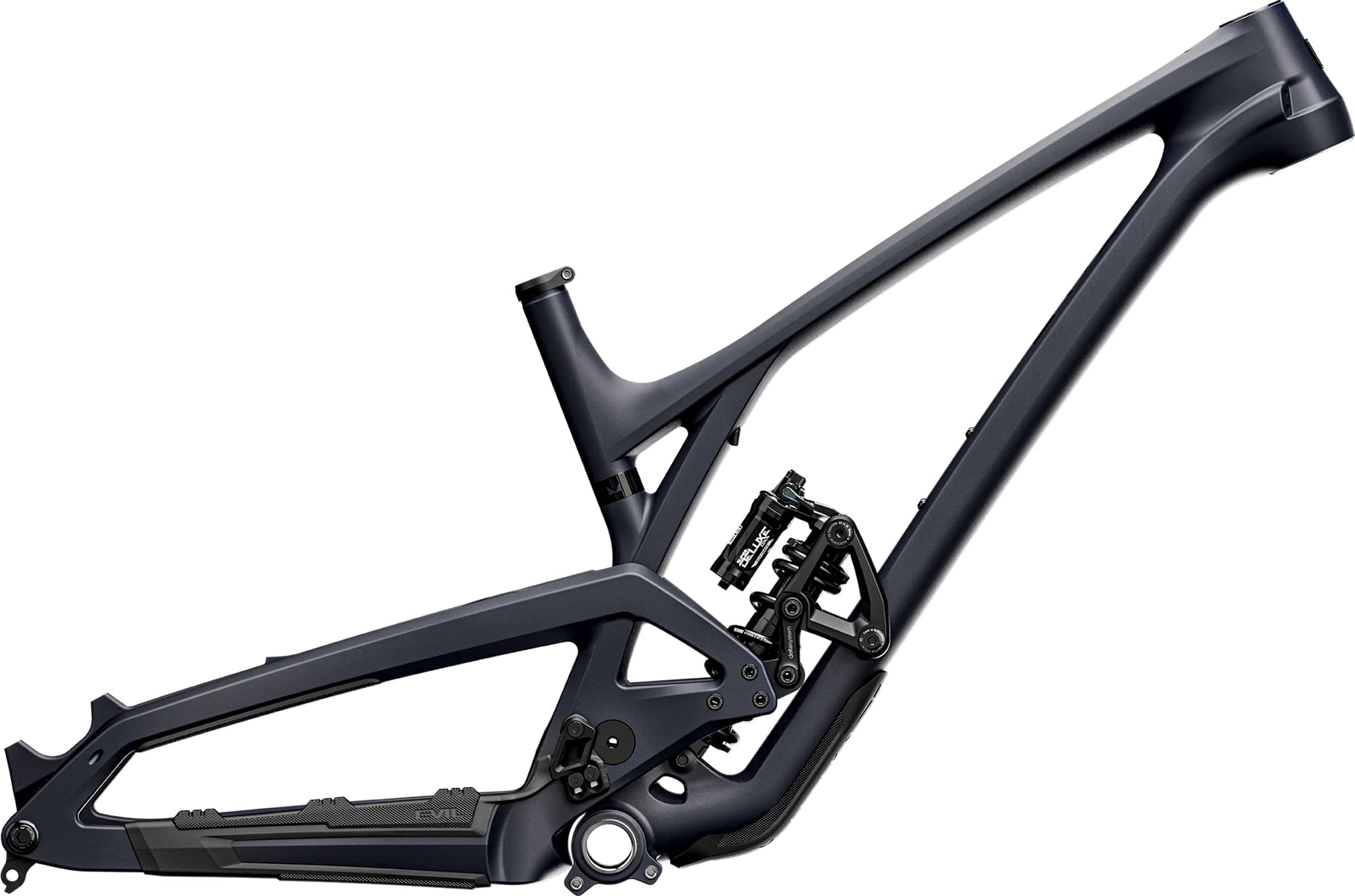

Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing Integrated Chain Guide, Threaded BB, UDH Compatible
Suspension Fork
Rockshox Zeb Ultimate, Charger 3 RC2 W/ ButterCups, 29”, 170mm Travel, 44mm Offset
Rear Shock
Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission Derailleur
Shift Levers
SRAM AXS Pod Controller
Cassette
SRAM X0 Eagle Transmission Cassette, 10-52T, 10, 12, 14, 16, 18, 21, 24, 28, 32, 38, 44, 52
Crank
SRAM X0 Eagle Crankset, DUB, 170mm, Direct Mount 32t, 55mm Chainline, Aluminum
Bottom Bracket
73mm Threaded
Chain
SRAM X0 Eagle Transmission Flat Top Chain w/Powerlock, 116 Link
Wheels
Rims
168mm
Tires
Maxxis Minion DHF EXO TR, 29x2.5
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Race Face Turbine-R, Clamp: 35mm, Length: 40mm
Handlebar
Evil Boomstick Carbon, Backsweep: 8°, Upsweep 5° Clamp:35mm, Rise: 35mm, Width: 810mm
Grips
Evil Palmela Handerson lock-on
Headset
Works Components 1 Degree Angleset
Seat
Saddle
WTB Volt Pro
Seatpost
Bike Yoke Revive, S: 125mm, M: 160mm, L: 185m XL: 185mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | SM Low | MD Low | MD Low | LG Low | LG Low | XL Low | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.432 mm | 1.402 mm | 1.402 mm | 1.37 mm | 1.368 mm | 1.338 mm | 1.335 mm | 1.304 mm |
| Bottom Bracket Height | 349 mm | 358 mm | 349 mm | 358 mm | 349 mm | 358 mm | 349 mm | 358 mm |
| Front Center | 785 mm | 785 mm | 806 mm | 806 mm | 832 mm | 832 mm | 857 mm | 857 mm |
| Rake | 36 mm | 38 mm | 36 mm | 38 mm | 36 mm | 38 mm | 36 mm | 38 mm |
| Trail | 136 mm | 131 mm | 136 mm | 131 mm | 136 mm | 131 mm | 136 mm | 131 mm |
| Stack | 626 mm | 621 mm | 635 mm | 630 mm | 647 mm | 642 mm | 658 mm | 652 mm |
| Reach | 437 mm | 443 mm | 453 mm | 460 mm | 473 mm | 480 mm | 493 mm | 500 mm |
| Top Tube Length | 598 mm | mm | 615 mm | mm | 636 mm | mm | 657 mm | mm |
| Seat Tube Angle | 76.2 ° | 76.9 ° | 76.2 ° | 76.9 ° | 76.2 ° | 76.9 ° | 76.2 ° | 76.9 ° |
| Head Tube Angle | 63.5 ° | 64.2 ° | 63.5 ° | 64.2 ° | 63.5 ° | 64.2 ° | 63.5 ° | 64.2 ° |
| Chainstay Length | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm |
| Wheelbase | 1217 mm | 1215 mm | 1238 mm | 1236 mm | 1264 mm | 1262 mm | 1289 mm | 1287 mm |
| Bottom Bracket Drop | 8 mm | 1 mm | 8 mm | 1 mm | 8 mm | 1 mm | 8 mm | 1 mm |
| Standover Height | 699 mm | 705 mm | 709 mm | 716 mm | 718 mm | 724 mm | 718 mm | 736 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Insurgent – LS SRAM XO EAGLE TRANSMISSION HYDRA MX belongs to the Evil Insurgent model. 50 bikes variations carry this model name so far. You can easily view all of the Evil Insurgent bikes models from 2023, here.
Model range prices
Evil Insurgent – LS SRAM GX MECHANICAL i9 HYDRA MX 2023 is the most economical model, with a starting price of 6999$. Evil Insurgent LS SRAM X01 AXS Eagle I9 Hydra 2023 on the other hand costs 9529$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Insurgent – LS SRAM XO EAGLE TRANSMISSION HYDRA MX components
Fork
The RockShox ZEB Ultimate is included from the factory. It has a travel distance of 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Insurgent – LS SRAM XO EAGLE TRANSMISSION HYDRA MX has a rear shock with a travel of 168mm. The model Rockshox Super Deluxe Coil Ultimate is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Insurgent – LS SRAM XO EAGLE TRANSMISSION HYDRA MX model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Insurgent – LS SRAM XO EAGLE TRANSMISSION HYDRA MX comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Insurgent – LS SRAM XO EAGLE TRANSMISSION HYDRA MX. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
