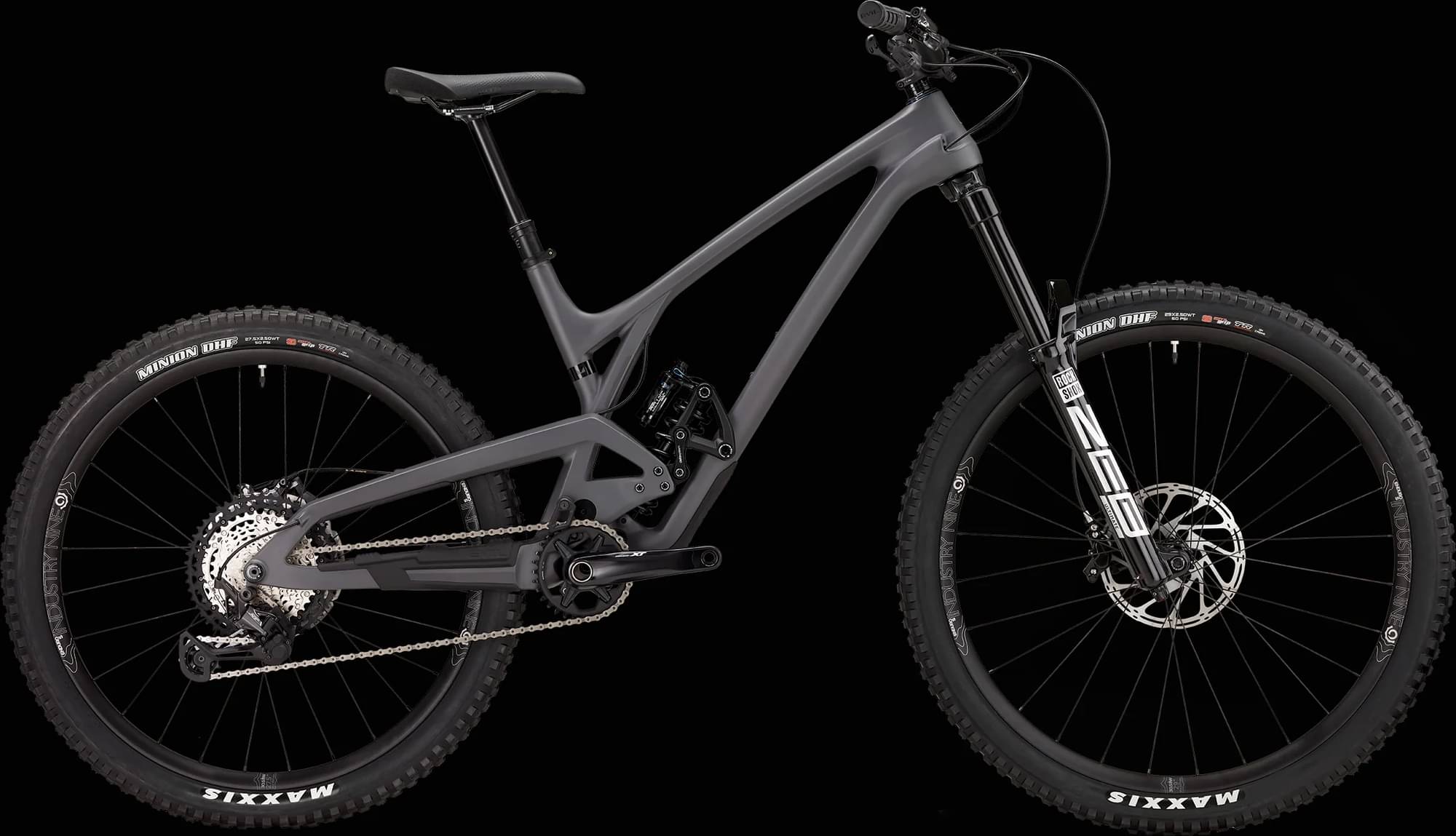

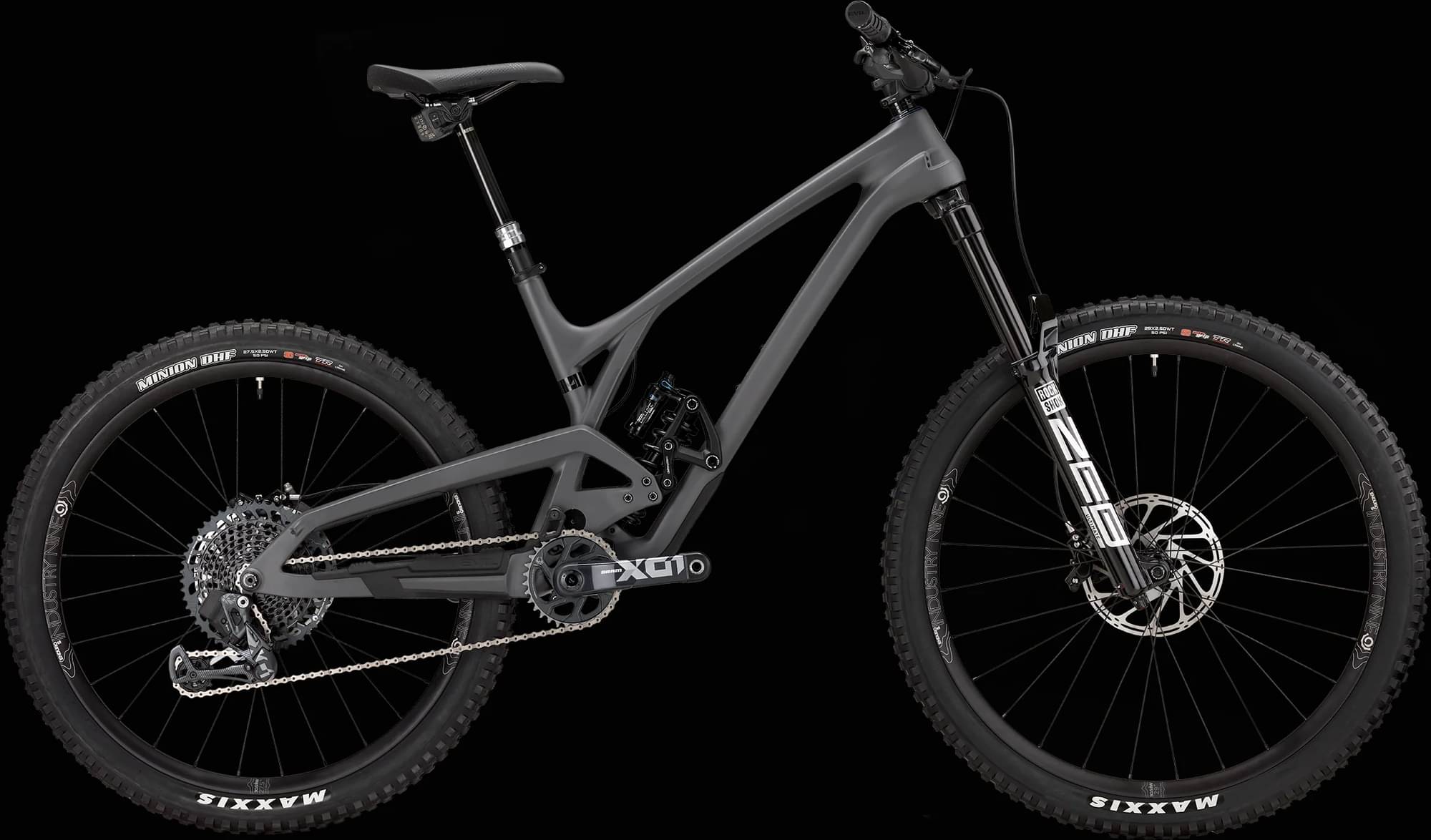

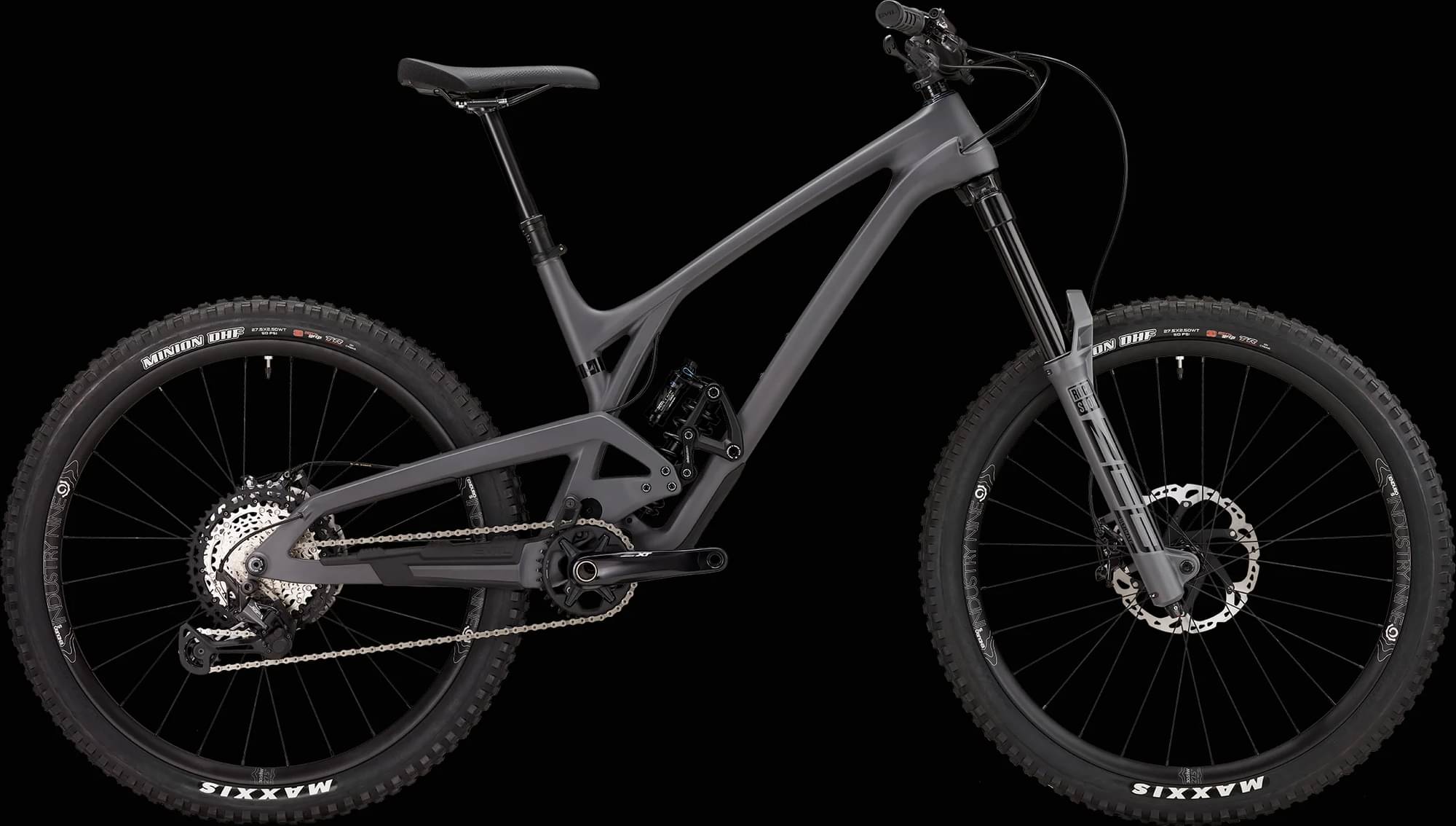

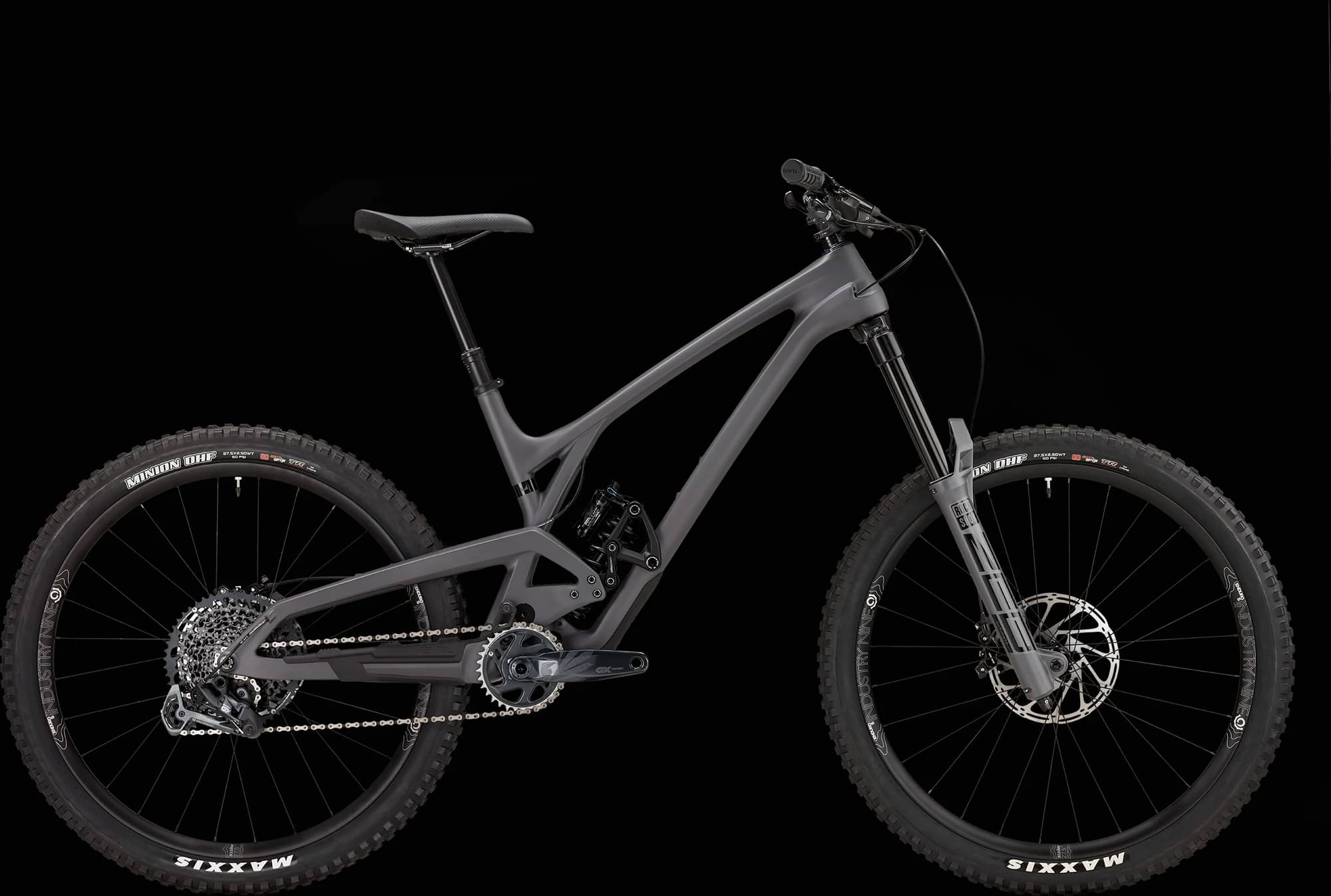

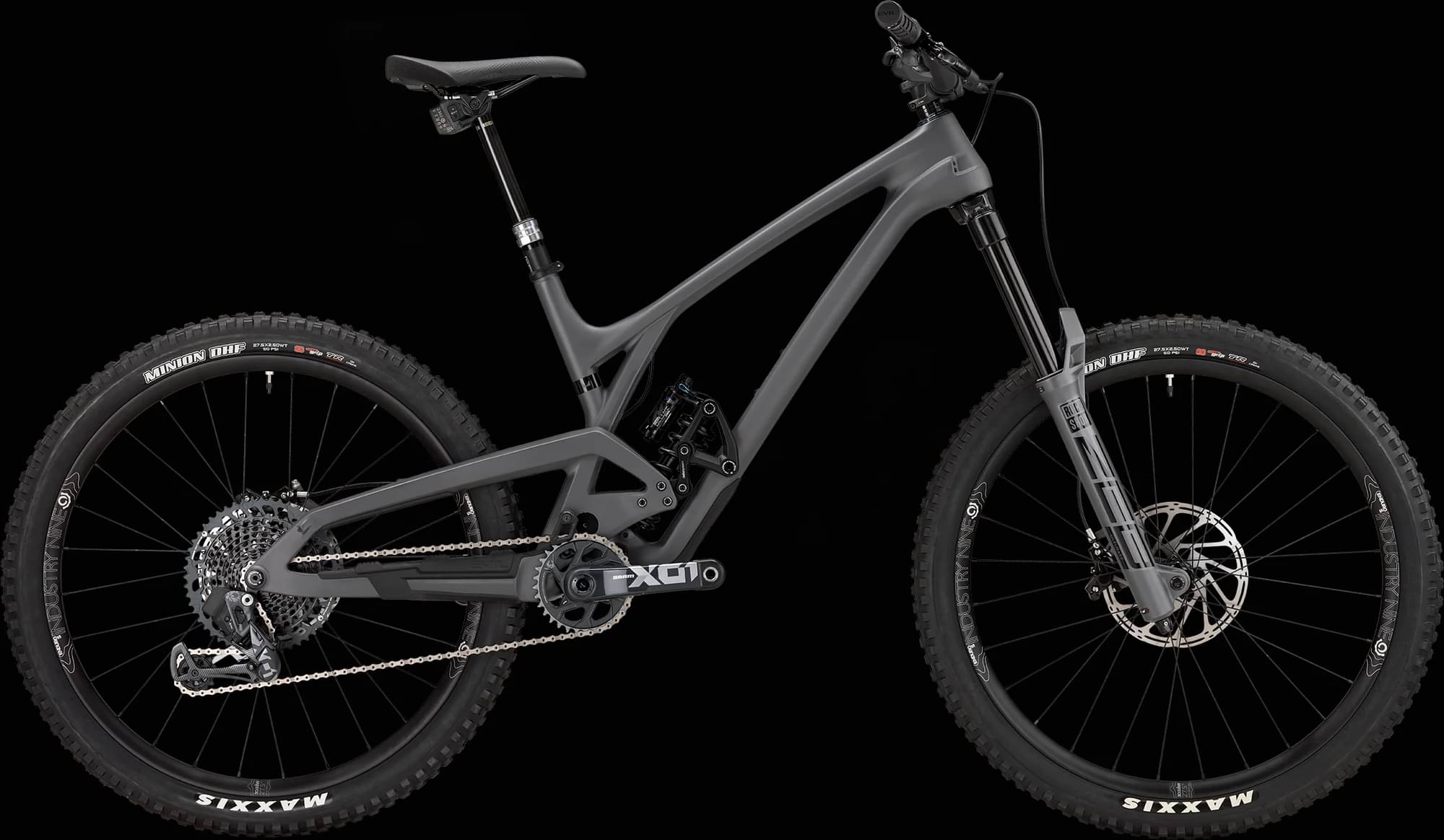

Evil Insurgent V2 SRAM GX MECHANICAL I9 HYDRA 2023
2023 Mountain
Estimate price |
8,257$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 168mm -
Fork RockShox ZEB Ultimate
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing Integrated Chain Guide, Threaded BB, UDH Compatible
Suspension Fork
Rockshox ZEB Ultimate, Charger 2.1 RC2, 180mm Travel, 44mm Offset
Rear Shock
Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320, S/M: 350lbs, L/XL 400lbs
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12sp
Shift Levers
SRAM GX Eagle, 12sp
Cassette
SRAM XG-1275-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
Crank
SRAM GX Eagle DUB, SUPERBOOST+, 170mm Direct Mount 32t, 56.5mm Chainline, Lunar
Bottom Bracket
SRAM DUB 73mm BSA
Chain
SRAM GX Eagle w/Powerlock
Wheels
Rims
Industry Nine Enduro S Hydra 27.5 Internal Width: 30.5mm, Hub: 110x15mm
Tires
Maxxis Minion DHF EXO TR, 27.5x2.5
Brakes
Brakes
Mechanical Disc
Cockpit
Stem
Evil 12 Gauge, Clamp: 35mm, Length: 45mm
Handlebar
Evil Boomstick 7075 Alloy, Backsweep: 8°, Upsweep: 5° Clamp: 35mm, Rise: 35mm, Width: 810mm
Grips
Evil Palmela Handerson lock-on
Headset
Works Components 1 Degree Angleset
Seat
Saddle
WTB Volt Pro
Seatpost
Bike Yoke Revive, S:125mm, M: 160mm, L:185mm XL: 213mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | SM Low | MD Low | MD Low | LG Low | LG Low | XL Low | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.374 mm | 1.342 mm | 1.343 mm | 1.313 mm | 1.311 mm | 1.285 mm | 1.281 mm | 1.256 mm |
| Bottom Bracket Height | 341 mm | 349 mm | 341 mm | 349 mm | 341 mm | 349 mm | 341 mm | 349 mm |
| Front Center | 781 mm | 781 mm | 803 mm | 803 mm | 828 mm | 828 mm | 853 mm | 853 mm |
| Rake | 44 mm | 43 mm | 44 mm | 44 mm | 44 mm | 45 mm | 44 mm | 45 mm |
| Trail | 120 mm | 116 mm | 120 mm | 116 mm | 120 mm | 116 mm | 120 mm | 116 mm |
| Stack | 617 mm | 612 mm | 626 mm | 621 mm | 637 mm | 632 mm | 648 mm | 643 mm |
| Reach | 449 mm | 456 mm | 466 mm | 473 mm | 486 mm | 492 mm | 506 mm | 512 mm |
| Top Tube Length | 593 mm | mm | 610 mm | mm | 631 mm | mm | 652 mm | mm |
| Seat Tube Angle | 77.5 ° | 78.2 ° | 77.5 ° | 78.2 ° | 77.5 ° | 78.2 ° | 77.5 ° | 78.2 ° |
| Head Tube Angle | 64.7 ° | 65.3 ° | 64.7 ° | 65.3 ° | 64.7 ° | 65.3 ° | 64.7 ° | 65.3 ° |
| Chainstay Length | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm |
| Wheelbase | 1213 mm | 1211 mm | 1235 mm | 1233 mm | 1260 mm | 1258 mm | 1285 mm | 1283 mm |
| Bottom Bracket Drop | 16 mm | 8 mm | 16 mm | 8 mm | 16 mm | 8 mm | 16 mm | 8 mm |
| Standover Height | 686 mm | 692 mm | 696 mm | 703 mm | 704 mm | 711 mm | 718 mm | 724 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
Insurgent V2 SRAM GX MECHANICAL I9 HYDRA belongs to the Evil Insurgent model. Evil released 48 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Evil Insurgent – LS SRAM GX MECHANICAL i9 HYDRA MX 2023 has a starting price of 6999$. Evil Insurgent LS SRAM X01 AXS Eagle I9 Hydra 2023 on the other hand is the most expensive at 9555$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 7644$. Comparing the average cost of an Enduro bike to this one, you will see that Insurgent V2 SRAM GX MECHANICAL I9 HYDRA price is 112.39% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The RockShox ZEB Ultimate is included from the factory. It has a travel distance of 180mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Rockshox Super Deluxe Coil Ultimate rear shock model, which has a travel of 168mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Insurgent V2 SRAM GX MECHANICAL I9 HYDRA model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Insurgent V2 SRAM GX MECHANICAL I9 HYDRA has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Dropper post
Evil Insurgent V2 SRAM GX MECHANICAL I9 HYDRA comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
