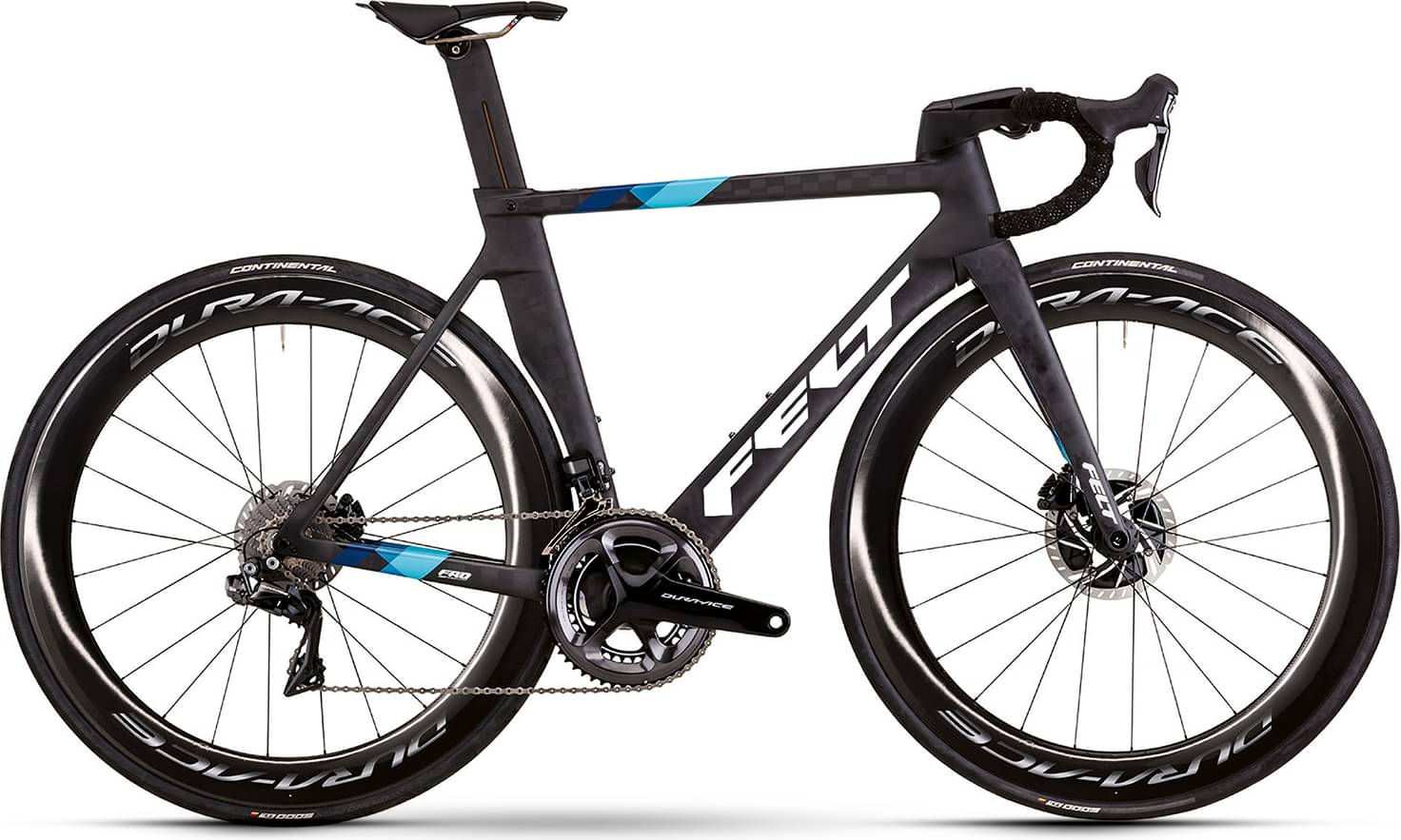

Felt AR FRD Ultimate Dura-Ace Di2 2023
2023 Road
Estimate price |
12,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
152cm - 169cm
51cm
166cm - 174cm
54cm
171cm - 179cm
56cm
176cm - 184cm
58cm
181cm - 189cm
61cm
186cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt AR 3.0, UHC Ultimate + TeXtreme carbon
Suspension Fork
Felt AR 3.0, UHC Ultimate + TeXtreme carbon fiber
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2, RD-R9250, 24-S
Front Derailleur
Shimano Dura-Ace Di2, FD-R9250
Shift Levers
Shimano Dura-Ace Di2, ST-R9270
Cassette
Shimano Dura-Ace CS-R9200, 11-30 T
Crank
Shimano Dura-Ace, FC-R9200, 52/36 T
Bottom Bracket
CeramicSpeed EVO386, PF,
Chain
Shimano CN-M9100
Wheels
Rims
Shimano Dura-Ace R9270, Tubeless ready, Center lock, 12x100/12x142 mm
Tires
Continental Grand Prix 5000 TR, 700x25 mm,
Brakes
Brakes
Front: Shimano BR-R9270, 2-piston, Hydraulic disc brake, Rear: Shimano BR-R9270, 2-piston, Hydraulic disc brake
Cockpit
Stem
Felt Sprint, -6 °
Handlebar
48 cm: PRO Vibe Aero Superlight 31.8 mm, 380 mm, 51 cm: PRO Vibe Aero Superlight 31.8 mm, 400 mm, 54, 56, 58, 61 cm: PRO Vibe Aero Superlight 31.8 mm, 420 mm
Headset
IS (NO.44)
Seat
Saddle
Prologo Dimension 143 Nack
Seatpost
Felt AeroRoad IL 2.0, 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.35 mm | 1.4 mm | 1.42 mm | 1.41 mm | 1.44 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 577 mm | 579 mm | 580 mm | 588 mm | 603 mm | 622 mm |
| Rake | 52 mm | 47 mm | 47 mm | 43 mm | 43 mm | 43 mm |
| Trail | 61 mm | 59 mm | 54 mm | 55 mm | 59 mm | 68 mm |
| Stack | 508 mm | 525 mm | 546 mm | 568 mm | 586 mm | 615 mm |
| Reach | 377 mm | 388 mm | 390 mm | 401 mm | 415 mm | 426 mm |
| Top Tube Length | 516 mm | 536 mm | 550 mm | 567 mm | 587 mm | 612 mm |
| Seat Tube Angle | 74.3 ° | 74.4 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 441 mm | 473 mm | 502.5 mm | 526 mm | 553 mm | 601 mm |
| Head Tube Angle | 71 ° | 72.1 ° | 73 ° | 73.5 ° | 73.5 ° | 73 ° |
| Head Tube Length | 97 mm | 111 mm | 130 mm | 150 mm | 167 mm | 197.5 mm |
| Chainstay Length | 415 mm | 415 mm | 417 mm | 417 mm | 417 mm | 419 mm |
| Wheelbase | 981 mm | 984 mm | 987 mm | 995 mm | 1010 mm | 1031 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 712 mm | 741 mm | 767 mm | 787 mm | 814 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 166 cm | 171 cm | 176 cm | 181 cm | 186 cm |
| Rider Max Height | 169 cm | 174 cm | 179 cm | 184 cm | 189 cm | 195 cm |
Model Overview
AR FRD Ultimate Dura-Ace Di2 is a Felt Ar model. 41 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Felt AR Advanced 105 2023 is the most economical model, with a starting price of 4199$. Felt AR FRD Ultimate RED eTap AXS 2023 on the other hand costs 15049$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 12799$. If we compare this with the average Aero bike cost we notice that the price is 203.94% higher.
Overview of components
Fork material
AR FRD Ultimate Dura-Ace Di2 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Felt AR FRD Ultimate Dura-Ace Di2 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The AR FRD Ultimate Dura-Ace Di2 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Felt AR FRD Ultimate Dura-Ace Di2 bike has 6 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
