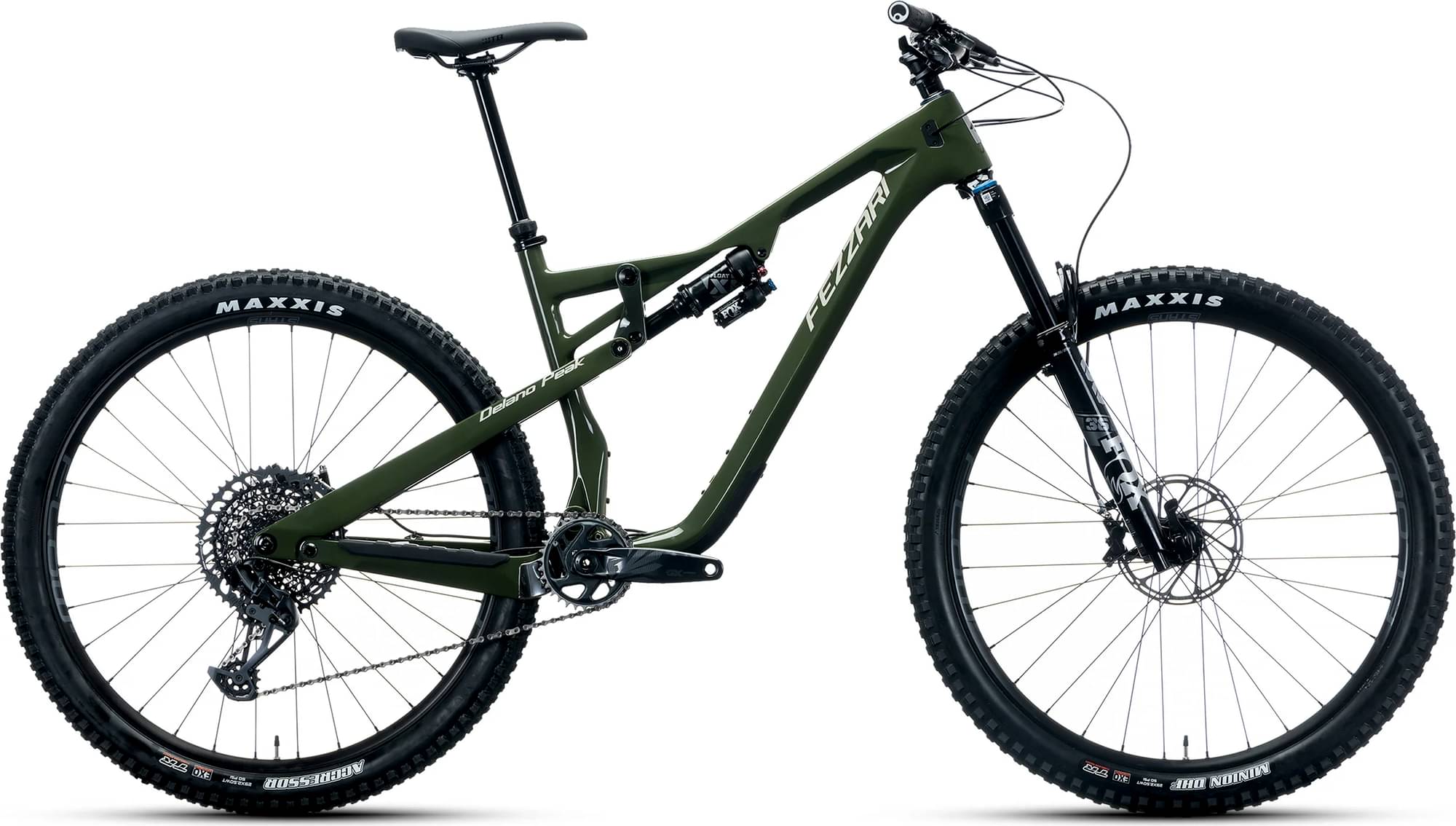

Fezzari Delano Peak Comp 2023
2023 Mountain
Estimate price |
3,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork DVO Diamond
-
Groupset SLX, Shimano -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Delano Peak, CleanCast Carbon TetraLink Full Suspension, 135mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
Suspension Fork
DVO Diamond D1 29 150mm
Rear Shock
DVO Topaz T2 210x50, 25x8mm/30x8mm, Custom Tuned
Drivetrain
Rear Derailleur
Shimano SLX 12-Speed
Front Derailleur
N/A
Shift Levers
Shimano SLX Trigger 12-Speed
Cassette
Shimano SLX, 10-51t, 12-Speed
Crank
Shimano FC-MT510-1
Bottom Bracket
Shimano BB-MT501 English Thread
Chain
Shimano SLX 12-Speed
Pedals
Available Separately
Wheels
Front Hub
Bear Pawls Sealed Bearings; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, MicroSpline driver
Rear Hub
Bear Pawls Sealed Bearings; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, MicroSpline driver
Rims
WTB i29, 29, 32 Hole, Disc Specific, Tubeless Ready
Spokes
Sapim Race
Tires
Maxxis Minion DHF 29x2.5WT, EXO, Tubeless Ready. Aggressor 29x2.5WT, EXO, Tubeless Ready
Brakes
Brakes
SRAM DB8, HS2 180/180mm F/R rotors
Cockpit
Stem
Fezzari Charger CNC 35 stem
Handlebar
Fezzari Team 35mm bar-customized sizing through 23-Point Custom Setup
Headset
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
Seat
Saddle
WTB Volts
Seatpost
X-Fusion Manic Dropper- customized sizing through 23-Point Custom Setup
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.341 mm | 1.308 mm | 1.284 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 744 mm | 777 mm | 801 mm | 827 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 124 mm | 134 mm | 134 mm |
| Stack | 610 mm | 610 mm | 628 mm | 642 mm |
| Reach | 430 mm | 455 mm | 480 mm | 500 mm |
| Top Tube Length | 560 mm | 593 mm | 613 mm | 637 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1176 mm | 1209 mm | 1234 mm | 1260 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 734 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Delano Peak Comp completes the Fezzari Delano model. 40 bikes variations carry this model name so far. You can easily view all of the Fezzari Delano bikes models from 2023, here.
Model range prices
Fezzari Delano Peak Comp 2023 is the most affordable bike of this model and has a price of 3899$. On the other hand, Fezzari Delano Peak Team XX Transmission 2023, is the most expensive and costs 7999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Fezzari released this model in 2023, its price was 3899$. Doing a quick comparison, we notice that Delano Peak Comp price is 41.17% higher than the average cost of a Trail bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The DVO Diamond is included from the factory. It has a travel distance of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the DVO Topaz T2 210×50 model, with a travel of 135mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Delano Peak Comp 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Delano Peak Comp has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Fezzari Delano Peak Comp comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
