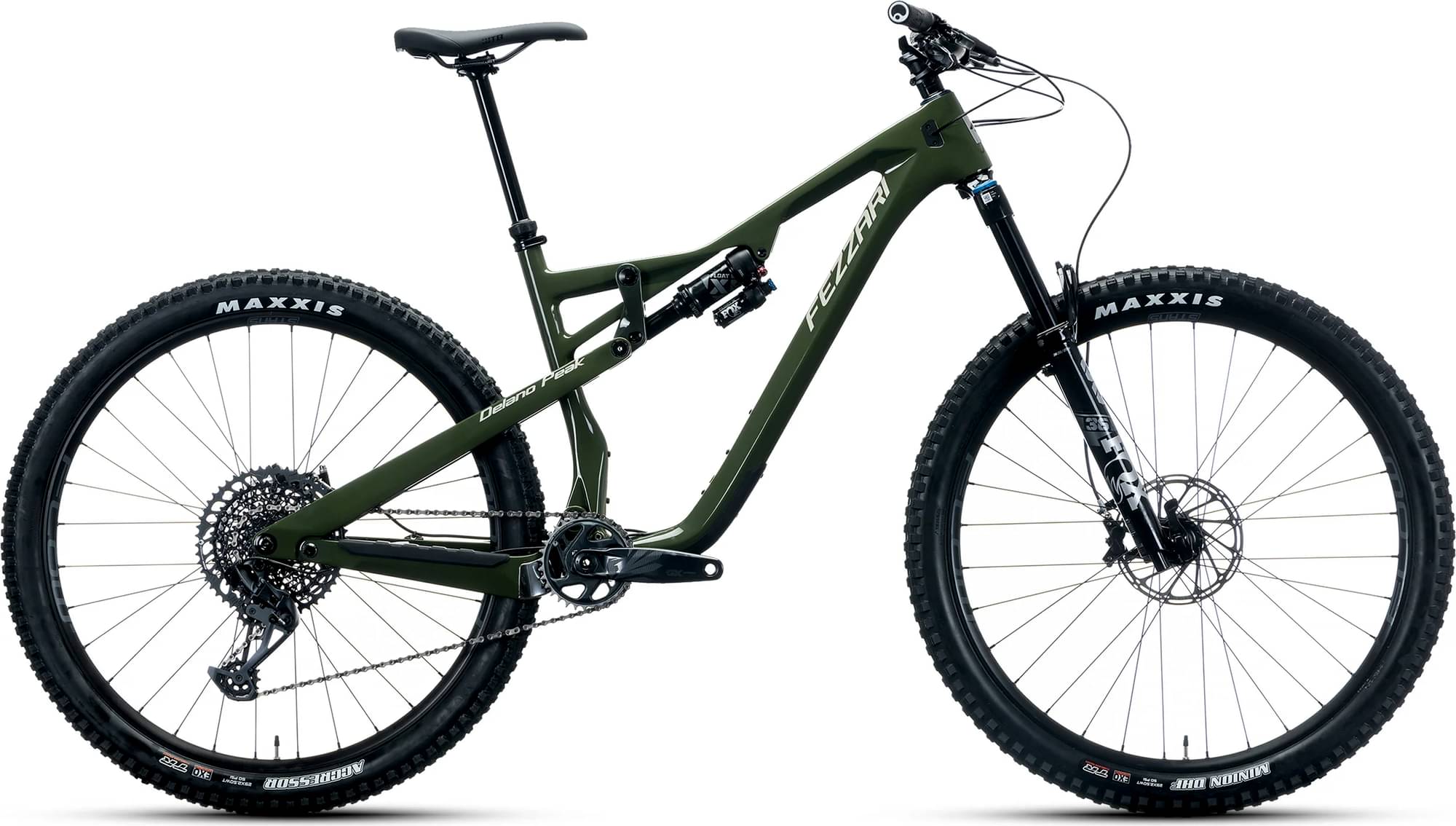

Fezzari Delano Peak Team XX Transmission 2023
2023 Mountain
Estimate price |
7,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork Fox Factory Float 36
-
Groupset XX Eagle Transmission, SRAM -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Delano Peak, CleanCast Carbon TetraLink Full Suspension, 135mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
Suspension Fork
Fox 36 Factory, 150mm travel, Grip 2 Damper, 44mm offset
Rear Shock
Fox Float X, Factory, 3 position 210x50, 25x8mm/30x8mm, Custom Tuned
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission 12-Speed
Front Derailleur
N/A
Shift Levers
SRAM AXS POD 12-Speed
Cassette
SRAM XS-1297 XX Eagle, 10-52t, 12-speed
Crank
SRAM XX Eagle Dual Guard, DUB Wide-customized sizing through 23-Point Custom Setup
Bottom Bracket
SRAM Dub English Thread
Chain
SRAM XX Eagle Transmission Flattop 12-speed
Pedals
Available Separately
Wheels
Front Hub
F: Industry Nine 1/1 Disc, 15x110 thru axle, R: Industry Nine 1/1 Disc, 12x148 thru axle, XD
Rear Hub
F: Industry Nine 1/1 Disc, 15x110 thru axle, R: Industry Nine 1/1 Disc, 12x148 thru axle, XD
Rims
Enve AM30 Carbon, 29, 28 Hole, Disc Specific, Tubeless Ready
Spokes
Sapim Race
Tires
Maxxis Minion DHF 29x2.5WT, EXO, Tubeless Ready. DHR II 29x2.4, EXO, Tubeless Ready
Brakes
Brakes
SRAM CODE Ultimate Stealth, HS2 200/180mm F/R rotors
Cockpit
Stem
Fezzari Charger CNC 35 stem
Handlebar
OneUp Carbon E-Bar 35mm-customized sizing through 23-Point Custom Setup
Headset
Cane Creek 40 Series ZS Tapered ZS44 ZS56/40
Seat
Saddle
Ergon SM10
Seatpost
Fox Transfer Factory- customized sizing through 23-Point Custom Setup
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.341 mm | 1.308 mm | 1.284 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 744 mm | 777 mm | 801 mm | 827 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 124 mm | 134 mm | 134 mm |
| Stack | 610 mm | 610 mm | 628 mm | 642 mm |
| Reach | 430 mm | 455 mm | 480 mm | 500 mm |
| Top Tube Length | 560 mm | 593 mm | 613 mm | 637 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1176 mm | 1209 mm | 1234 mm | 1260 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 734 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Delano Peak Team XX Transmission completes the Fezzari Delano model. Fezzari launched 40 bikes of this model so far. Take a sneak peek at all Fezzari Delano bikes models from 2023, by clicking here.
Model range prices
Fezzari Delano Peak Comp 2023 is the most economical model, with a starting price of 3899$. Fezzari Delano Peak Team XX Transmission 2023 on the other hand costs 7999$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 7999$. Comparing the average cost of a Trail bike to this one, you will see that Delano Peak Team XX Transmission price is 189.61% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Delano Peak Team XX Transmission components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Delano Peak Team XX Transmission has a rear shock with a travel of 135mm. The model Fox Float X is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Delano Peak Team XX Transmission 2023 bike is equipped with 29″ carbon wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Fezzari Delano Peak Team XX Transmission comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
