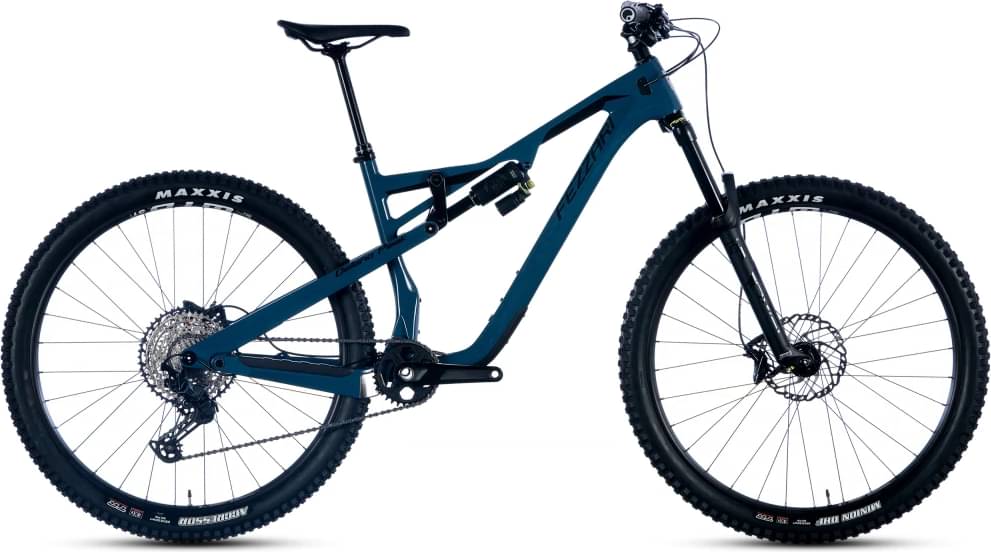

Fezzari Delano Peak Comp Eagle 2022
2022 Mountain
Estimate price |
3,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork DVO Diamond
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Delano Peak CleanCast Carbon TetraLink Full Suspension, 135mm travel. Internal Future-Proof cable routing on top of downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (S,M,L,XL)
Suspension Fork
DVO Diamond D1 29 150mm, 44mm offset
Rear Shock
DVO Topaz T2 210x50, 25x8mm/30x8mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12 speed
Front Derailleur
N/A
Shift Levers
SRAM NX Eagle, 12 speed
Cassette
SRAM NX Eagle PG-1230, 12 speed
Crank
SRAM X1 1000 Eagle Dub
Bottom Bracket
SRAM Dub 73 mm English Thread
Chain
SRAM NX Eagle, 12 speed
Pedals
Available Separately
Wheels
Front Hub
Front: Bear Pawls MTB Disc, 15x110 Rear: Bear Pawls MTB Disc, 12x148 HG Freehub
Rear Hub
Front: Bear Pawls MTB Disc, 15x110 Rear: Bear Pawls MTB Disc, 12x148 HG Freehub
Rims
Stan's Flow D 29", 32 hole, disc specific, tubeless ready
Spokes
15G Stainless black, brass nipples
Tires
Front: Maxxis Minion DHF 29x2.5" 60 TPI, EXO, Tubeless Ready, Rear: Maxxis Aggressor 29x2.5" 60 TPI, EXO, Tubeless Ready
Brakes
Brakes
SRAM G2 R, 180/180mm
Brake Levers
SRAM G2 R
Cockpit
Stem
Fezzari FRD Charger 35, CNC 6061-T6 Alloy, 35mm clamp
Handlebar
Fezzari FRD Charger35, alloy, 35mm clamp, 800mm wide, 15mm riser, 9 degree backsweep,5 degree upsweep
Headset
Cane Creek 40, ZS44/28.6 ZS56/40
Seat
Saddle
Selle Italia X Superflow
Seatpost
PNW Rainier Gen 3 Dropper with Puget Remote (Travel adjusted with 23-point customs fit after checkout)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.341 mm | 1.308 mm | 1.284 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 744 mm | 777 mm | 801 mm | 827 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 124 mm | 134 mm | 134 mm |
| Stack | 610 mm | 610 mm | 628 mm | 642 mm |
| Reach | 430 mm | 455 mm | 480 mm | 500 mm |
| Top Tube Length | 560 mm | 593 mm | 613 mm | 637 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1176 mm | 1209 mm | 1234 mm | 1260 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 734 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Delano Peak Comp Eagle belongs to the Fezzari Delano model. Fezzari launched 40 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Fezzari Delano Peak Comp Eagle 2022 is the cheapest bike model and costs 3799$. Fezzari Delano Peak Pro 2022 is the most expensive one and costs 6899$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Fezzari released this model in 2022, its price was 3799$. Comparing this to the average Trail bike price, we see that the price is 37.55% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the DVO Diamond model. The travel on this model is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the DVO Topaz T2 210×50 model, with a travel of 135mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Delano Peak Comp Eagle 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Delano Peak Comp Eagle has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Fezzari Delano Peak Comp Eagle comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
