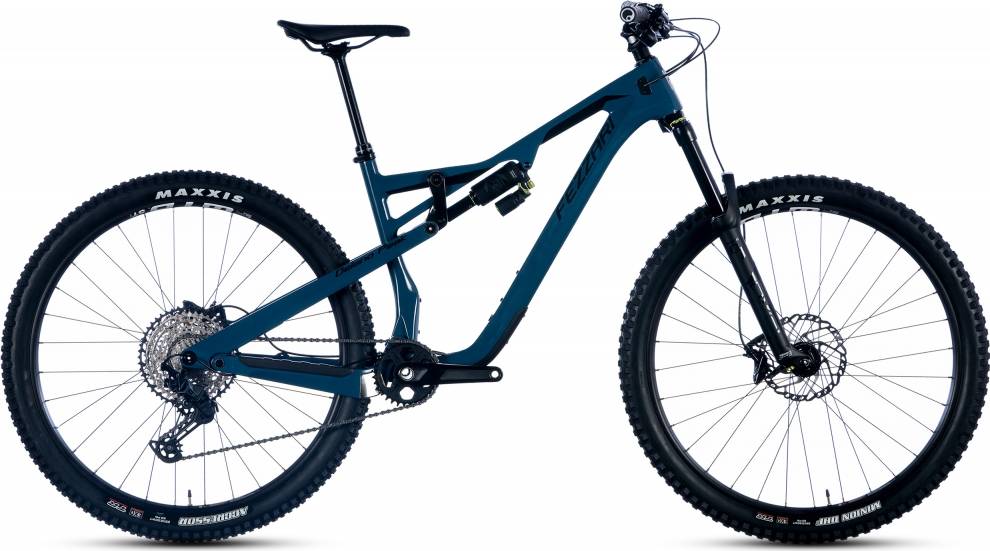

Fezzari Delano Peak Comp GA Link High 2021
2021 Mountain
Estimate price |
3,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork DVO Diamond
-
Groupset SLX, Shimano -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari ST135 CleanCast Carbon TetraLink Full Suspension, 135mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
Suspension Fork
DVO Diamond D1 29 150mm
Rear Shock
DVO Topaz T3 210x50, 25x8mm/30x8mm
Drivetrain
Rear Derailleur
Shimano SLX, RD-M7100, HG+ SGS, 12 Speed
Front Derailleur
N/A
Shift Levers
Shimano SLX, SL-M7100, HG+ 12 Speed
Cassette
Shimano SLX, CS-M7100, HG+ 10-51T, 12 Speed
Crank
Shimano FC-MT510
Bottom Bracket
Shimano English Thread
Chain
Shimano SLX, CN-M7100, HG+, 12 Speed
Pedals
Available Separately
Wheels
Front Hub
Front: Bear Pawls MTB Disc, 15x110 Rear: Bear Pawls MTB Disc, 12x148 Microspline Freehub
Rear Hub
Front: Bear Pawls MTB Disc, 15x110 Rear: Bear Pawls MTB Disc, 12x148 Microspline Freehub
Rims
WTB STP i29 TCS 29", 32 hole, disc specific, tubeless ready
Spokes
15G Stainless black, brass nipples
Tires
Front: Maxxis Minion DHF 29x2.5" 60 TPI, EXO, Tubeless Ready, Rear: Maxxis Aggressor 29x2.5" 60 TPI, EXO, Tubeless Ready
Brakes
Brakes
Shimano BL-M6100, 4 piston, 180mm SM-RT66 Rotors
Brake Levers
Shimano BL-M6100,
Cockpit
Stem
Fezzari FRD Charger35, CNC 6061-T6 Alloy, 35mm clamp
Handlebar
Fezzari FRD Charger35, alloy, 35mm clamp, 800mm wide, 15mm riser, 9 degree backsweep,5 degree upsweep
Headset
Cane Creek 40, ZS44/28.6 ZS56/40
Seat
Saddle
Selle Italia Model X
Seatpost
X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.385 mm | 1.291 mm | 1.287 mm | 1.259 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 743 mm | 776 mm | 801 mm | 828 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 129 mm | 129 mm | 129 mm |
| Stack | 603.5 mm | 603.5 mm | 621.8 mm | 635.5 mm |
| Reach | 435.6 mm | 467.4 mm | 483.3 mm | 504.8 mm |
| Top Tube Length | 560 mm | 593 mm | 612.9 mm | 637 mm |
| Seat Tube Angle | 77.9 ° | 77.9 ° | 77.9 ° | 77.9 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 460 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1175 mm | 1208 mm | 1232 mm | 1260 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm | 22 mm |
| Standover Height | 734 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Delano Peak Comp GA Link High is part of the Fezzari Delano model. There are 40 bikes that carry this model name. You can easily view all of the Fezzari Delano bikes models from 2021, here.
Model range prices
The most economical model, the Fezzari Delano Peak Comp Eagle GA Link High 2021 has a starting price of 3599$. Fezzari Delano Peak Team AXS GA Link Low 2021 on the other hand is the most expensive at 8999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 3599$. Comparing this to the average Trail bike price, we see that the price is 30.3% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
Fezzari Delano Peak Comp GA Link High 2021 bike is equipped with the DVO Diamond fork, and has 150mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the DVO Topaz T3 210×50 rear shock model, which has a travel of 135mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Delano Peak Comp GA Link High model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Fezzari Delano Peak Comp GA Link High has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Fezzari Delano Peak Comp GA Link High bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Fezzari model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
