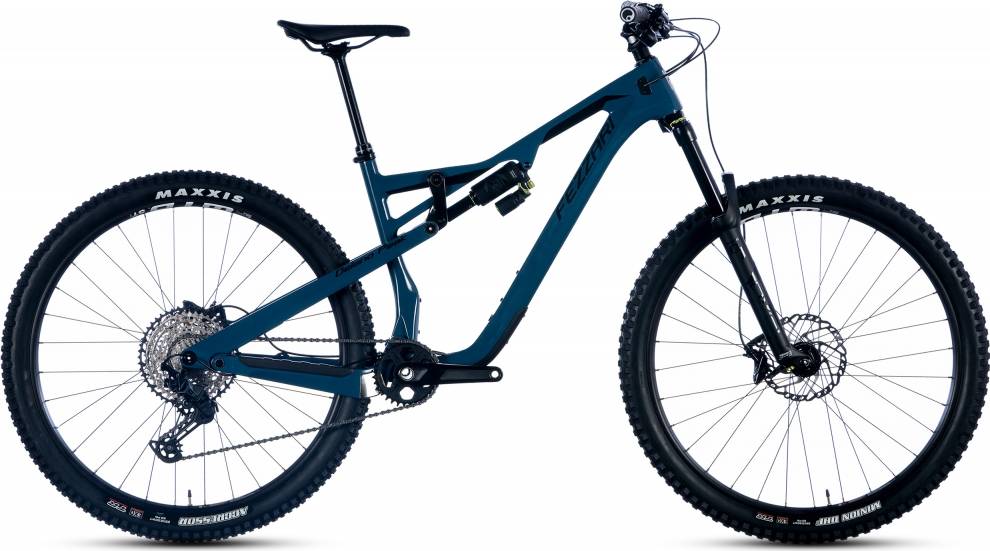

Fezzari Delano Peak Comp GA Link Low 2021
2021 Mountain
Estimate price |
3,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork DVO Diamond
-
Groupset SLX, Shimano -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari ST135 CleanCast Carbon TetraLink Full Suspension, 135mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
Suspension Fork
DVO Diamond D1 29 150mm
Rear Shock
DVO Topaz T3 210x50, 25x8mm/30x8mm
Drivetrain
Rear Derailleur
Shimano SLX, RD-M7100, HG+ SGS, 12 Speed
Front Derailleur
N/A
Shift Levers
Shimano SLX, SL-M7100, HG+ 12 Speed
Cassette
Shimano SLX, CS-M7100, HG+ 10-51T, 12 Speed
Crank
Shimano FC-MT510
Bottom Bracket
Shimano English Thread
Chain
Shimano SLX, CN-M7100, HG+, 12 Speed
Pedals
Available Separately
Wheels
Front Hub
Front: Bear Pawls MTB Disc, 15x110 Rear: Bear Pawls MTB Disc, 12x148 Microspline Freehub
Rear Hub
Front: Bear Pawls MTB Disc, 15x110 Rear: Bear Pawls MTB Disc, 12x148 Microspline Freehub
Rims
WTB STP i29 TCS 29", 32 hole, disc specific, tubeless ready
Spokes
15G Stainless black, brass nipples
Tires
Front: Maxxis Minion DHF 29x2.5" 60 TPI, EXO, Tubeless Ready, Rear: Maxxis Aggressor 29x2.5" 60 TPI, EXO, Tubeless Ready
Brakes
Brakes
Shimano BL-M6100, 4 piston, 180mm SM-RT66 Rotors
Brake Levers
Shimano BL-M6100,
Cockpit
Stem
Fezzari FRD Charger35, CNC 6061-T6 Alloy, 35mm clamp
Handlebar
Fezzari FRD Charger35, alloy, 35mm clamp, 800mm wide, 15mm riser, 9 degree backsweep,5 degree upsweep
Headset
Cane Creek 40, ZS44/28.6 ZS56/40
Seat
Saddle
Selle Italia Model X
Seatpost
X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.341 mm | 1.308 mm | 1.284 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 744 mm | 777 mm | 801 mm | 827 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 124 mm | 134 mm | 134 mm |
| Stack | 610 mm | 610 mm | 628 mm | 642 mm |
| Reach | 430 mm | 455 mm | 480 mm | 500 mm |
| Top Tube Length | 560 mm | 593 mm | 613 mm | 637 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1176 mm | 1209 mm | 1234 mm | 1260 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 734 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Delano Peak Comp GA Link Low is part of the Fezzari Delano model. There are 40 bikes that carry this model name. Take a sneak peek at all Fezzari Delano bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Fezzari Delano Peak Comp Eagle GA Link High 2021 has a starting price of 3599$. Fezzari Delano Peak Team AXS GA Link Low 2021 on the other hand is the most expensive at 8999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Fezzari released this model in 2021, its price was 3599$. If we compare this with the average Trail bike cost we notice that the price is 30.3% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Delano Peak Comp GA Link Low components
Fork
Fezzari Delano Peak Comp GA Link Low 2021 bike is equipped with the DVO Diamond fork, and has 150mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is DVO Topaz T3 210×50, with a travel distance of 135mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Delano Peak Comp GA Link Low bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Delano Peak Comp GA Link Low has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Fezzari Delano Peak Comp GA Link Low comes with a dropper post. Therefore, climbing or descending will be a breeze.
