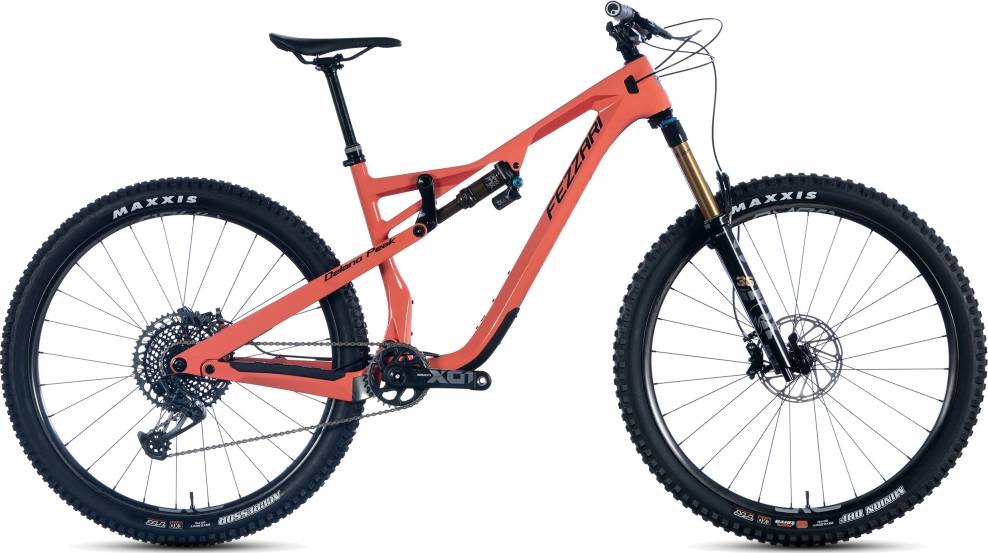

Fezzari Delano Peak Pro AXS GA Link Low 2021
2021 Mountain
Estimate price |
6,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle AXS, X01 -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari ST135 CleanCast Carbon TetraLink Full Suspension, 135mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
Suspension Fork
Fox 36,Factory, 150mm travel, Grip 2 Damper, 44mm offset
Rear Shock
Fox Float DPX2, Factory, 3 position, 210x50, 25x8mm/30x8mm bearing mount
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS Electronic
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle AXS Wireless
Cassette
SRAM XG 1295, 12 speed Eagle, 10-52T
Crank
SRAM X01 Carbon Dub, 3mm offset for 148 Boost chainline
Bottom Bracket
SRAM Dub 73 mm English Thread
Chain
SRAM X01 Eagle, 12-spd
Pedals
Available Separately
Wheels
Front Hub
Industry9 1/1, 110x15/148x12, XD driver, Centerlock
Rear Hub
Industry9 1/1, 110x15/148x12, XD driver, Centerlock
Rims
Crank Brothers Synthesis 11, Carbon
Spokes
Sapim D-light
Tires
Front: Maxxis Minion DHF 29x2.5" 60 TPI, EXO, Tubeless Ready, Rear: Maxxis Aggressor 29x2.5" 60 TPI, EXO, Tubeless Ready
Brakes
Brakes
SRAM Code RSC, 180/180mm Centerline Rotors
Brake Levers
SRAM Code RSC with reach adjust, Swing-link, and pad contact adjust
Cockpit
Stem
Fezzari FRD Charger35, CNC 6061-T6 Alloy, 35mm clamp
Handlebar
Enve M7 Carbon, 35mm 800mm, customized sizing through 23-Point Custom Setup
Headset
Cane Creek 40, ZS44/28.6 ZS56/40
Seat
Saddle
Selle Italia Model X
Seatpost
PNW Bachelor Internal Dropper with Loam Lever Remote (Travel adjusted with 23-point customs fit after checkout)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.341 mm | 1.308 mm | 1.284 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 744 mm | 777 mm | 801 mm | 827 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 124 mm | 134 mm | 134 mm |
| Stack | 610 mm | 610 mm | 628 mm | 642 mm |
| Reach | 430 mm | 455 mm | 480 mm | 500 mm |
| Top Tube Length | 560 mm | 593 mm | 613 mm | 637 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1176 mm | 1209 mm | 1234 mm | 1260 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 734 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Delano Peak Pro AXS GA Link Low is a Fezzari Delano model. Fezzari launched 40 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Fezzari Delano Peak Comp Eagle GA Link High 2021 is the most economical model, with a starting price of 3599$. Fezzari Delano Peak Team AXS GA Link Low 2021 on the other hand costs 8999$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Fezzari Delano Peak Pro AXS GA Link Low price was 6999$. Comparing this to the average Trail bike price, we see that the price is 153.4% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Delano Peak Pro AXS GA Link Low comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Delano Peak Pro AXS GA Link Low has a rear shock with a travel of 135mm. The model Fox Float DPX2 is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Delano Peak Pro AXS GA Link Low 2021 bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Fezzari Delano Peak Pro AXS GA Link Low comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
