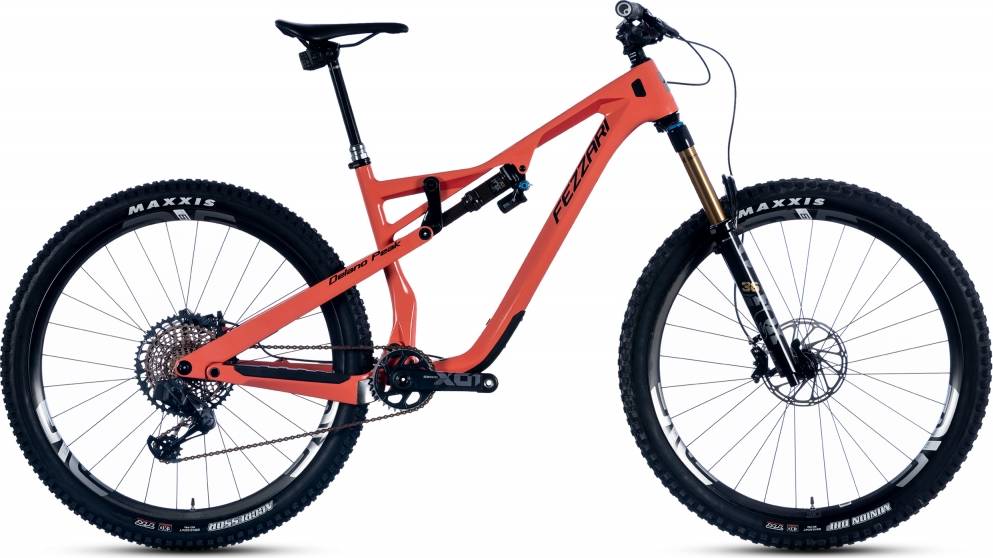

Fezzari Delano Peak Team AXS GA Link High 2021
2021 Mountain
Estimate price |
8,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari ST135 CleanCast Carbon TetraLink Full Suspension, 135mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
Suspension Fork
Fox 36,Factory, 150mm travel, Grip 2 Damper, 44mm offset
Rear Shock
Fox Float DPX2, Factory, 3 position, 210x50, 25x8mm/30x8mm bearing mount
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS 12-spd
Front Derailleur
N/A
Shift Levers
SRAM Eagle AXS Wireless Controller
Cassette
SRAM XG 1299 10-52T
Crank
SRAM X01 Eagle Carbon DUB
Bottom Bracket
SRAM DUB English thread, 73mm
Chain
SRAM XX1 Eagle
Pedals
Available Separately
Wheels
Front Hub
Industry9 Hydra, 110x15/148x12, XD driver, Centerlock
Rear Hub
Industry9 Hydra, 110x15/148x12, XD driver, Centerlock
Rims
Enve M630 29er
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHF 29x2.5" 60 TPI, EXO, Tubeless Ready, Rear: Maxxis Aggressor 29x2.5" 60 TPI, EXO, Tubeless Ready
Brakes
Brakes
SRAM Code RSC, Centerline 180mm rotors
Brake Levers
SRAM Code RSC
Cockpit
Stem
Fezzari FRD Charger35, CNC 6061-T6 Alloy, 35mm clamp
Handlebar
Enve M7 Carbon, 35mm 800mm, customized sizing through 23-Point Custom Setup
Headset
Cane Creek 40, ZS44/28.6 ZS56/40
Seat
Saddle
Ergon SM Stealth
Seatpost
RockShox Rever AXS Wireless (travel length is customized through 23-point custom setup)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.385 mm | 1.291 mm | 1.287 mm | 1.259 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 743 mm | 776 mm | 801 mm | 828 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 129 mm | 129 mm | 129 mm |
| Stack | 603.5 mm | 603.5 mm | 621.8 mm | 635.5 mm |
| Reach | 435.6 mm | 467.4 mm | 483.3 mm | 504.8 mm |
| Top Tube Length | 560 mm | 593 mm | 612.9 mm | 637 mm |
| Seat Tube Angle | 77.9 ° | 77.9 ° | 77.9 ° | 77.9 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 460 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1175 mm | 1208 mm | 1232 mm | 1260 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm | 22 mm |
| Standover Height | 734 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Delano Peak Team AXS GA Link High is part of the Fezzari Delano model. There are 40 bikes that carry this model name. You can easily view all of the Fezzari Delano bikes models from 2021, here.
Model range prices
Fezzari Delano Peak Comp Eagle GA Link High 2021 is the most affordable bike of this model and has a price of 3599$. On the other hand, Fezzari Delano Peak Team AXS GA Link Low 2021, is the most expensive and costs 8999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8999$. Doing a quick comparison, we notice that Delano Peak Team AXS GA Link High price is 225.81% higher than the average cost of a Trail bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The Delano Peak Team AXS GA Link High comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Delano Peak Team AXS GA Link High has a rear shock with a travel of 135mm. The model Fox Float DPX2 is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Fezzari Delano Peak Team AXS GA Link High 2021, has a 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Fezzari Delano Peak Team AXS GA Link High has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Delano Peak Team AXS GA Link High comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
