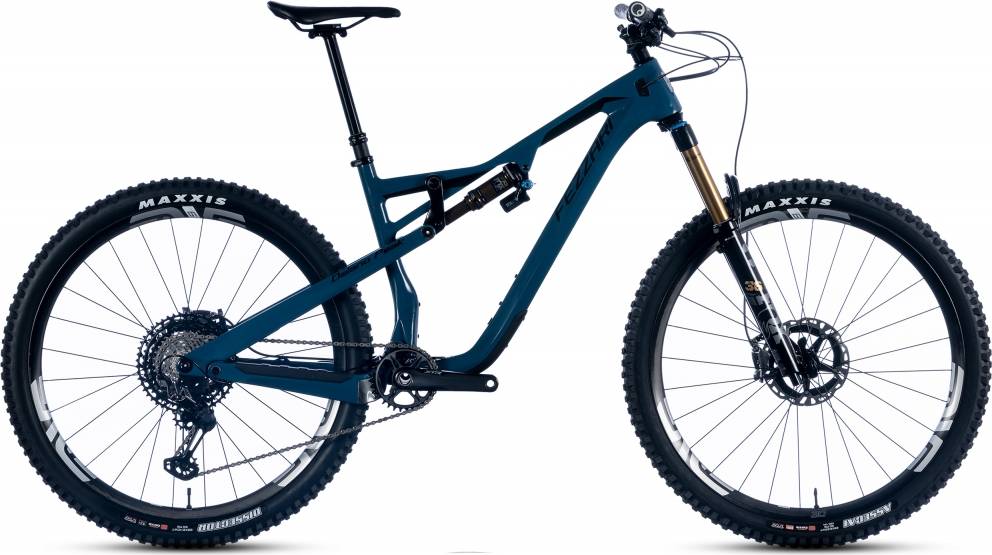

Fezzari Delano Peak Team XTR GA Link Low 2021
2021 Mountain
Estimate price |
7,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari ST135 CleanCast Carbon TetraLink Full Suspension, 135mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (M,L,XL)
Suspension Fork
Fox 36,Factory, 150mm travel, Grip 2 Damper, 44mm offset
Rear Shock
Fox Float DPX2, Factory, 3 position, 210x50, 25x8mm/30x8mm bearing mount
Drivetrain
Rear Derailleur
Shimano XTR 9100 12-spd
Front Derailleur
N/A
Shift Levers
Shimano XTR 9100 12-spd
Cassette
Shimano XTR 9100 10-51T 12-spd
Crank
Shimano XTR 9120
Bottom Bracket
Shimano XTR 9100 English Thread
Chain
Shimano XTR 9100
Pedals
Available Separately
Wheels
Front Hub
Industry9 Hydra, 110x15/148x12, MicroSpline driver, Centerlock
Rear Hub
Industry9 Hydra, 110x15/148x12, MicroSpline driver, Centerlock
Rims
Enve M630 29er
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHF 29x2.5" 60 TPI, EXO, Tubeless Ready, Rear: Maxxis Aggressor 29x2.5" 60 TPI, EXO, Tubeless Ready
Brakes
Brakes
Shimano XTR 9120 4-piston, 180/180mm XTR MT900 Rotors
Brake Levers
Shimano XTR 9100
Cockpit
Stem
Fezzari FRD Charger35, CNC 6061-T6 Alloy, 35mm clamp
Handlebar
Enve M7 Carbon, 35mm 800mm, customized sizing through 23-Point Custom Setup
Headset
Cane Creek 40, ZS44/28.6 ZS56/40
Seat
Saddle
Ergon SM Stealth
Seatpost
Fox Transfer Factory Internal Seatpost 31.6 125-170mm length customized through 23-point custom setup. Fox Factory seat post available with Fox suspension upgrade
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.341 mm | 1.308 mm | 1.284 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 744 mm | 777 mm | 801 mm | 827 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 124 mm | 134 mm | 134 mm |
| Stack | 610 mm | 610 mm | 628 mm | 642 mm |
| Reach | 430 mm | 455 mm | 480 mm | 500 mm |
| Top Tube Length | 560 mm | 593 mm | 613 mm | 637 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1176 mm | 1209 mm | 1234 mm | 1260 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 734 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Delano Peak Team XTR GA Link Low is part of the Fezzari Delano model. Fezzari launched 40 bikes of this model so far. You can easily view all of the Fezzari Delano bikes models from 2021, here.
Model range prices
Fezzari Delano Peak Comp Eagle GA Link High 2021 is the cheapest bike model and costs 3599$. Fezzari Delano Peak Team AXS GA Link Low 2021 is the most expensive one and costs 8999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Fezzari released this model in 2021, its price was 7999$. Doing a quick comparison, we notice that Delano Peak Team XTR GA Link Low price is 189.61% more expensive than the average cost of a Trail bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Delano Peak Team XTR GA Link Low components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Fezzari Delano Peak Team XTR GA Link Low bike has the Fox Float DPX2 model installed, and has a travel of 135mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Delano Peak Team XTR GA Link Low bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Delano Peak Team XTR GA Link Low comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Fezzari model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
