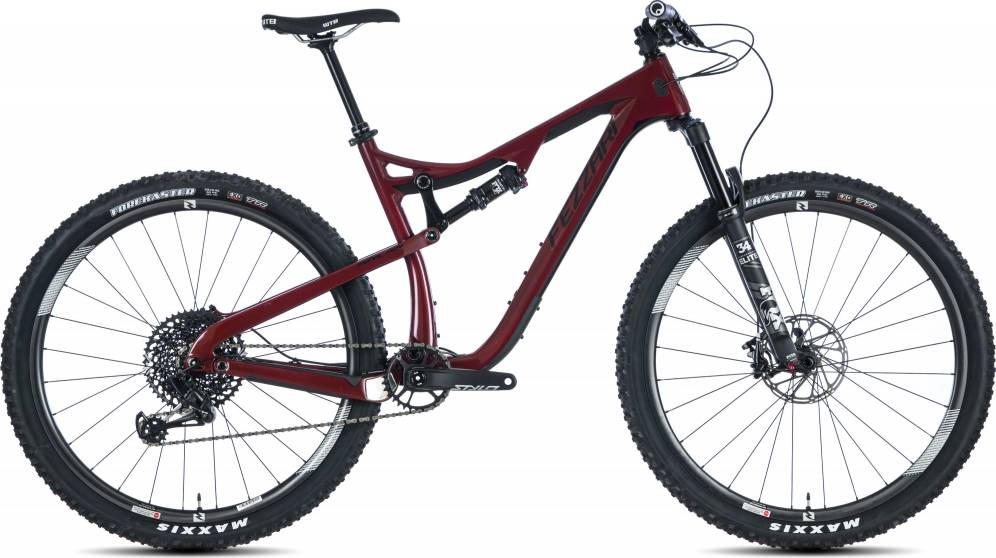

Fezzari Signal Peak Elite 29 2019
2019 Mountain
Estimate price |
3,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Performance Elite Float 34
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari ST12 CleanCast Carbon TetraLink Full Suspension, 120mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. FrameDefense Tech derailleur hanger. 2 Flush-mount bottle cages (all frame sizes)
Suspension Fork
Fox Float 34 Step-Cast 120mm travel, Performance Elite, Fit4 damper with external low-speed and rebound adjustments, 15x110 Axle
Rear Shock
Fox Float DPS, 3 position Evol air sleeve, Custom Tuned
Drivetrain
Rear Derailleur
SRAM GX Eagle 1x12, X-HORIZON, 12-speed, Type-3 roller bearing clutch, long cage
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle Trigger 12-speed
Cassette
SRAM XG-1275 GX Eagle, 10-50t, 12-speed
Crank
SRAM Stylo 6k Dub, 3mm offset for 148 Boost chainline
Bottom Bracket
SRAM Dub English Thread
Chain
SRAM GX Eagle 12-speed
Pedals
Available Separately
Wheels
Front Hub
Stan's Neo; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, XD driver
Rear Hub
Stan's Neo; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, XD driver
Rims
Stan's Arch MK3, 29", 32 hole, disc specific, tubeless ready; 27.5+ available after adding bike to cart
Spokes
Black Sapim Force
Tires
Maxxis Forekaster 29x2.35, 120 TPI,EXO Protection, Tubeless Ready
Brakes
Brakes
SRAM Level TL, SRAM Centerline 180mm/160mm F/R Rotors
Brake Levers
SRAM Level TL
Cockpit
Stem
Raceface Ride 35mm
Handlebar
Raceface Turbine R, 35mm clamp, 760-780mm length customized through 23-point custom setup
Headset
FSA No.57, integrated
Seat
Saddle
WTB Volt Race, Women: WTB Koda Comp, Customized through 23-point custom setup
Seatpost
X-Fusion Manic Dropper post, 125mm or 150mm travel customized through 23-point custom setup
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 717 mm | 735 mm | 755 mm | 775 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 612.2 mm | 616.9 mm | 626.2 mm | 635.4 mm |
| Reach | 436.4 mm | 452.3 mm | 468.7 mm | 485.1 mm |
| Top Tube Length | 599 mm | 616 mm | 635 mm | 654 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406 mm | 432 mm | 483 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1150 mm | 1168 mm | 1188 mm | 1208 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 783 mm | 790 mm | 794 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Signal Peak Elite 29 is part of the Fezzari Signal model. 60 bikes variations carry this model name so far. Take a sneak peek at all Fezzari Signal bikes models from 2019, by clicking here.
Model range prices
Fezzari Signal Peak Comp 29 2019 is the most economical model, with a starting price of 2999$. Fezzari Signal Peak Team Edition 27.5+ 2019 on the other hand costs 7849$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2019 and its price was 3999$. In conclusion, this bike price is 44.79% more expensive than the price of the average Trail bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Elite Float 34 model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Fox Float DPS model, with a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Fezzari Signal Peak Elite 29 2019, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Signal Peak Elite 29 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Fezzari Signal Peak Elite 29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Signal Peak Elite 29. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
