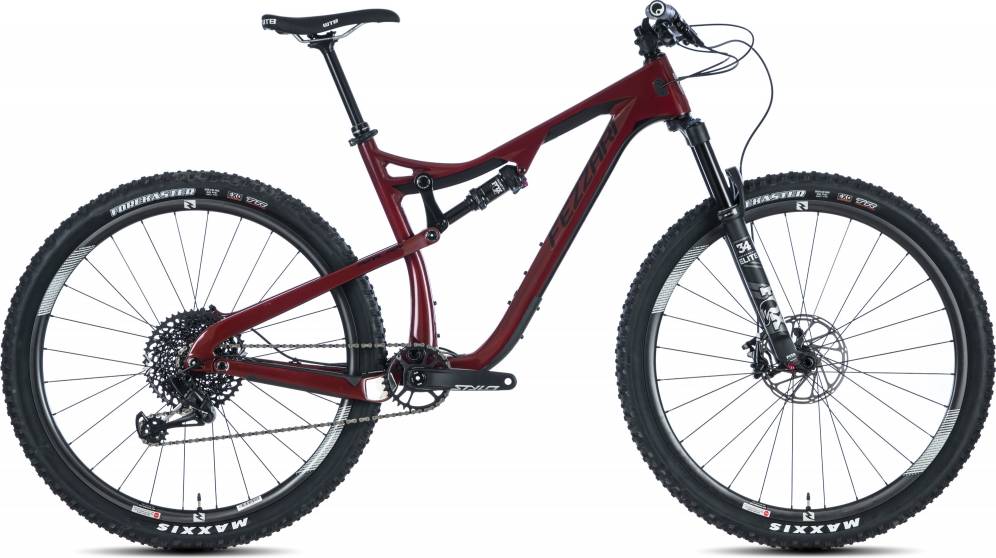

Fezzari Signal Peak Elite Race 27.5+ 2019
2019 Mountain
Estimate price |
4,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Performance Elite Float 34
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari ST12 CleanCast Carbon TetraLink Full Suspension, 120mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. FrameDefense Tech derailleur hanger. 2 Flush-mount bottle cages (all frame sizes)
Suspension Fork
Fox Float 34 Step-Cast 120mm travel, Performance Elite, Fit4 damper with external low-speed and rebound adjustments, 15x110 Axle
Rear Shock
Fox Float DPS, 3 position Evol air sleeve, Custom Tuned
Drivetrain
Rear Derailleur
SRAM GX Eagle 1x12, X-HORIZON, 12-speed, Type-3 roller bearing clutch, long cage
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle Trigger 12-speed
Cassette
SRAM XG-1275 GX Eagle, 10-50t, 12-speed
Crank
SRAM Stylo 6k Dub, 3mm offset for 148 Boost chainline
Bottom Bracket
SRAM Dub English Thread
Chain
SRAM GX Eagle 12-speed
Pedals
Available Separately
Wheels
Front Hub
Reynolds TR6 hubs, Sealed bearings, 5 degree engagement, XD Driver F: 110x15 Rear: 148x12, Centerlock
Rear Hub
Reynolds TR6 hubs, Sealed bearings, 5 degree engagement, XD Driver F: 110x15 Rear: 148x12, Centerlock
Rims
Reynold's TR 249 S Carbon, 24mm internal width; 27.5+ available after adding bike to cart
Spokes
Sapim CX Sprint
Tires
Maxxis Forekaster 29x2.35, 120 TPI,EXO Protection, Tubeless Ready
Brakes
Brakes
SRAM Level TL, SRAM Centerline 180mm/160mm F/R Rotors
Brake Levers
SRAM Level TL
Cockpit
Stem
Raceface Ride 35mm
Handlebar
Raceface Turbine R, 35mm clamp, 760-780mm length customized through 23-point custom setup
Headset
FSA No.57, integrated
Seat
Saddle
WTB Volt Race, Women: WTB Koda Comp, Customized through 23-point custom setup
Seatpost
X-Fusion Manic Dropper post, 125mm or 150mm travel customized through 23-point custom setup
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.34 mm | 1.31 mm | 1.29 mm |
| Bottom Bracket Height | 335.5 mm | 335.5 mm | 335.5 mm | 335.5 mm |
| Front Center | 716 mm | 734 mm | 754 mm | 774 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 86 mm | 86 mm | 86 mm |
| Stack | 605.2 mm | 609.8 mm | 619.1 mm | 628.4 mm |
| Reach | 438.8 mm | 454.7 mm | 471.1 mm | 487.5 mm |
| Top Tube Length | 594.6 mm | 611.6 mm | 630.6 mm | 649.6 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 403 mm | 429 mm | 480 mm | 517 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1147 mm | 1165 mm | 1185 mm | 1205 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 778 mm | 785 mm | 789 mm | 793 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Signal Peak Elite Race 27.5+ belongs to the Fezzari Signal model. Fezzari launched 60 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Fezzari Signal Peak Comp 29 2019 is the most economical model, with a starting price of 2999$. Fezzari Signal Peak Team Edition 27.5+ 2019 on the other hand costs 7849$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Fezzari released this model in 2019, its price was 4999$. Comparing this to the average Trail bike price, we see that the price is 80.99% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Signal Peak Elite Race 27.5+ components
Fork
Fezzari Signal Peak Elite Race 27.5+ 2019 bike is equipped with the Fox Performance Elite Float 34 fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Fox Float DPS, with a travel distance of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Fezzari Signal Peak Elite Race 27.5+ 2019, has a 27.5″ carbon model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fezzari Signal Peak Elite Race 27.5+ is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Signal Peak Elite Race 27.5+ comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Fezzari Signal Peak Elite Race 27.5+ includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
