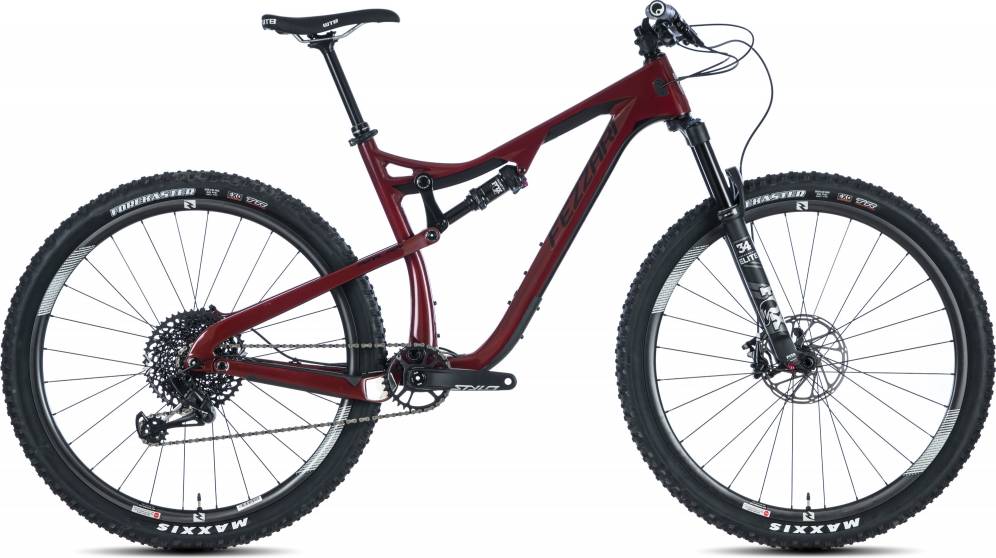

Fezzari Signal Peak Elite Race 29 2019
2019 Mountain
Estimate price |
4,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Performance Elite Float 34
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari ST12 CleanCast Carbon TetraLink Full Suspension, 120mm travel. Internal Future-Proof cable routing on top of Downtube. CleanCatch rattle-proof cable guides. FrameDefense Tech derailleur hanger. 2 Flush-mount bottle cages (all frame sizes)
Suspension Fork
Fox Float 34 Step-Cast 120mm travel, Performance Elite, Fit4 damper with external low-speed and rebound adjustments, 15x110 Axle
Rear Shock
Fox Float DPS, 3 position Evol air sleeve, Custom Tuned
Drivetrain
Rear Derailleur
SRAM GX Eagle 1x12, X-HORIZON, 12-speed, Type-3 roller bearing clutch, long cage
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle Trigger 12-speed
Cassette
SRAM XG-1275 GX Eagle, 10-50t, 12-speed
Crank
SRAM Stylo 6k Dub, 3mm offset for 148 Boost chainline
Bottom Bracket
SRAM Dub English Thread
Chain
SRAM GX Eagle 12-speed
Pedals
Available Separately
Wheels
Front Hub
Reynolds TR6 hubs, Sealed bearings, 5 degree engagement, XD Driver F: 110x15 Rear: 148x12, Centerlock
Rear Hub
Reynolds TR6 hubs, Sealed bearings, 5 degree engagement, XD Driver F: 110x15 Rear: 148x12, Centerlock
Rims
Reynold's TR 249 S Carbon, 24mm internal width; 27.5+ available after adding bike to cart
Spokes
Sapim CX Sprint
Tires
Maxxis Forekaster 29x2.35, 120 TPI,EXO Protection, Tubeless Ready
Brakes
Brakes
SRAM Level TL, SRAM Centerline 180mm/160mm F/R Rotors
Brake Levers
SRAM Level TL
Cockpit
Stem
Raceface Ride 35mm
Handlebar
Raceface Turbine R, 35mm clamp, 760-780mm length customized through 23-point custom setup
Headset
FSA No.57, integrated
Seat
Saddle
WTB Volt Race, Women: WTB Koda Comp, Customized through 23-point custom setup
Seatpost
X-Fusion Manic Dropper post, 125mm or 150mm travel customized through 23-point custom setup
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 717 mm | 735 mm | 755 mm | 775 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 612.2 mm | 616.9 mm | 626.2 mm | 635.4 mm |
| Reach | 436.4 mm | 452.3 mm | 468.7 mm | 485.1 mm |
| Top Tube Length | 599 mm | 616 mm | 635 mm | 654 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406 mm | 432 mm | 483 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1150 mm | 1168 mm | 1188 mm | 1208 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 783 mm | 790 mm | 794 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Signal Peak Elite Race 29 is a Fezzari Signal model. 60 bikes variations carry this model name so far. You can easily view all of the Fezzari Signal bikes models from 2019, here.
Model range prices
Fezzari Signal Peak Comp 29 2019 is the most economical model, with a starting price of 2999$. Fezzari Signal Peak Team Edition 27.5+ 2019 on the other hand costs 7849$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2019 and its price was 4999$. Comparing the average cost of a Trail bike to this one, you will see that Signal Peak Elite Race 29 price is 80.99% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Fezzari Signal Peak Elite Race 29 2019 bike is equipped with the Fox Performance Elite Float 34 fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Signal Peak Elite Race 29 has a rear shock with a travel of 120mm. The model Fox Float DPS is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Signal Peak Elite Race 29 are the 29″ carbon type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Fezzari Signal Peak Elite Race 29 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Fezzari Signal Peak Elite Race 29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Signal Peak Elite Race 29. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
