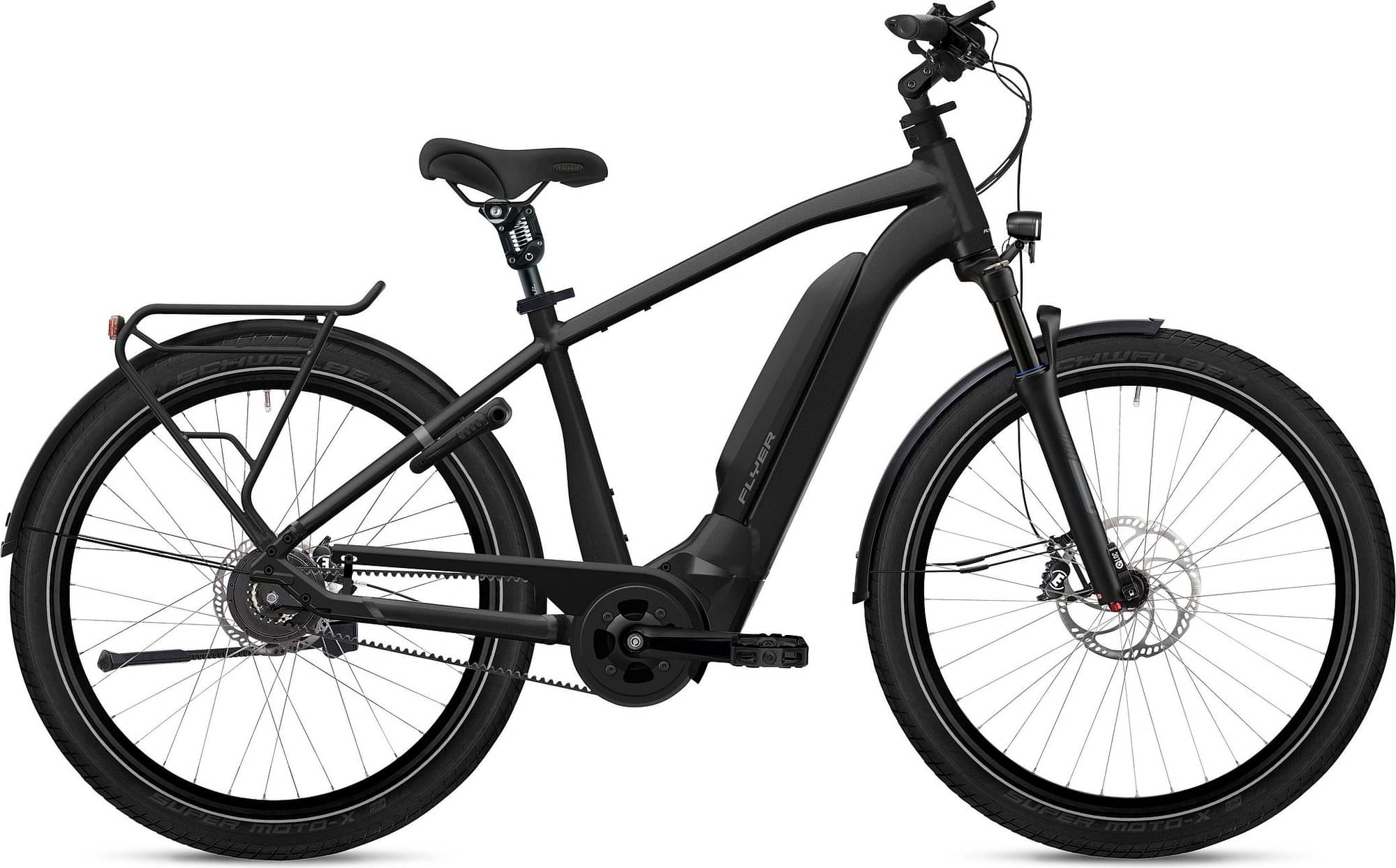

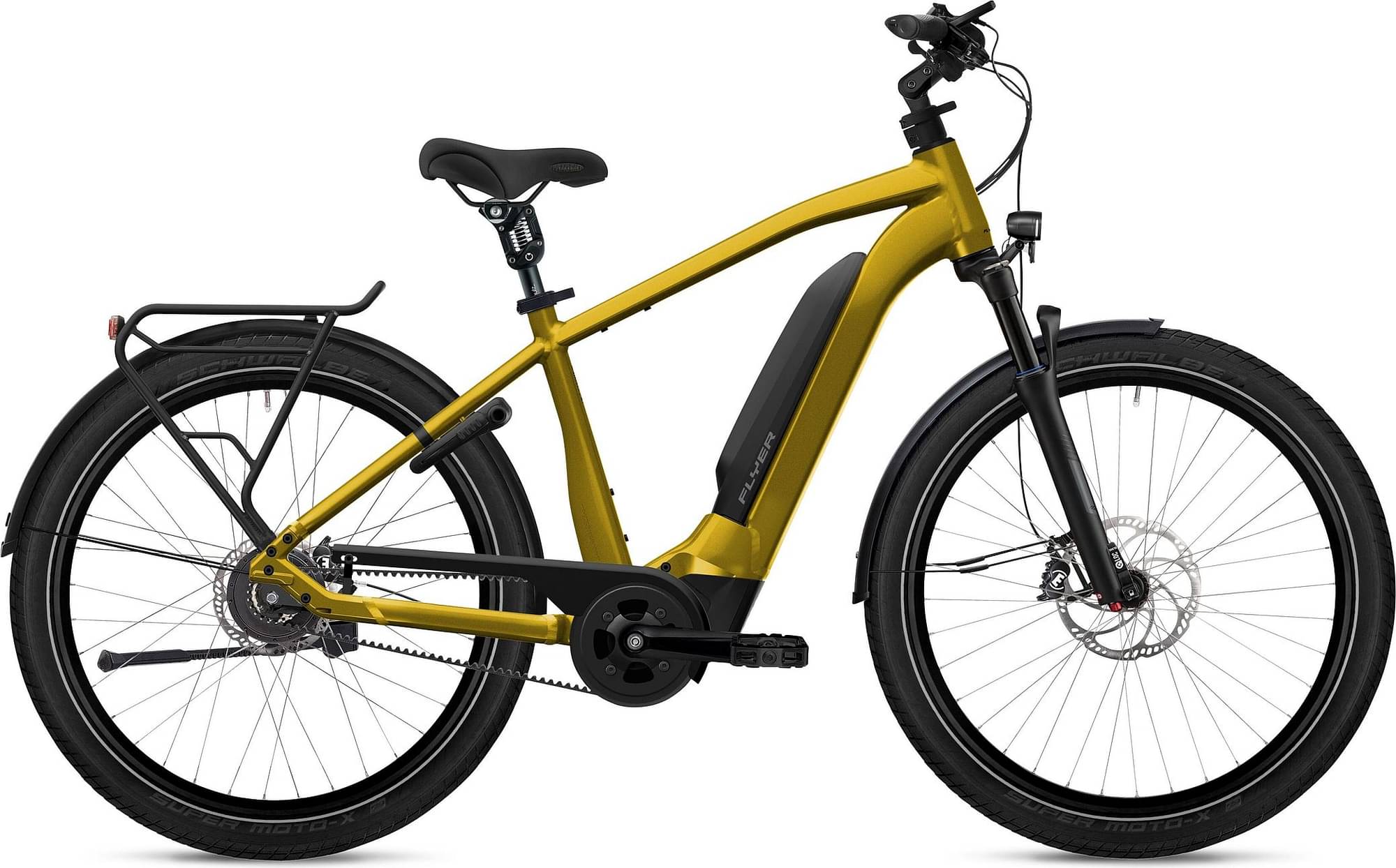

flyer Upstreet3 7.10 High 2023
2023 E-bike
Estimate price |
5,990$
Weight | 31 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Panasonic 90Nm mid-drive -
Battery FLYER SIB-750 (750 Wh / 20.1 Ah / 36 V) -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 170cm
MD
168cm - 179cm
LG
177cm - 188cm
XL
186cm - 197cm
XXL
195cm - 206cm
XXXL
204cm - 214cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FLYER Engineered, Hydroformed Tubing
Suspension Fork
SR Suntour MobiE 45 Air, 60 mm Travel, 15 x 100 mm Axle
Drivetrain
Rear Derailleur
Shimano Deore LinkGlide, 10 Speed, 11-43t
Cassette
Shimano Deore LinkGlide, 10 Speed, 11-43t
Pedals
FLYER Wellgo
Wheels
Front Hub
Bear Pawls BMT-003, 36h
Rear Hub
Bear Pawls BMT-004, 36h
Rims
Mach1 Trucky
Tires
Schwalbe Super Moto 27.5 x 2.4
Brakes
Brakes
Magura MT5, 203/180 mm
Cockpit
Stem
Satori All Up 1.5", 35 x 95 mm, Adjustable Height 90 mm (S-M) 150 mm (L-XXXL), Adjustable Angle
Handlebar
FLYER Cruise, 640 mm, 42°, 55 mm
Seat
Saddle
Selle Royal Viaggio
Seatpost
bySchulz G.2 ST, 31.6 mm x 350 mm (S-M) / 31.6 x 400 mm (L-XL) / 31.6 x 450 mm ( XXL-XXXL)
Motor & Battery
Motor
Panasonic GX Ultimate (90 Nm)
Battery
FLYER SIB-750 (750 Wh / 20.1 Ah / 36 V)
Charger
FLYER Fast Charger 6A 36V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL | XXXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.67 mm | 1.64 mm | 1.61 mm | 1.6 mm | 1.59 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm | 299 mm | 299 mm | 299 mm |
| Front Center | 657 mm | 657 mm | 677 mm | 703 mm | 723 mm | 744 mm |
| Rake | 44 mm | 45 mm | 44 mm | 45 mm | 43 mm | 43 mm |
| Trail | 80 mm | 72 mm | 70 mm | 69 mm | 71 mm | 71 mm |
| Stack | 623 mm | 646 mm | 667 mm | 686 mm | 705 mm | 724 mm |
| Reach | 384 mm | 387 mm | 406 mm | 425 mm | 440 mm | 454 mm |
| Top Tube Length | 576 mm | 586 mm | 611 mm | 636 mm | 656 mm | 676 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm | 590 mm | 630 mm |
| Head Tube Angle | 69 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm | 230 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1140 mm | 1140 mm | 1160 mm | 1186 mm | 1206 mm | 1227 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 160 cm | 168 cm | 177 cm | 186 cm | 195 cm | 204 cm |
| Rider Max Height | 170 cm | 179 cm | 188 cm | 197 cm | 206 cm | 214 cm |
About this model
Upstreet3 7.10 High completes the Flyer E Upstreet3 model. 8 e-bikes variations carry this model name so far. Take a sneak peek at all Flyer E Upstreet3 e-bikes models from 2023, by clicking here.
Model range prices
Flyer Upstreet3 7.10 High 2023 is the most affordable e-bike of this model and has a price of 5467$. On the other hand, Flyer Upstreet3 7.23 HS EU Low 2023, is the most expensive and costs 6847$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Flyer released this model in 2023, its price was 5467$. Comparing this to the average Commuter e-bike price, we see that the price is 112.81% more expensive.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 24.02 kg (52.95 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Flyer Upstreet3 7.10 High it’s weighing 31 kg (68.34 lbs). At this weight, is much heavier than average. To sum up, it’s 29.06% heavier than the average weight of Commuter e-bikes.
Upstreet3 7.10 High components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 60mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Upstreet3 7.10 High e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Flyer Upstreet3 7.10 High is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 160 cm – 214 cm (5.25 ft – 7.02 ft). In conclusion, finding one for you shouldn’t be a problem.
