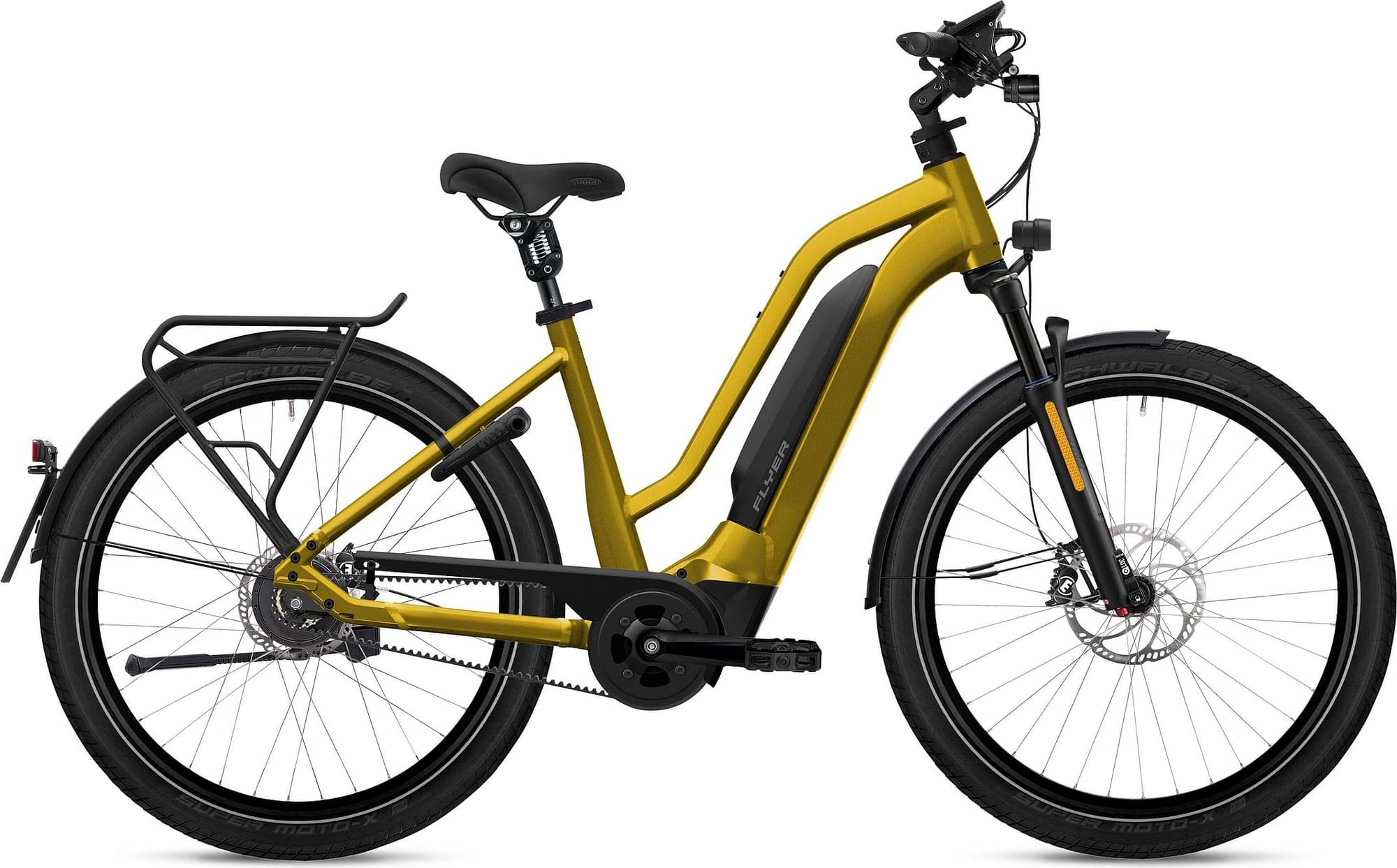

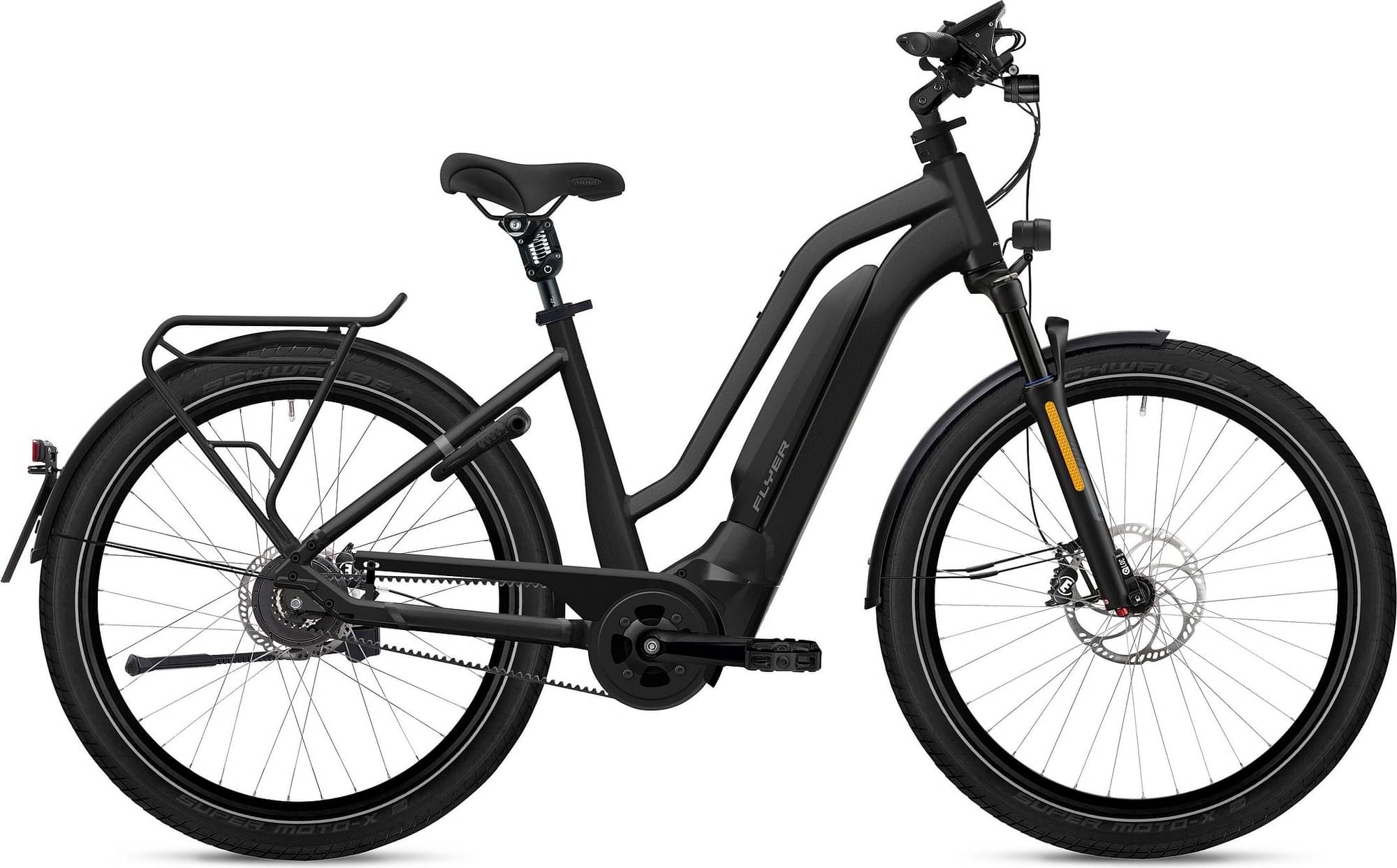

flyer Upstreet3 7.23 HS EU Low 2023
2023 E-bike
Estimate price |
7,502$
Weight | 31 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour MOBIE
-
Suspension Hardtail -
Motor Panasonic 90Nm mid-drive -
Battery FLYER SIB-750 (750 Wh / 20.1 Ah / 36 V) -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 170cm
MD
168cm - 179cm
LG
177cm - 188cm
XL
186cm - 197cm
XXL
195cm - 206cm
XXXL
204cm - 214cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FLYER Engineered, Hydroformed Tubing
Suspension Fork
SR Suntour MobiE 45 Air, 60 mm Travel, 15 x 100 mm Axle
Drivetrain
Cassette
Enviolo TR; Gates Carbon Drive CDX, Option: Enviolo TR Automatiq Integrated; Gates Carbon Drive CDX (EUR 300.00)
Pedals
FLYER Wellgo
Wheels
Front Hub
Bear Pawls BMT-003, 36h
Rear Hub
Enviolo TR CVP, 36h
Rims
Mach1 Trucky
Tires
Schwalbe Super Moto 27.5 x 2.4
Brakes
Brakes
Magura MT5e, 203/180 mm
Cockpit
Stem
Satori All Up 1.5", 35 x 95 mm, Adjustable Height 90 mm (S-M) 150 mm (L-XXXL), Adjustable Angle
Handlebar
FLYER Cruise, 640 mm, 42°, 55 mm
Seat
Saddle
Selle Royal Viaggio
Seatpost
bySchulz G.2 ST, 31.6 mm x 350 mm (S-M) / 31.6 x 400 mm (L-XL) / 31.6 x 450 mm ( XXL-XXXL)
Motor & Battery
Motor
Panasonic GX Ultimate HS (90 Nm)
Battery
FLYER SIB-750 (750 Wh / 20.1 Ah / 36 V)
Charger
FLYER Fast Charger 6A 36V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL | XXXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.67 mm | 1.64 mm | 1.61 mm | 1.6 mm | 1.59 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm | 299 mm | 299 mm | 299 mm |
| Front Center | 657 mm | 657 mm | 677 mm | 703 mm | 723 mm | 744 mm |
| Rake | 44 mm | 45 mm | 44 mm | 44 mm | 43 mm | 43 mm |
| Trail | 80 mm | 72 mm | 70 mm | 70 mm | 71 mm | 71 mm |
| Stack | 623 mm | 646 mm | 667 mm | 686 mm | 705 mm | 724 mm |
| Reach | 384 mm | 387 mm | 406 mm | 426 mm | 440 mm | 454 mm |
| Top Tube Length | 576 mm | 586 mm | 611 mm | 636 mm | 656 mm | 676 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm | 590 mm | 630 mm |
| Head Tube Angle | 69 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm | 230 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1140 mm | 1140 mm | 1160 mm | 1186 mm | 1206 mm | 1227 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 160 cm | 168 cm | 177 cm | 186 cm | 195 cm | 204 cm |
| Rider Max Height | 170 cm | 179 cm | 188 cm | 197 cm | 206 cm | 214 cm |
About this model
Upstreet3 7.23 HS EU Low completes the Flyer E Upstreet3 model. There are 8 e-bikes that carry this model name. You can easily view all of the Flyer E Upstreet3 e-bikes models from 2023, here.
Model range prices
Flyer Upstreet3 7.10 High 2023 is the most economical model, with a starting price of 5467$. Flyer Upstreet3 7.23 HS EU Low 2023 on the other hand costs 6847$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6847$. Doing a quick comparison, we notice that Upstreet3 7.23 HS EU Low price is 166.52% more expensive than the average cost of a Commuter e-bike.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 24.02 kg (52.95 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 31 kg (68.34 lbs), Flyer e-bike is much heavier than average. In other words, this model is 29.06% heavier than the average Commuter e-bike.
Overview of components
Fork
Flyer Upstreet3 7.23 HS EU Low 2023 e-bike is equipped with the Suntour MOBIE fork, and has 60mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Upstreet3 7.23 HS EU Low 2023 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Upstreet3 7.23 HS EU Low has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 6 sizes. They vary from 160 cm – 214 cm (5.25 ft – 7.02 ft). In short, it won’t be difficult to find the right one for you.
