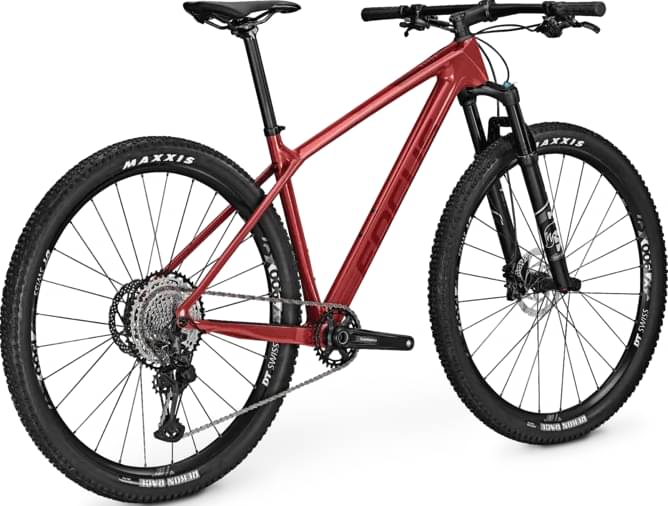

Focus Raven 8.7 2022
2022 Mountain
Estimate price |
3,024$
Weight | 11.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset XT, Shimano -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RAVEN, carbon, PF30 BB, 142mm dropouts, internal cable routing, PM 160 rear brake
Suspension Fork
FOX 32 Float Rhythm 29, Grip Remote, 110x15 mm, 44 mm rake, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano SLX M7100, 12-speed
Crank
Shimano MT510
Bottom Bracket
Pressfit
Chain
Shimano Deore CN-M6100, 12-speed
Wheels
Rims
DT Swiss X1900, 25-622, 15x110 mm / 12x148 mm, 25 mm height
Tires
Maxxis Rekon Race, 2.25, 2C
Brakes
Brakes
Shimano SLX M7100
Brake Levers
Shimano SLX M7100
Cockpit
Stem
Aluminium, 31,8 mm
Handlebar
Aluminium, 760 mm, flatbar, backsweep: 9°, 31,8 mm
Headset
Acros AIX-322, tapered, IS 42/286-IS52/40
Seat
Saddle
FOCUS Race SL
Seatpost
BBB Deluxe, Aluminium, 27,2mm, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.43 mm | 1.42 mm |
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm | 306 mm |
| Front Center | 674 mm | 690 mm | 713 mm | 734 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 91 mm | 91 mm | 90 mm | 91 mm |
| Stack | 623 mm | 626 mm | 647 mm | 666 mm |
| Reach | 423 mm | 438 mm | 453 mm | 468 mm |
| Top Tube Length | 595 mm | 611 mm | 632 mm | 652 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69.8 ° | 69.8 ° | 69.8 ° | 69.8 ° |
| Head Tube Length | 104 mm | 107 mm | 130 mm | 150 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1103 mm | 1119 mm | 1142 mm | 1163 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Raven 8.7 is part of the Focus Raven model. 29 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Focus Raven 8.6 2022 has a starting price of 1804$. Focus Raven 8.8 2022 on the other hand is the most expensive at 3290$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 2760$. Doing a quick comparison, we notice that Raven 8.7 price is 44.88% higher than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 11.2 kg (24.69 lbs), Focus bike is considerably lighter than average. In short, the average Crosscountry bike weight is 10.71% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Raven 8.7 components
Fork
Focus Raven 8.7 2022 bike is equipped with the Fox Rhythm Float 32 fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Raven 8.7 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Raven 8.7 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
