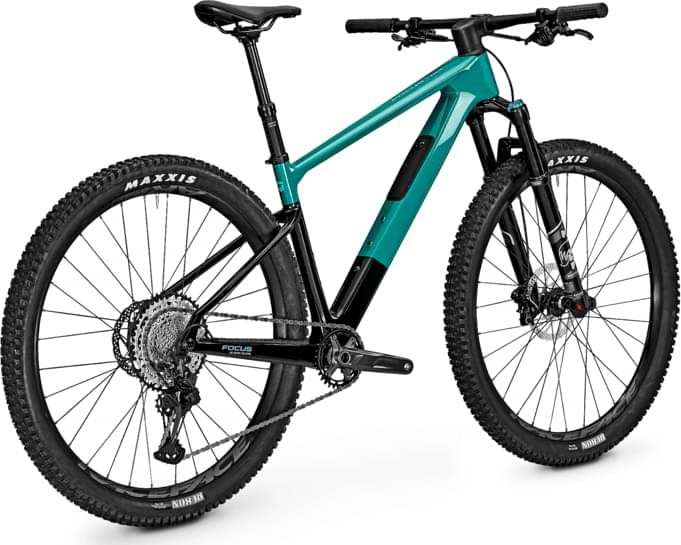

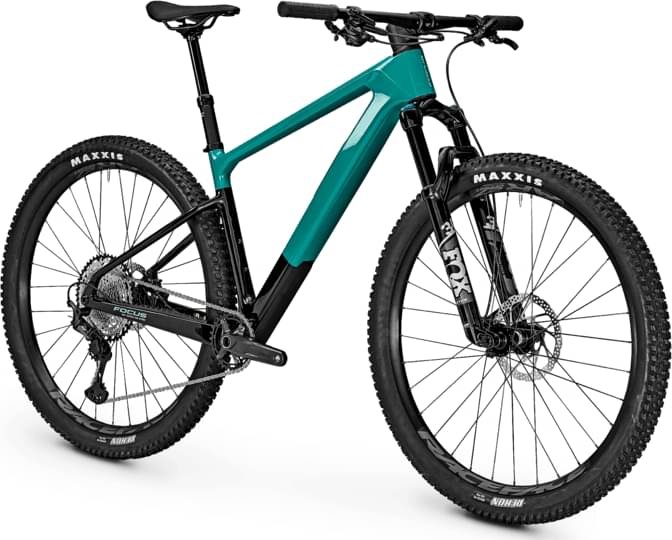

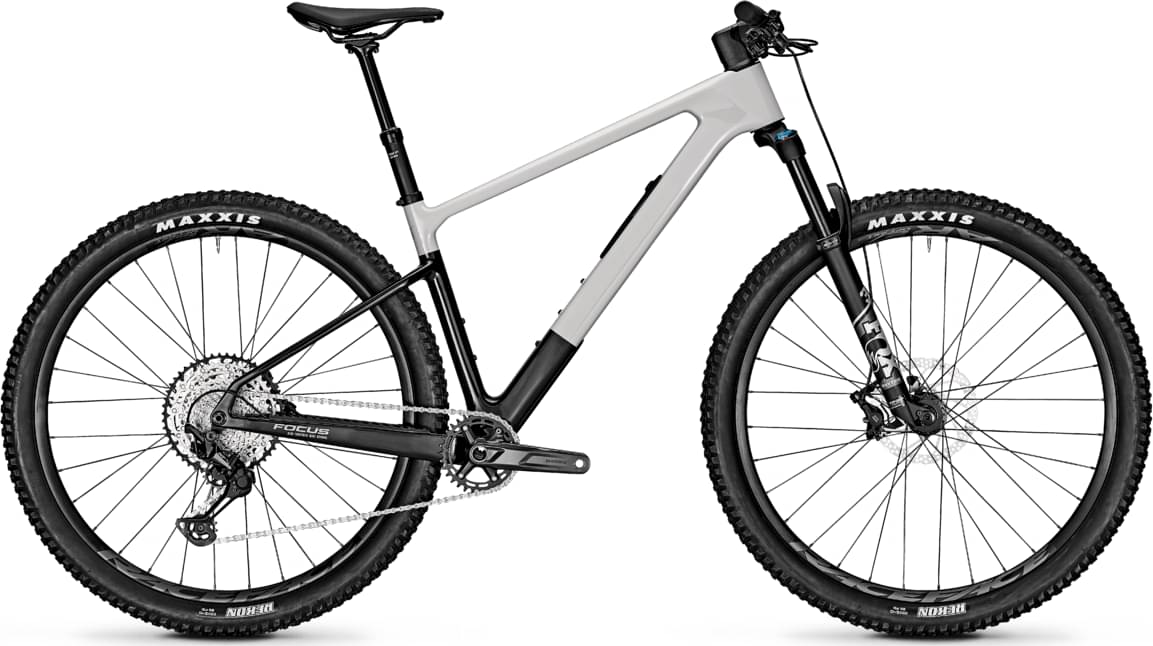

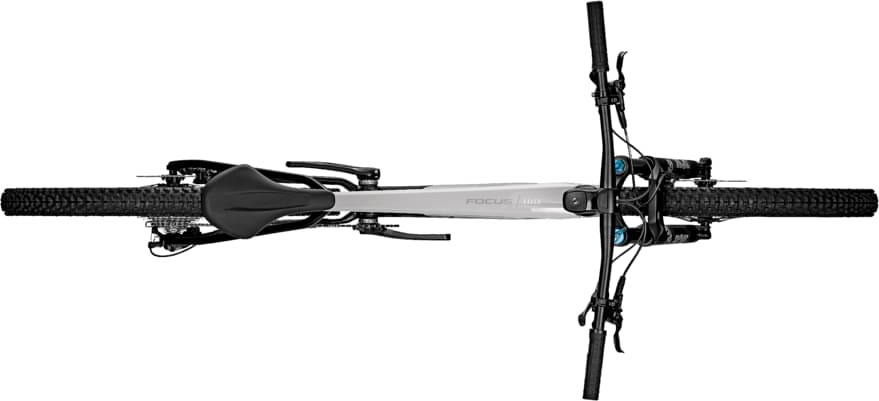

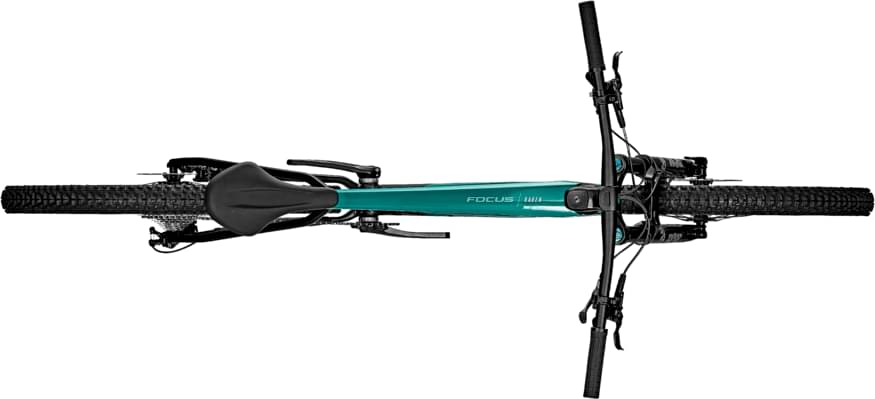

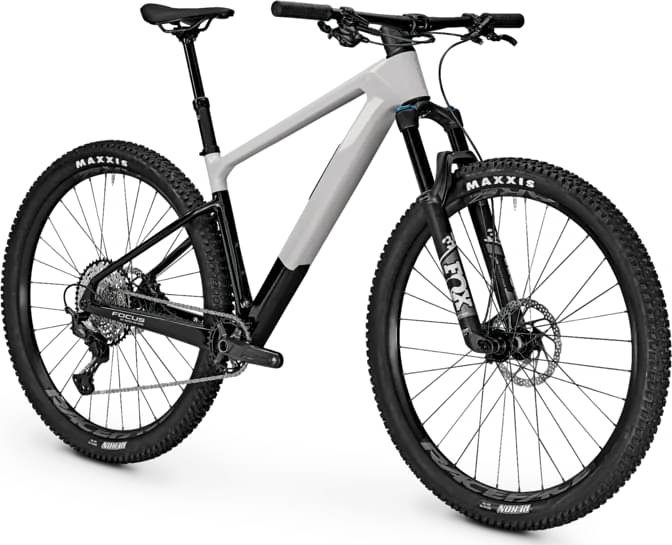

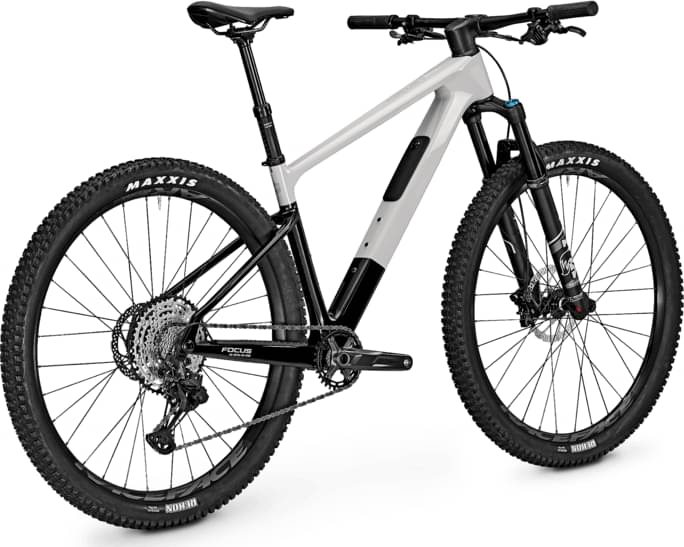

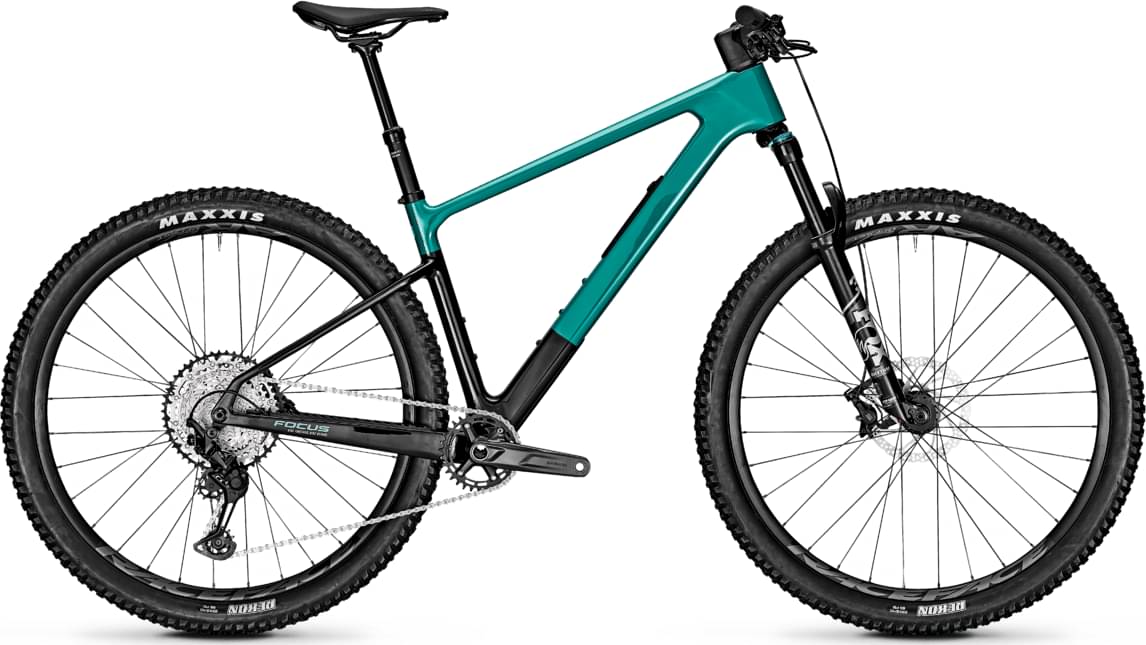

Focus RAVEN 8.8 2023
2023 Mountain
Estimate price |
3,256$
Weight | 12.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Fork Fox Rhythm Float 34 -
Groupset XT, Shimano -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon technology frame, BSA, 148x12 mm thru axle, internal cable routing, cockpit integration solution C.I.S. internal compartment Solution I.C.S. angle headset, Post Mount 160 mm
Suspension Fork
FOX 34 Float Rhythm 29, Grip, Sweep-Adj. 110x15 mm, 44 mm rake
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano SLX M7100, 12-speed
Crank
Shimano FC-MT512
Bottom Bracket
BSA
Chain
Shimano Deore CN-M6100, 12-speed
Wheels
Front Hub
Novatec D041, 15x110 mm
Rear Hub
Novatec D462, 12x148 mm
Rims
RaceFace AR27, 622-27, 32H
Tires
Maxxis Rekon, 61-622
Brakes
Brakes
Disc
Brake Levers
Shimano BR-M7100
Cockpit
Stem
FOCUS C.I.S. 2.0 MTB integrated, 31.8 mm, aluminium
Handlebar
Aluminium, 760 mm, flatbar, backsweep: 9°, 31,8 mm
Headset
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated, 1.5/1.5" angle headset
Seat
Saddle
Selle Royal Groove SRX
Seatpost
Post Moderne dropper post PM-MT171, 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.523 mm | 1.436 mm | 1.413 mm | 1.379 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 697 mm | 722 mm | 750 mm | 782 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm | 131 mm |
| Stack | 632 mm | 632 mm | 650 | 669 mm |
| Reach | 415 mm | 440 mm | 460 mm | 485 mm |
| Top Tube Length | 596 mm | 621 mm | 646 mm | 676 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 140 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1124 mm | 1149 mm | 1177 mm | 1209 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
RAVEN 8.8 belongs to the Focus Raven model. Focus released 29 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Focus RAVEN 8.7 2023 is the most economical model, with a starting price of 2335$. Focus RAVEN 8.9 2023 on the other hand costs 3821$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2972$. Doing a quick comparison, we notice that RAVEN 8.8 price is 56.01% more expensive than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 12.9 kg (28.44 lbs), Focus bike is slightly heavier than average. In other words, this model is 4.03% heavier than the average Crosscountry bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
RAVEN 8.8 components
Fork
This bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Focus RAVEN 8.8 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the RAVEN 8.8. Therefore, climbing or descending will be a breeze.
