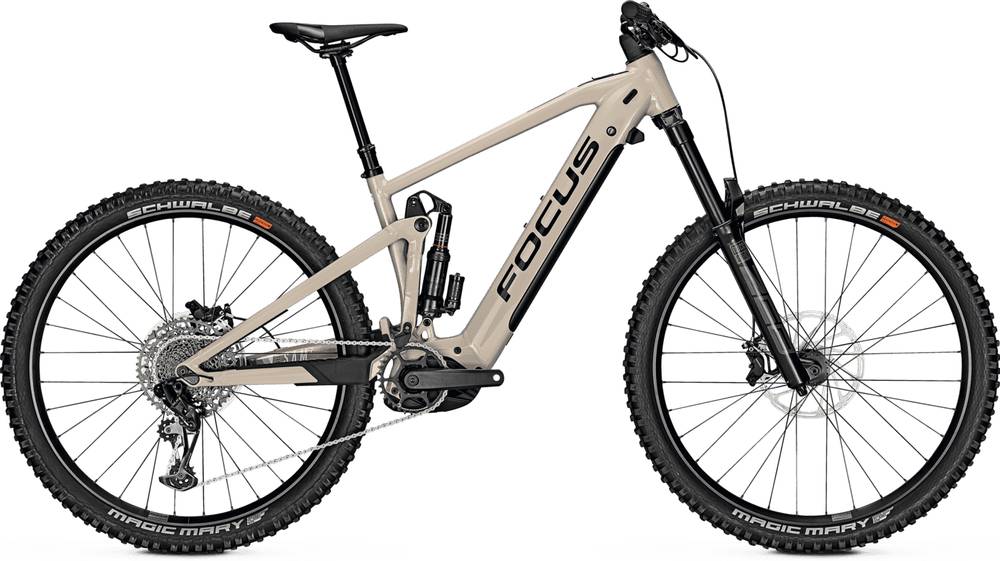

Focus SAM2 6.8 2021
2021 E-bike
Estimate price |
6,397$
Weight | 25.95 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB
-
Groupset GX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery 625 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 203 mm
Suspension Fork
Rock Shox ZEB 29 Boost, Charger R, DebonAir, 110x15 mm, 44 mm rake, 170 mm travel
Rear Shock
Rock Shox Super Deluxe Select+, 230/65 mm, hardware: 25,0 x 8 mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM PG-1230 Eagle, 12-speed
Crank
Samox EC40 ISIS
Bottom Bracket
Integraded in Drive Unit
Chain
SRAM NX Eagle
Wheels
Front Hub
Novatec D041, 15x110 mm thru axle
Rear Hub
Novatec D162 Disc, 12x148 mm
Rims
RODI TRYP30 FOCUS, eyelets
Tires
Schwalbe Magic Mary 2.6 Super Trail Soft
Brakes
Brakes
SRAM Code R
Brake Levers
SRAM Code R
Cockpit
Stem
FOCUS C.I.S. integrated, 50 mm, 0 degrees, 35 mm, aluminium
Handlebar
FOCUS Trail, aluminium, riserbar, 780mm, rise: 30mm, backsweep: 9 degrees
Grips
FOCUS Locker SL
Headset
Acros AZX-212 AH [1-1/8", tapered, 44/286-ZS56/40]
Seat
Saddle
FOCUS Trail SL
Seatpost
Kind Shock RAGE I, 31,6mm
Motor & Battery
Motor
Bosch Performance CX Gen4, 85 Nm, 250 W
Battery
625 Wh
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.42 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Front Center | 766 mm | 787 mm | 824 mm | 862 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 123 mm | 125 mm | 124 mm | 124 mm |
| Stack | 622 mm | 627 mm | 641 mm | 659 mm |
| Reach | 423 mm | 443 mm | 473 mm | 503 mm |
| Top Tube Length | 580 mm | 601 mm | 635 mm | 669 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 410 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 115 mm | 130 mm | 150 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1208 mm | 1229 mm | 1266 mm | 1304 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
SAM2 6.8 belongs to the Focus E Sam2 model. There are 17 e-bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Focus SAM² 6.7 2021 has a starting price of 5308$. Focus SAM2 6.9 2021 on the other hand is the most expensive at 6901$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2021 and its price was 5839$. Comparing the average cost of an Enduro e-bike to this one, you will see that SAM2 6.8 price is 22.03% more expensive.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Focus SAM2 6.8 it’s weighing 25.95 kg (57.21 lbs). At this weight, is considerably heavier than average. In other words, this model is 10.8% heavier than the average Enduro e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The fork installed on this bike is the RockShox ZEB model. The travel on this model is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Focus SAM2 6.8 e-bike has the Rock Shox Super Deluxe Select+ model installed, and has a travel of 170mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the SAM2 6.8 e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SAM2 6.8 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Focus SAM2 6.8 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
