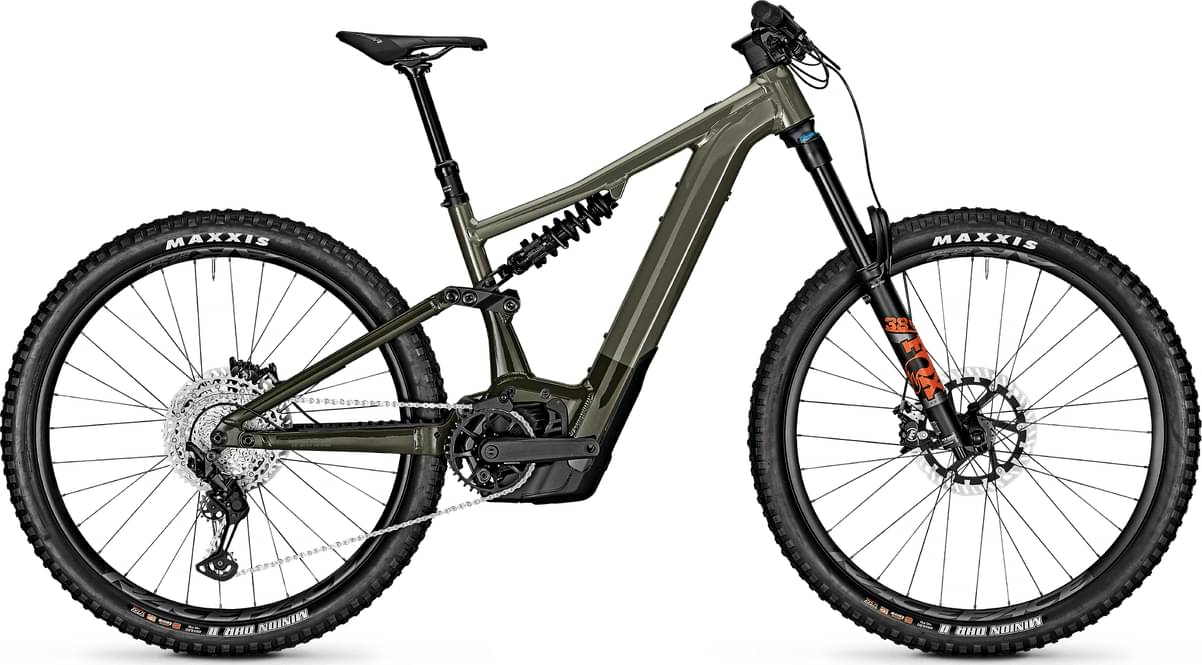

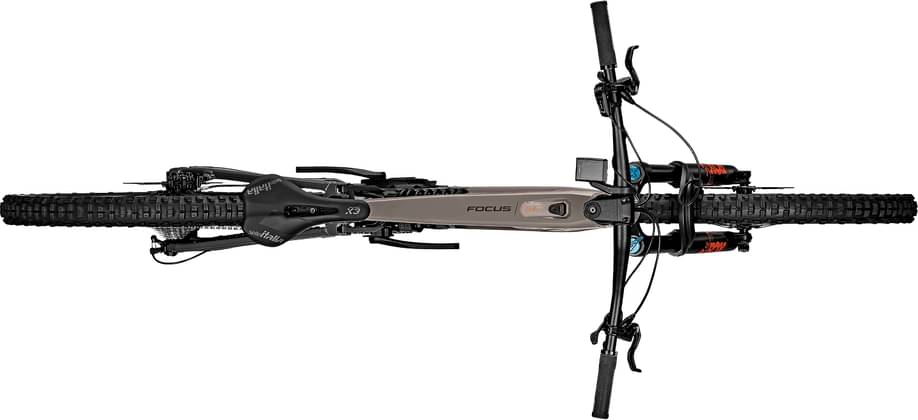

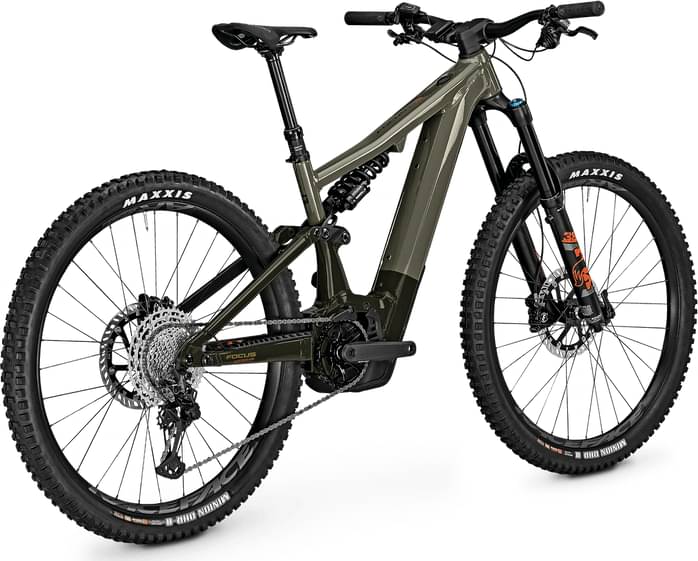

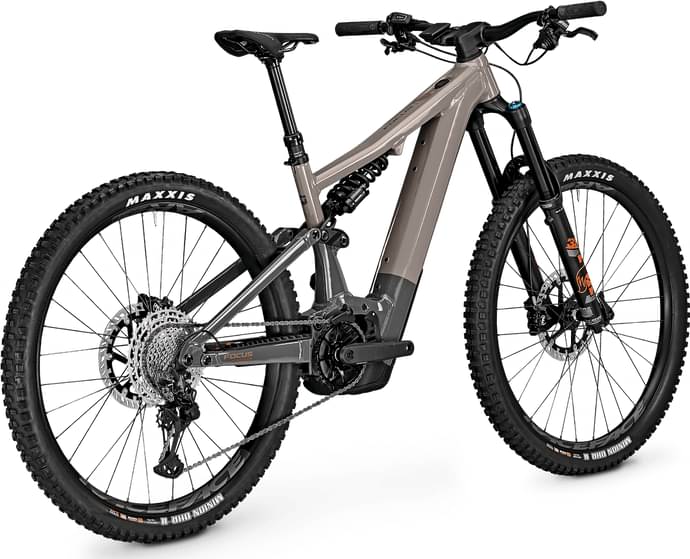

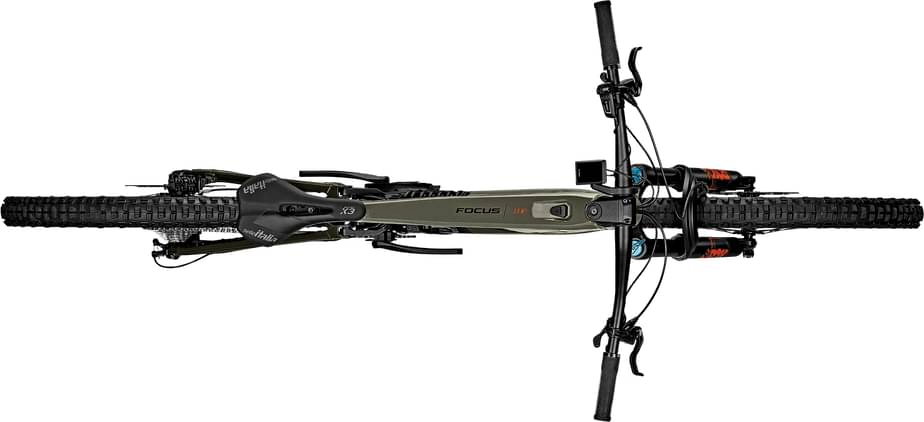

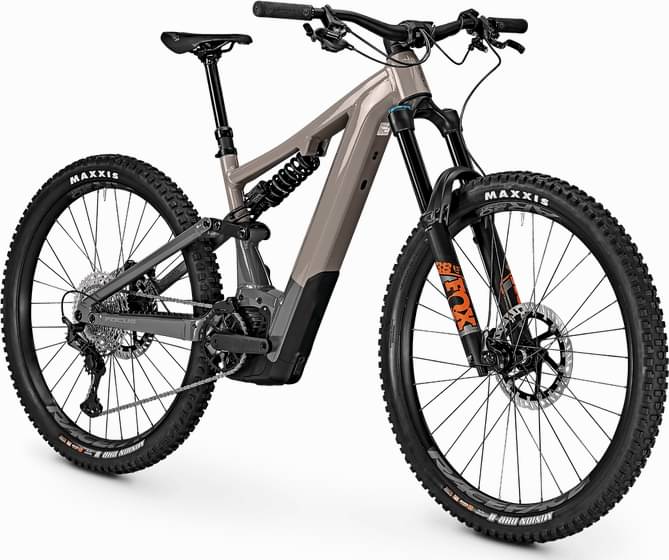

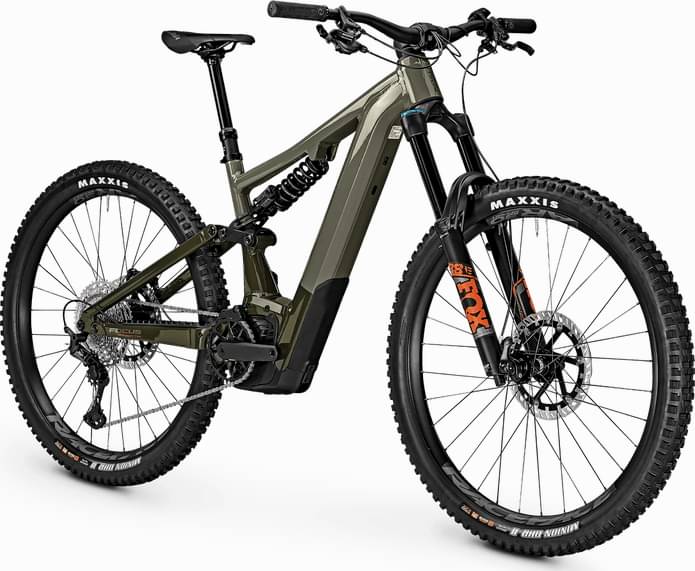

Focus SAM² 6.8 2023
2023 E-bike
Estimate price |
8,028$
Weight | 26.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Rear 170mm -
Fork Fox Float 38 -
Groupset XT -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. Gen2, 148x12 mm thru axle, internal cable routing, USB-C port, post mount 203 mm
Suspension Fork
FOX 38 Rhythm Float 29, Grip, E-Bike optimized, 15x110 mm, 44mm rake
Rear Shock
Rock Shox Super Deluxe Coil Select, 230/65 mm, hardware: 25,0 x 8.0 mm, no Bushing
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore CS-M6100, 12-speed
Crank
Samox EC40 ISIS
Bottom Bracket
Integrated in Drive Unit
Chain
Shimano Deore CN-M6100, 12-speed
Wheels
Front Hub
Novatec D041, 15x110 mm
Rear Hub
Novatec D462, 12x148 mm
Rims
RaceFace AR30 Offset
Tires
Maxxis Minion DHR II, 2.6, 66-622, EXO+
Brakes
Brakes
Disc
Brake Levers
Magura MT5 HC-1
Cockpit
Stem
FOCUS C.I.S. 2.0 MTB integrated, 35 mm, aluminium
Handlebar
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
Headset
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset
Seat
Saddle
Selle Italia X3
Seatpost
Post Moderne dropper post PM-214, 34.9 mm
Motor & Battery
Motor
Bosch Performance CX Smart, 85 Nm, 250 W
Battery
750 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.32 mm | 1.29 mm | 1.25 mm |
| Front Center | 780 mm | 810 mm | 844 mm | 883 mm |
| Rake | 35 mm | 35 mm | 35 mm | 35 mm |
| Trail | 148 mm | 148 mm | 148 mm | 148 mm |
| Stack | 630 mm | 630 mm | 648 mm | 666 mm |
| Reach | 447 mm | 477 mm | 502 mm | 532 mm |
| Top Tube Length | 585 mm | 615 mm | 644 mm | 678 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 100 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1236 mm | 1266 mm | 1300 mm | 1339 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
SAM² 6.8 completes the Focus E Sam2 model. There are 17 e-bikes that carry this model name. You can easily view all of the Focus E Sam2 e-bikes models from 2023, here.
Model range prices
Focus SAM² 6.7 2023 is the cheapest e-bike model and costs 6157$. Focus SAM² 6.0 2023 is the most expensive one and costs 9236$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Focus SAM² 6.8 price was 7431$. Comparing the average cost of an Enduro e-bike to this one, you will see that SAM² 6.8 price is 55.3% higher.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 26.7 kg (58.86 lbs), the SAM² 6.8 model is considerably heavier than average. In short, the average Enduro e-bike weight is 14.01% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
SAM² 6.8 components
Fork
Focus SAM² 6.8 2023 e-bike is equipped with the Fox Float 38 fork, and has mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The SAM² 6.8 has a rear shock with a travel of 170mm. The model Rock Shox Super Deluxe Coil Select is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the SAM² 6.8 e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Focus SAM² 6.8 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
SAM² 6.8 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the SAM² 6.8. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
