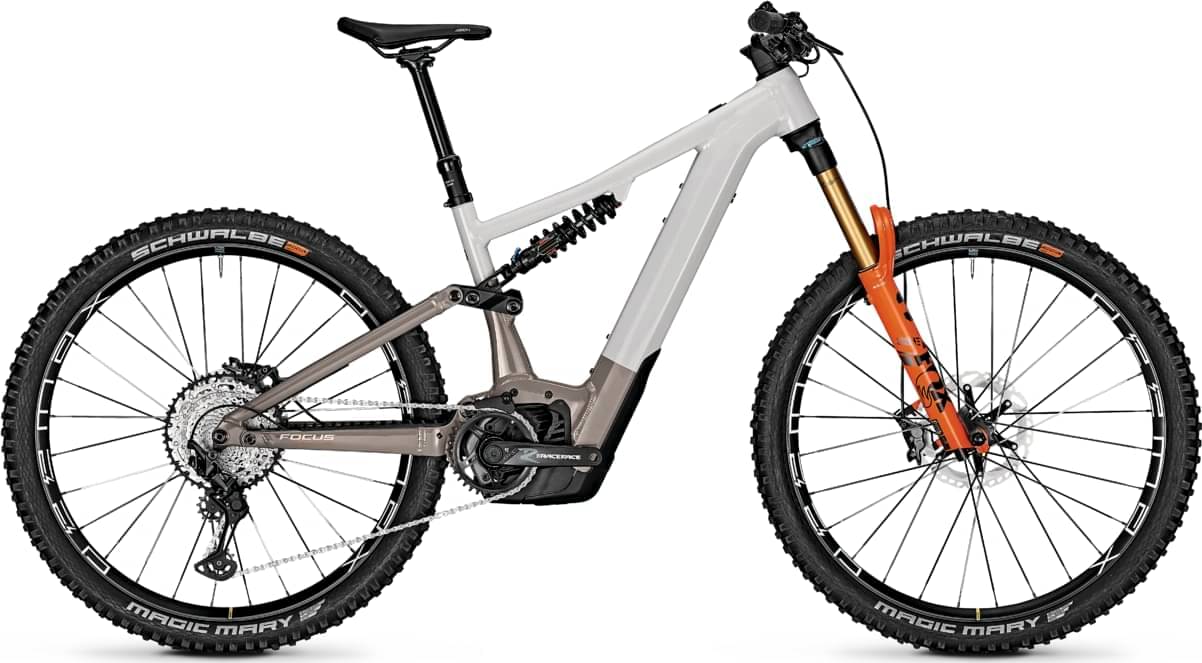

Focus SAM² 6.9 2023
2023 E-bike
Estimate price |
9,306$
Weight | 26.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Rear 170mm -
Fork Fox Factory Float 38 -
Groupset XT, Race Face -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. Gen2, 148x12 mm thru axle, internal cable routing, USB-C port, post mount 203 mm
Suspension Fork
FOX 38 Factory Float 29, Grip 2, E-Bike+, 110x15 mm, 44 mm rake
Rear Shock
FOX DHX Performance Coil, 230/65 mm, hardware: 20,0 x 8.0 mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano SLX M7100, 12-speed
Crank
RaceFace Aeffect R e-Optimized Bosch G4
Bottom Bracket
Integrated in Drive Unit
Chain
Shimano SLX CN-M7100, 12-speed
Wheels
Front Hub
Novatec D041, 15x110 mm thru axle
Rear Hub
Novatec D462, 12x148 mm
Rims
MAVIC E-DEEMAX 30, 622-30, 148x12 mm / 110x15 mm
Tires
Schwalbe Magic Mary, 2.6 Super Trail Soft, 65-622
Brakes
Brakes
Disc
Brake Levers
Shimano Deore XT M8000
Cockpit
Stem
FOCUS C.I.S. 2.0 MTB integrated, 35 mm, aluminium
Handlebar
RaceFace Atlas 35, aluminium, 820 mm, rise: 35 mm, backsweep: 8°
Headset
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset
Seat
Saddle
Fizik Terra Aidon
Seatpost
Post Moderne dropper post PM-214, 34.9 mm
Motor & Battery
Motor
Bosch Performance CX Smart, 85 Nm, 250 W
Battery
750 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.32 mm | 1.29 mm | 1.25 mm |
| Front Center | 780 mm | 810 mm | 844 mm | 883 mm |
| Rake | 35 mm | 35 mm | 35 mm | 35 mm |
| Trail | 148 mm | 148 mm | 148 mm | 148 mm |
| Stack | 630 mm | 630 mm | 648 mm | 666 mm |
| Reach | 447 mm | 477 mm | 502 mm | 532 mm |
| Top Tube Length | 585 mm | 615 mm | 644 mm | 678 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 100 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1236 mm | 1266 mm | 1300 mm | 1339 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SAM² 6.9 completes the Focus E Sam2 model. There are 17 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Focus SAM² 6.7 2023 is the most economical model, with a starting price of 6157$. Focus SAM² 6.0 2023 on the other hand costs 9236$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2023 and its price was 8493$. Comparing this to the average Enduro e-bike price, we see that the price is 77.49% more expensive.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
considerably heavier than average, SAM² 6.9 has a weight of 26.6 kg (58.64 lbs). To sum up, it’s 13.58% heavier than the average weight of Enduro e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
This e-bike has the Fox Factory Float 38 fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is FOX DHX Performance Coil, with a travel distance of 170mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Focus SAM² 6.9 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SAM² 6.9 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
SAM² 6.9 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
