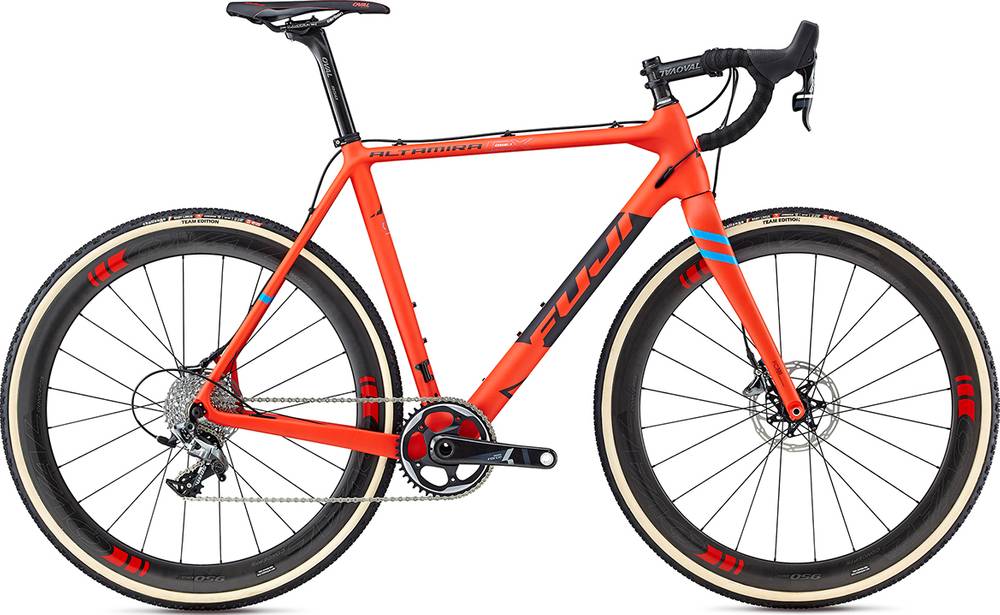

Fuji Altamira CX 1.1 2017
2017 Road
Estimate price |
4,739$
Weight | 7.66 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Force 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C10 ultra high-modulus carbon, disc-only frame w/ shaped top tube for portaging, integrated tapered head tube w/ 1 1/2" lower, oversized 34.9mm round seat tube, PIIS BB86 shell, double water bottle mounts, oversized chainstays, carbon dropout w/ replaceable hanger
Suspension Fork
FC-330 Cross carbon monocoque, 12mm thru-axle w/ flat-mount disc tabs, tapered steerer
Drivetrain
Rear Derailleur
SRAM Force 1, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM Force 1 DoubleTap w/ hydraulic reservior, 11-speed
Cassette
SRAM PG-1170, 11-32T, 11-speed
Crank
SRAM Force 1, 42T
Bottom Bracket
SRAM Force, press fit BB86
Chain
KMC X11SL Ni-Ti Plated, 11-speed
Pedals
N/A
Wheels
Rims
Oval Concepts 950 CX, Centerlock hubs, 100x12mm & 142x12mm thru axles, 700c 24H aero carbon tubular rims
Tires
Challenge Baby Limus, Team Edition 700 x 33c, 320tpi, tubular
Brakes
Brakes
SRAM Force 1 hydraulic, 160mm / 140mm rotors
Brake Levers
SRAM Force 1 DoubleTap w/ hydraulic reservior
Cockpit
Stem
Oval Concepts 707, 3D-forged 6061 stem body, +/-7°
Handlebar
Oval Concepts 910 Ergo, carbon, 31.8mm clamp, 133mm drop, 4° sweep
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated w/ carbon top cover
Seat
Saddle
Oval Concepts 934 with pressure relief zone, carbon rail
Seatpost
Oval Concepts 950, carbon & alloy, 31.6mm diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.44 mm | 1.5 mm | 1.52 mm | 1.53 mm | 1.54 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 589 mm | 594 mm | 585 mm | 600 mm | 616 mm | 631 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 67.7 mm | 64.5 mm | 61.3 mm | 61.3 mm | 61.3 mm | 61.3 mm |
| Stack | 536 mm | 557 mm | 568 mm | 587 mm | 606 mm | 625 mm |
| Reach | 383 mm | 387 mm | 378 mm | 387 mm | 396 mm | 406 mm |
| Top Tube Length | 525 mm | 540 mm | 550 mm | 565 mm | 580 mm | 595 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 130 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1010 mm | 1015 mm | 1006 mm | 1021 mm | 1037 mm | 1052 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 765 mm | 789 mm | 803 mm | 820 mm | 842 mm | 861 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Altamira CX 1.1 completes the Fuji Altamira model. Fuji released 75 bikes variations of this model so far. Take a sneak peek at all Fuji Altamira bikes models from 2017, by clicking here.
Model range prices
Fuji Altamira CX 1.3 2017 is the most affordable bike of this model and has a price of 2799$. On the other hand, Fuji Altamira CX 1.1 2017, is the most expensive and costs 4739$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Cyclocross bikes average price
According to our calculations, the average cost of a Cyclocross bike that is reliable is 2012$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Cyclocross bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4739$. Comparing this to the average Cyclocross bike price, we see that the price is 135.54% higher.
Average weight for Cyclocross bikes
The average weight for Cyclocross bikes is 8.79 kg (19.38 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 7.66 kg (16.89 lbs), the Altamira CX 1.1 model is considerably lighter than average. In short, the average Cyclocross bike weight is 14.75% higher than this one.
Altamira CX 1.1 components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Altamira CX 1.1 bike is equipped with the 700c carbon model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
