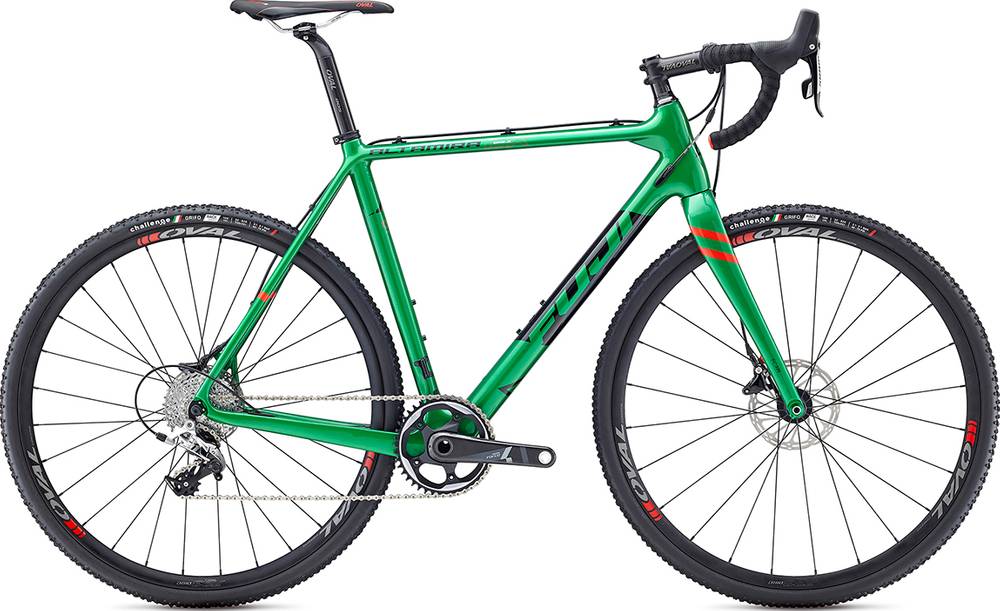

Fuji Altamira CX 1.3 2017
2017 Road
Estimate price |
2,799$
Weight | 8.09 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Rival, Rival 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C10 ultra high-modulus carbon disc-only frame w/ shaped top tube for portaging, integrated tapered head tube w/ 1 1/2" lower, oversized 34.9mm round seat tube, PIIS BB86 shell, double water bottle mounts, oversized chainstays, carbon dropout w/ replaceable hanger
Suspension Fork
FC-330 Cross carbon monocoque, 12mm thru-axle w/ flat-mount disc tabs, tapered steerer
Drivetrain
Rear Derailleur
SRAM Rival, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM Rival DoubleTap w/ hydraulic reservior, 11-speed
Cassette
SRAM PG-1130, 11-32T, 11-speed
Crank
SRAM Rival 1, 42T
Bottom Bracket
SRAM, BB86
Chain
KMC X11, 11-speed w/ MissingLink
Pedals
N/A
Wheels
Rims
Oval Concepts 723 Disc, Centerlock hubs, 100x12mm & 142x12mm thru axles, 700c 24/28H tubeless compatible rims
Tires
Challenge Grifo 700 x 32cc, 120tpi, folding
Brakes
Brakes
SRAM Rival hydraulic disc for road, 160mm / 140mm rotors
Brake Levers
SRAM Rival, DoubleTap w/ hydraulic reservior
Cockpit
Stem
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
Handlebar
Oval Concepts 310 Ergo, 6061 alloy, 31.8mm clamp, 133mm drop, 4° sweep
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated w/ carbon top cover
Seat
Saddle
Oval Concepts 734 with pressure relief zone, cromo rail
Seatpost
Oval Concepts 905, carbon & alloy, 31.6mm diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.44 mm | 1.5 mm | 1.52 mm | 1.53 mm | 1.54 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 589 mm | 594 mm | 585 mm | 600 mm | 616 mm | 631 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 67.7 mm | 64.5 mm | 61.3 mm | 61.3 mm | 61.3 mm | 61.3 mm |
| Stack | 536 mm | 557 mm | 568 mm | 587 mm | 606 mm | 625 mm |
| Reach | 383 mm | 387 mm | 378 mm | 387 mm | 396 mm | 406 mm |
| Top Tube Length | 525 mm | 540 mm | 550 mm | 565 mm | 580 mm | 595 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 130 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1010 mm | 1015 mm | 1006 mm | 1021 mm | 1037 mm | 1052 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 765 mm | 789 mm | 803 mm | 820 mm | 842 mm | 861 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Altamira CX 1.3 completes the Fuji Altamira model. Fuji released 75 bikes variations of this model so far. You can easily view all of the Fuji Altamira bikes models from 2017, here.
Model range prices
Fuji Altamira CX 1.3 2017 is the most economical model, with a starting price of 2799$. Fuji Altamira CX 1.1 2017 on the other hand costs 4739$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Cyclocross bikes average price
If you want an acceptable Cyclocross bike you should know that the average price is 2012$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Cyclocross bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Fuji Altamira CX 1.3 price was 2799$. Comparing the average cost of a Cyclocross bike to this one, you will see that Altamira CX 1.3 price is 39.12% higher.
Cyclocross bikes average weight
Cyclocross bikes weigh an average of 8.79 kg (19.38 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Fuji Altamira CX 1.3 it’s weighing 8.09 kg (17.84 lbs). At this weight, is a bit lighter than average. In short, the average Cyclocross bike weight is 8.65% higher than this one.
Altamira CX 1.3 components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Fuji Altamira CX 1.3 2017, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Altamira CX 1.3 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
