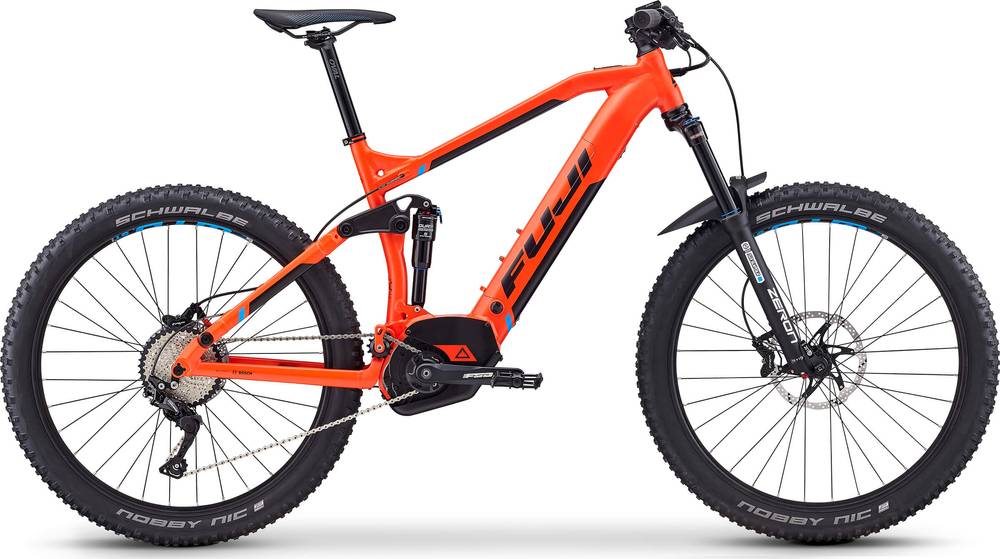

Fuji Blackhill Evo LT 27.5+ 1.5 USA 2019
2019 E-bike
Estimate price |
4,199$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Fork SunTour Zeron
-
Groupset Deore, FSA -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Power Tube 500Wh w/ charger -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 159cm
MD
158cm - 162cm
LG
161cm - 166cm
XL
165cm - 171cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A6-SL alloy front and rear triangle w/ down tube for integrated Bosch Power Tube 500Wh battery, custom Bosch motor cover, 4-bar suspension system, tapered 1 1/8" - 1.5" head tube, post disc mount, Boost 148 x 12mm cold-forged dropout and replaceable hanger
Suspension Fork
Suntour Zeron35 LOR 29/27+, tapered alloy steerer, Boost 110 x 15mm thru axle, travel 150mm, 35mm stanchions
Rear Shock
Suntour DUAir LO-R8, lockout, 210 x 50mm
Drivetrain
Rear Derailleur
Shimano Deore M6000 Shadow Plus
Shift Levers
Shimano Deore M6000, Rapid Fire
Cassette
Shimano Deore HG500, 11-42T, 10-speed
Crank
FSA CK-745/IS / 14T / w/ chainguard
Bottom Bracket
Bosch System ISIS drive
Chain
KMC e10S w/ Missing Link, 10-speed
Wheels
Rims
Shimano MT400-Boost CL 15mm thru axle disc, 32H, front / Shimano MT400-Boost CL 12mm thru axle disc, 32H, rear, 14/15g stainless steel spokes, WTB STp i35 TCS double wall rims
Tires
Schwalbe Nobby Nick Performance, folding, 27.5 x 2.8", 67tpi
Brakes
Brakes
TRP Slate T4, 4 Piston hydraulic disc, rotors: 203mm front, 180mm rear
Brake Levers
TRP Slate T4, hydraulic disc 2 finger levers
Cockpit
Stem
Oval Concepts 600AM, 3D-forged 6061 alloy, 0 degree, 31.8mm clamp
Handlebar
Oval Concepts 205 flat bar, 6061 alloy, +/- 5mm rise, 9 degree sweep, 31.8mm clamp
Grips
Oval Concepts 234 Trail, single density Kraton
Headset
FSA NO.9M, 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval Concepts 238 Trail, steel rail
Seatpost
Oval OE, 6061 alloy micro adjust, 30.9mm diameter
Motor & Battery
Motor
Bosch Performance CX, mid-motor, 250W rated power, 20mph or 25kph maximum assist
Battery
Bosch Power Tube 500Wh w/ charger
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.517 mm | 1.413 mm | 1.376 mm | 1.348 mm | 1.332 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 706 mm | 736 mm | 759 mm | 779 mm | 788 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm | 99 mm |
| Stack | 610 mm | 611 mm | 620 mm | 629 mm | 638 mm |
| Reach | 402 mm | 432.3 mm | 450.7 mm | 466.7 mm | 479 mm |
| Top Tube Length | 585 mm | 615 mm | 635 mm | 655 mm | 670 mm |
| Seat Tube Angle | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° |
| Seat Tube Length | 400 mm | 432 mm | 483 mm | 534 mm | 584 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm | 486 mm |
| Wheelbase | 1186 mm | 1216 mm | 1238 mm | 1258 mm | 1274 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 785 mm | 791 mm | 785 mm | 790 mm | 830 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 158 cm | 161 cm | 165 cm | cm |
| Rider Max Height | 159 cm | 162 cm | 166 cm | 171 cm | cm |
About this model
Blackhill Evo LT 27.5+ 1.5 USA is part of the Fuji E Blackhill model. Fuji launched 10 e-bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Fuji Blackhill Evo 29 1.5 USA 2019 has a starting price of 3999$. Fuji Blackhill Evo LT 27.5+ 1.5 USA 2019 on the other hand is the most expensive at 4499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Fuji Blackhill Evo LT 27.5+ 1.5 USA price was 4199$. Comparing this to the average Enduro e-bike price, we see that the price is 13.96% smaller.
Overview of components
Fork
Fuji Blackhill Evo LT 27.5+ 1.5 USA 2019 e-bike is equipped with the SunTour Zeron fork, and has 150mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this e-bike has an aluminum one, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on Blackhill Evo LT 27.5+ 1.5 USA are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Blackhill Evo LT 27.5+ 1.5 USA comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
