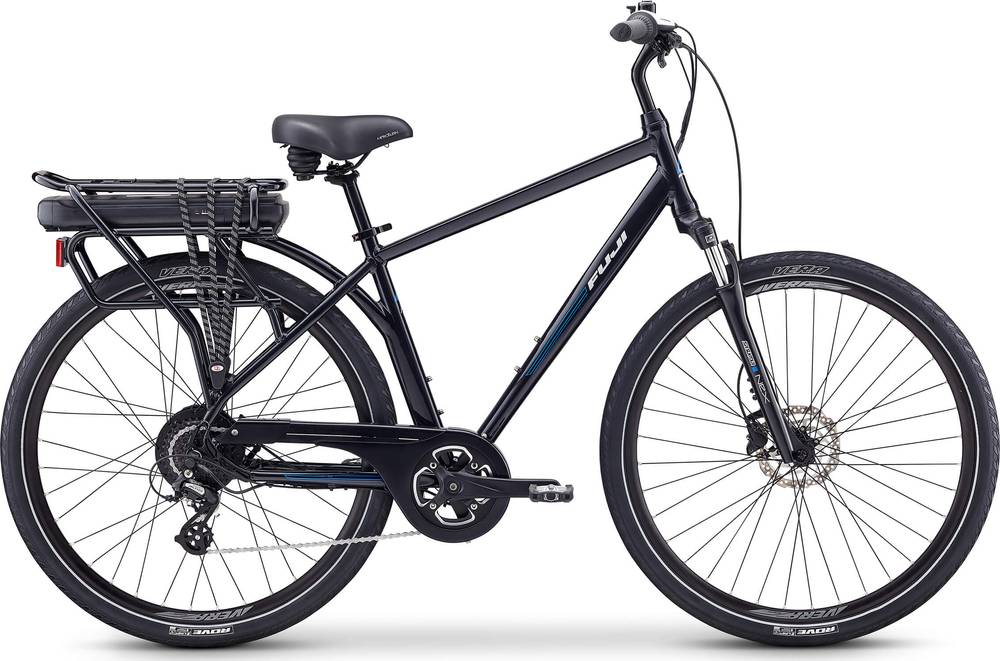

Fuji E-Crosstown 2020
2020 E-bike
Estimate price |
1,399$
Weight | 25.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Motor Bafang 250W hub-drive -
Battery Fuji Power Pack 468Wh w/ 2A charger -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
163cm - 179cm
LG
173cm - 180cm
XL
175cm - 183cm
XXL
180cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A1-SL Custom-Butted Alloy, integrated head tube, rear rack mounted battery, fender mounts
Suspension Fork
Suntour NEX disc, 700C coil, travel 63mm, steel steerer
Drivetrain
Rear Derailleur
Shimano Altus M310
Shift Levers
Shimano Tourney RS45 Revoshifter
Cassette
Shimano Acera HG31, 11-32T, 8-speed
Crank
Fuji 44T chainring, w/ chainring guard
Bottom Bracket
Bafang sealed cartridge BB with cadence sensor
Chain
KMC X8 w/ Missing Link, EPT anti-rust, 8-speed
Pedals
Polished aluminum body, Kraton grip, chromoly axle
Wheels
Rims
Shimano TX505 CL disc, 36H, front, Bafang rear motor bub, 6 bolt disc, 36H, stainless steel spokes, Vera Terra DPD22 aluminum double wall rims
Tires
Vera Rove 700 x 42c, E Line 50 w/ Phalanx puncture protection, reflective stripe
Brakes
Brakes
Shimano MT200 hydraulic disc, rotors: 160mm front, 160mm rear
Brake Levers
Shimano MT200 hydraulic 3 finger lever
Cockpit
Stem
Classic alloy quill stem
Handlebar
Alloy 25mm rise, 9° sweep, 25.4mm clamp
Grips
Oval Concepts Comfort, single density Kraton
Headset
1 1/8" threaded steel
Seat
Saddle
Selle Royal Metropolitan with Comfort Gel
Seatpost
Alloy micro-adjust, 27.2mm diameter
Motor & Battery
Motor
Bafang H400B rear hub motor, 250W rated power, 20mph maximum assist
Battery
Fuji Power Pack 468Wh w/ 2A charger
Remote
Bafang 5 mode LED display w/ walk assist
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.76 mm | 1.74 mm | 1.74 mm | 1.7 mm |
| Front Center | 623 mm | 629 mm | 638 mm | 648 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 75 mm | 82 mm | 77 mm | 77 mm |
| Stack | 636 mm | 636 mm | 640 mm | 641 mm |
| Reach | 361.5 mm | 366 mm | 368 mm | 378 mm |
| Top Tube Length | 575 mm | 581 mm | 590 mm | 600 mm |
| Seat Tube Angle | 71.5 ° | 72 ° | 71 ° | 71 ° |
| Seat Tube Length | 430 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 165 mm | 170 mm | 170 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm | 464 mm |
| Wheelbase | 1080 mm | 1086 mm | 1095 mm | 1105 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 776 mm | 808 mm | 832 mm | 854 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 163 cm | 173 cm | 175 cm | 180 cm |
| Rider Max Height | 179 cm | 180 cm | 183 cm | 191 cm |
About this model
E-Crosstown is part of the Fuji E E Crosstown model. 6 e-bikes variations carry this model name so far. Take a sneak peek at all Fuji E E Crosstown e-bikes models from 2020, by clicking here.
Model range prices
Fuji E-Crosstown 2020 is the most affordable e-bike of this model and has a price of 1399$. On the other hand, Fuji E-Crosstown LS 2020, is the most expensive and costs 1399$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Comfort e-bikes average price
According to our calculations, the average cost of a Comfort e-bike that is reliable is 1957$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Comfort e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1399$. In conclusion, this e-bike price is 39.89% smaller than the price of the average Comfort e-bike.
Comfort e-bikes average weight
If we make a quick analysis of the average weight of a Comfort e-bike, we get 24.38 kg (53.75 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 25.3 kg (55.78 lbs), the E-Crosstown model is slightly heavier than average. In conclusion, the average Comfort e-bike weighs 3.77% less than E-Crosstown.
Overview of components
Fork
The E-Crosstown comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
When leaving the production line, the E-Crosstown model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 163 cm – 191 cm (5.35 ft – 6.27 ft). In conclusion, it won’t take much to find one that’s right for you.
