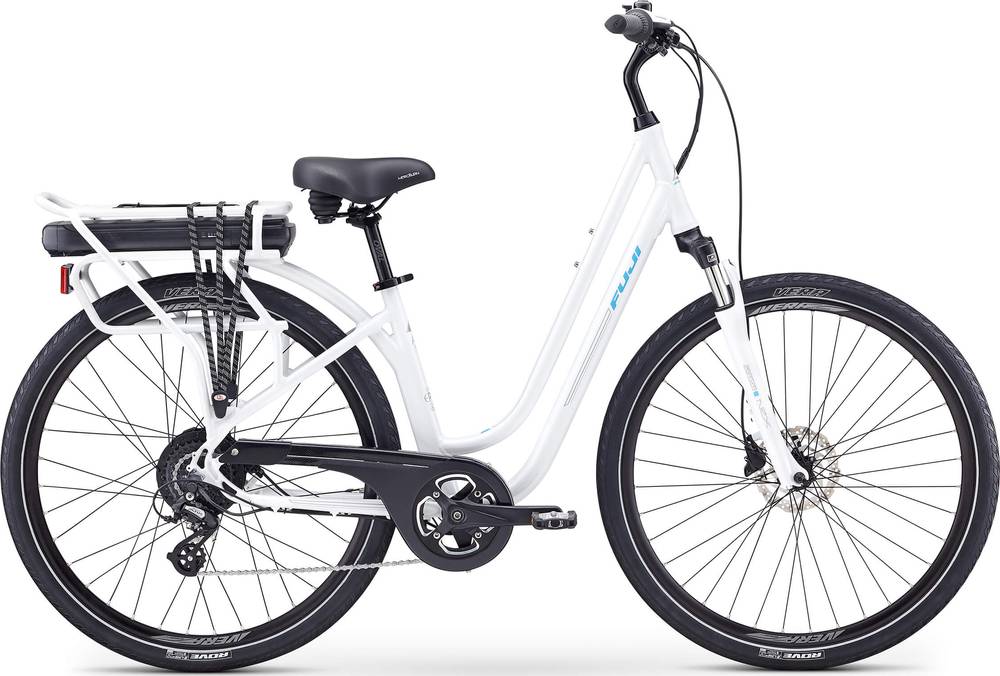

Fuji E-Crosstown LS 2020
2020 E-bike
Estimate price |
1,399$
Weight | 25.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Motor Bafang 250W hub-drive -
Battery Fuji Power Pack 468Wh w/ 2A charger -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 162cm
MD
160cm - 170cm
LG
167cm - 177cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A1-SL Custom-Butted Alloy, integrated head tube, rear rack mounted battery, fender mounts
Suspension Fork
Suntour NEX disc, 700C coil, travel 63mm, steel steerer
Drivetrain
Rear Derailleur
Shimano Altus M310
Shift Levers
Shimano Tourney RS45 Revoshifter
Cassette
Shimano Acera HG31, 11-32T, 8-speed
Crank
Fuji 44T chainring, w/ chainring guard
Bottom Bracket
Bafang sealed cartridge BB with cadence sensor
Chain
KMC X8 w/ Missing Link, EPT anti-rust, 8-speed
Pedals
Polished aluminum body, Kraton grip, chromoly axle
Wheels
Rims
Shimano TX505 CL disc, 36H, front, Bafang rear motor bub, 6 bolt disc, 36H, stainless steel spokes, Vera Terra DPD22 aluminum double wall rims with stainless eyelets
Tires
Vera Rove 700 x 42c, E Line 50 w/ Phalanx puncture protection, reflective stripe
Brakes
Brakes
Shimano MT200 hydraulic disc, rotors: 160mm front, 160mm rear
Brake Levers
Shimano MT200 hydraulic 3 finger lever
Cockpit
Stem
Classic alloy quill stem
Handlebar
Alloy 25mm rise, 9° sweep, 25.4mm clamp
Grips
Oval Concepts Comfort, single density Kraton
Headset
1 1/8" threaded steel
Seat
Saddle
Selle Royal Metropolitan with Comfort Gel
Seatpost
Alloy micro-adjust, 27.2mm diameter
Motor & Battery
Motor
Bafang H400B rear hub motor, 250W rated power, 20mph maximum assist
Battery
Fuji Power Pack 468Wh w/ 2A charger
Remote
Bafang 5 mode LED display w/ walk assist
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.88 mm | 1.87 mm | 1.83 mm |
| Front Center | 627 mm | 635 mm | 647 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 78 mm | 76 mm | 76 mm |
| Stack | 672 mm | 676 mm | 681 mm |
| Reach | 357 mm | 362 mm | 372 mm |
| Top Tube Length | 561 mm | 570 mm | 581 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 385 mm | 432 mm | 483 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 185 mm | 195 mm | 200 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1089 mm | 1097 mm | 1109 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Standover Height | 470 mm | 484 mm | 520 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 160 cm | 167 cm |
| Rider Max Height | 162 cm | 170 cm | 177 cm |
About this model
E-Crosstown LS completes the Fuji E E Crosstown model. Fuji released 6 e-bikes variations of this model so far. Take a sneak peek at all Fuji E E Crosstown e-bikes models from 2020, by clicking here.
Model range prices
Fuji E-Crosstown 2020 is the most economical model, with a starting price of 1399$. Fuji E-Crosstown LS 2020 on the other hand costs 1399$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Comfort e-bikes average price
According to our calculations, the average cost of a Comfort e-bike that is reliable is 1957$. However, you could also get a good Comfort e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2020 and its price was 1399$. If we compare this with the average Comfort e-bike cost we notice that the price is 39.89% smaller.
Comfort e-bikes average weight
If we make a quick analysis of the average weight of a Comfort e-bike, we get 24.38 kg (53.75 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
E-Crosstown LS weighs 25.3 kg (55.78 lbs) and is slightly heavier than the average. In short, the average Comfort e-bike weight is 3.77% lower than this one.
E-Crosstown LS components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
E-Crosstown LS has a steel fork, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
When it comes to wheels, the E-Crosstown LS e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Crosstown LS has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 152 cm – 177 cm (4.99 ft – 5.81 ft). In short, it won’t be difficult to find the right one for you.
