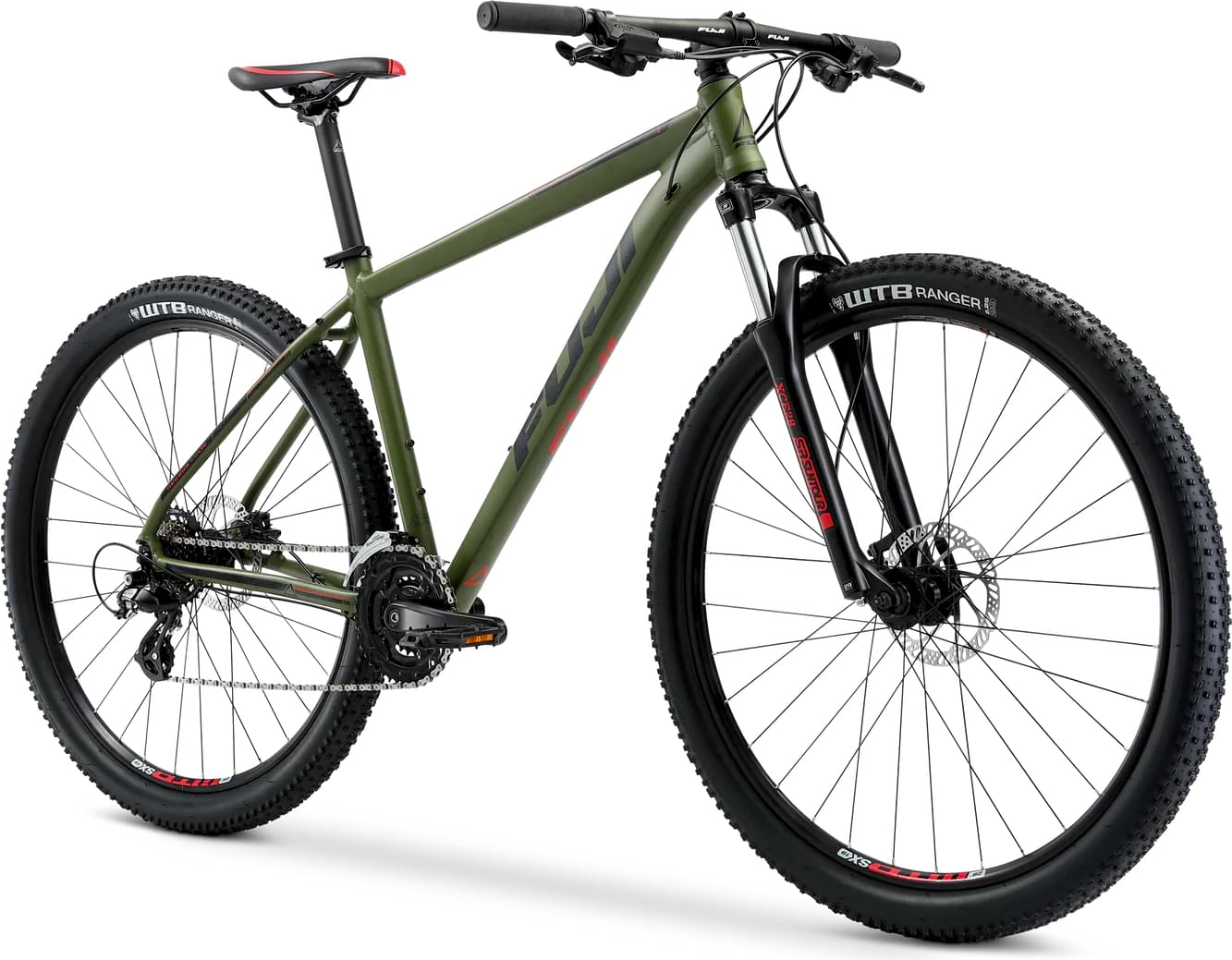

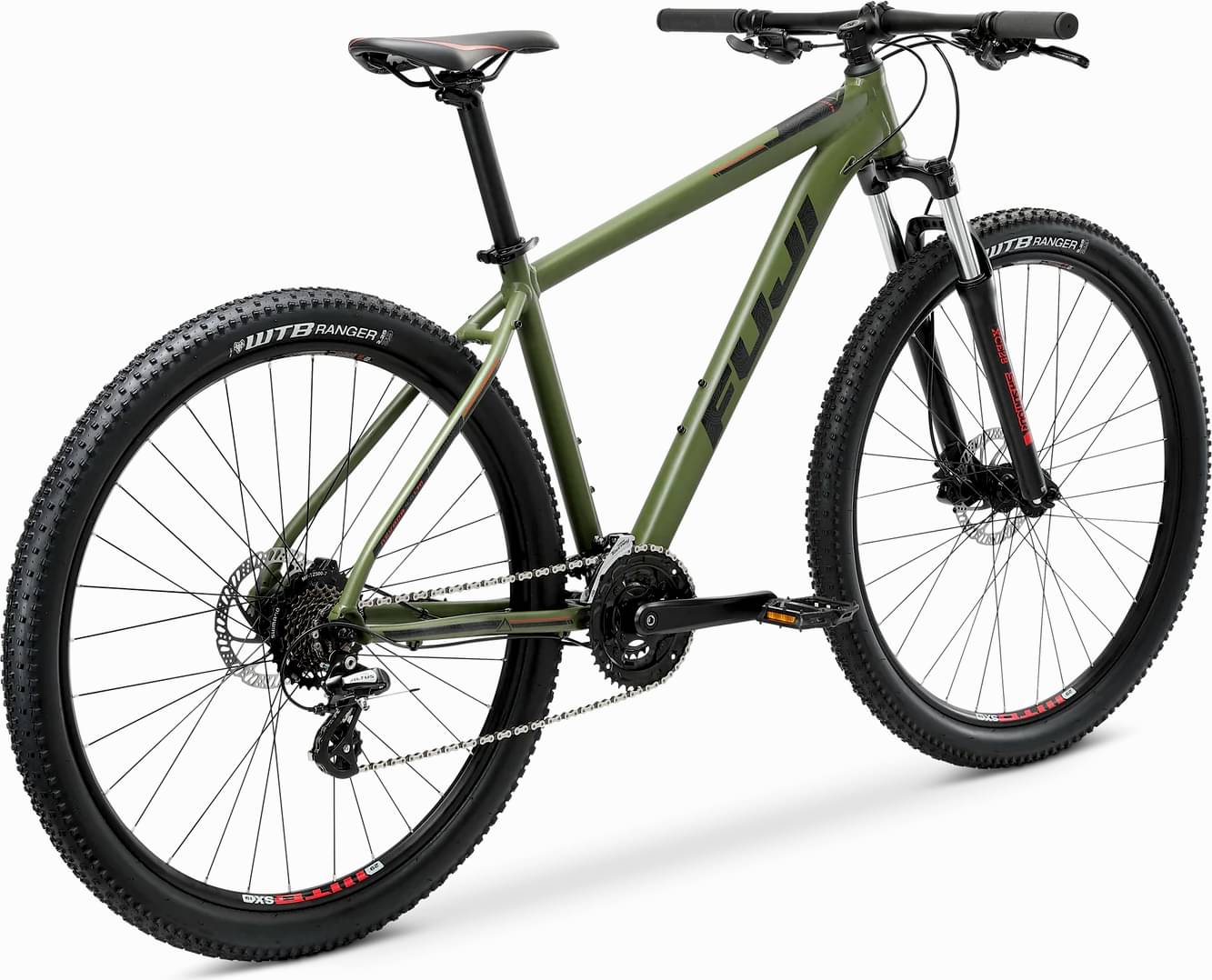

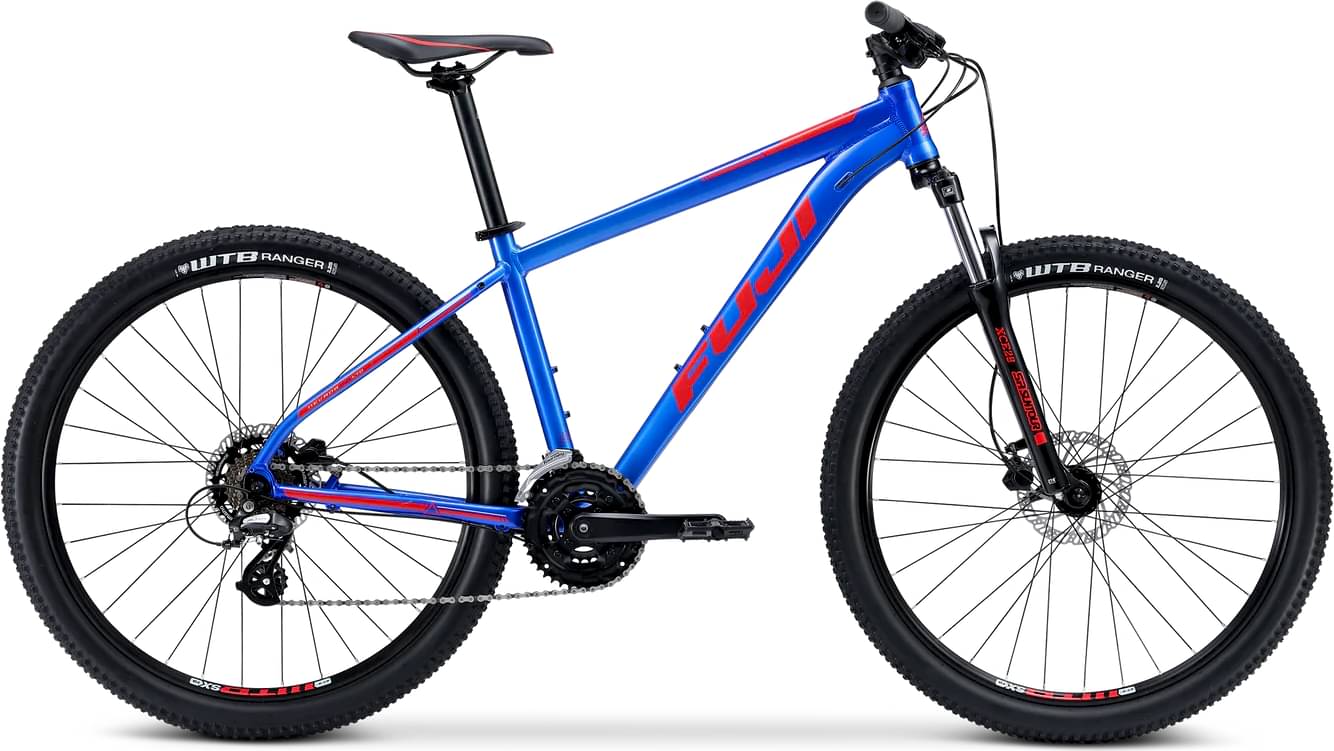

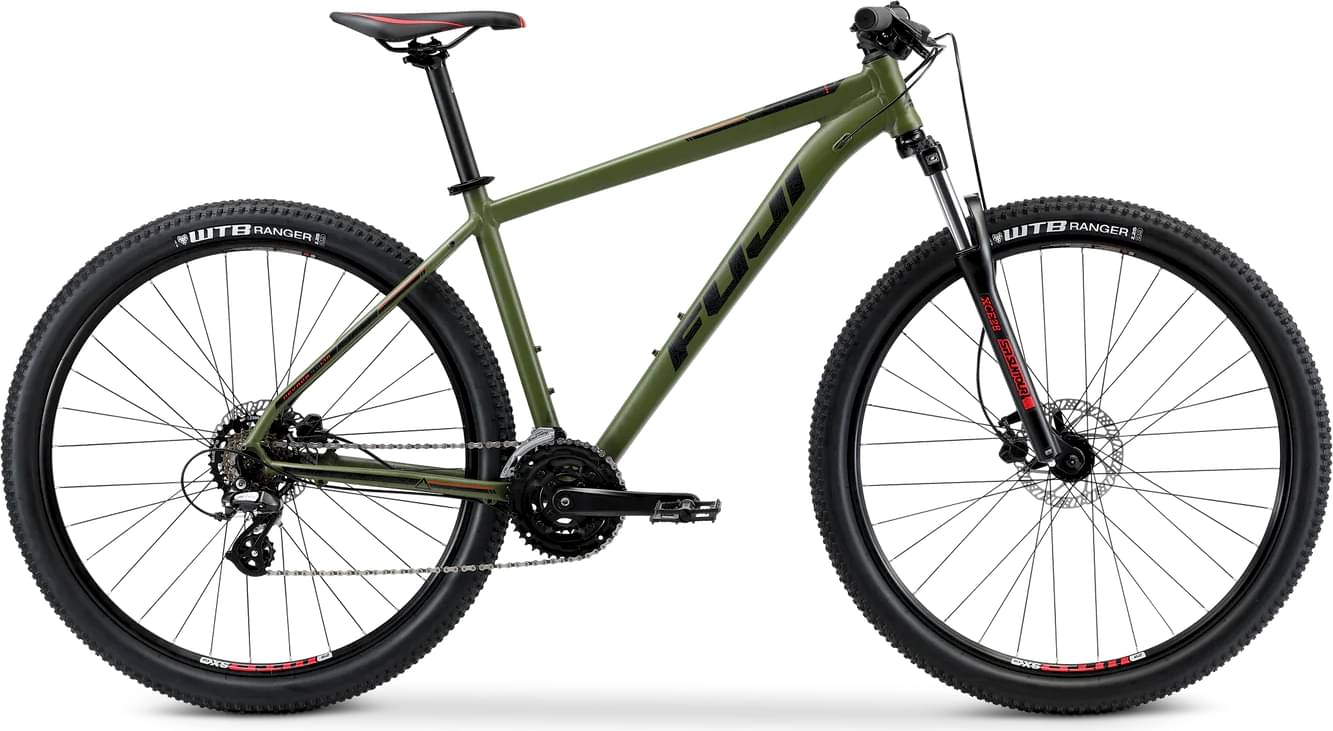

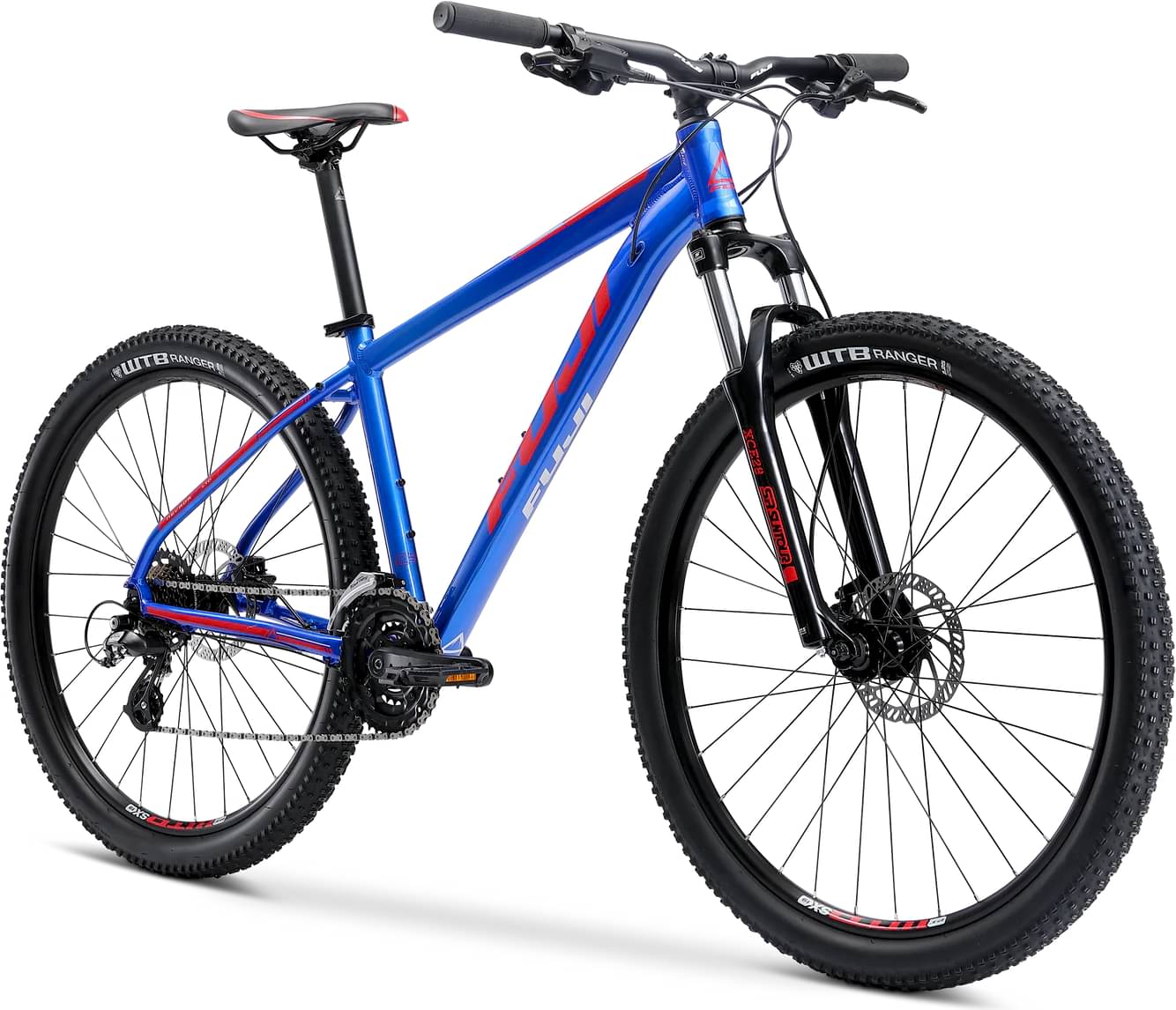

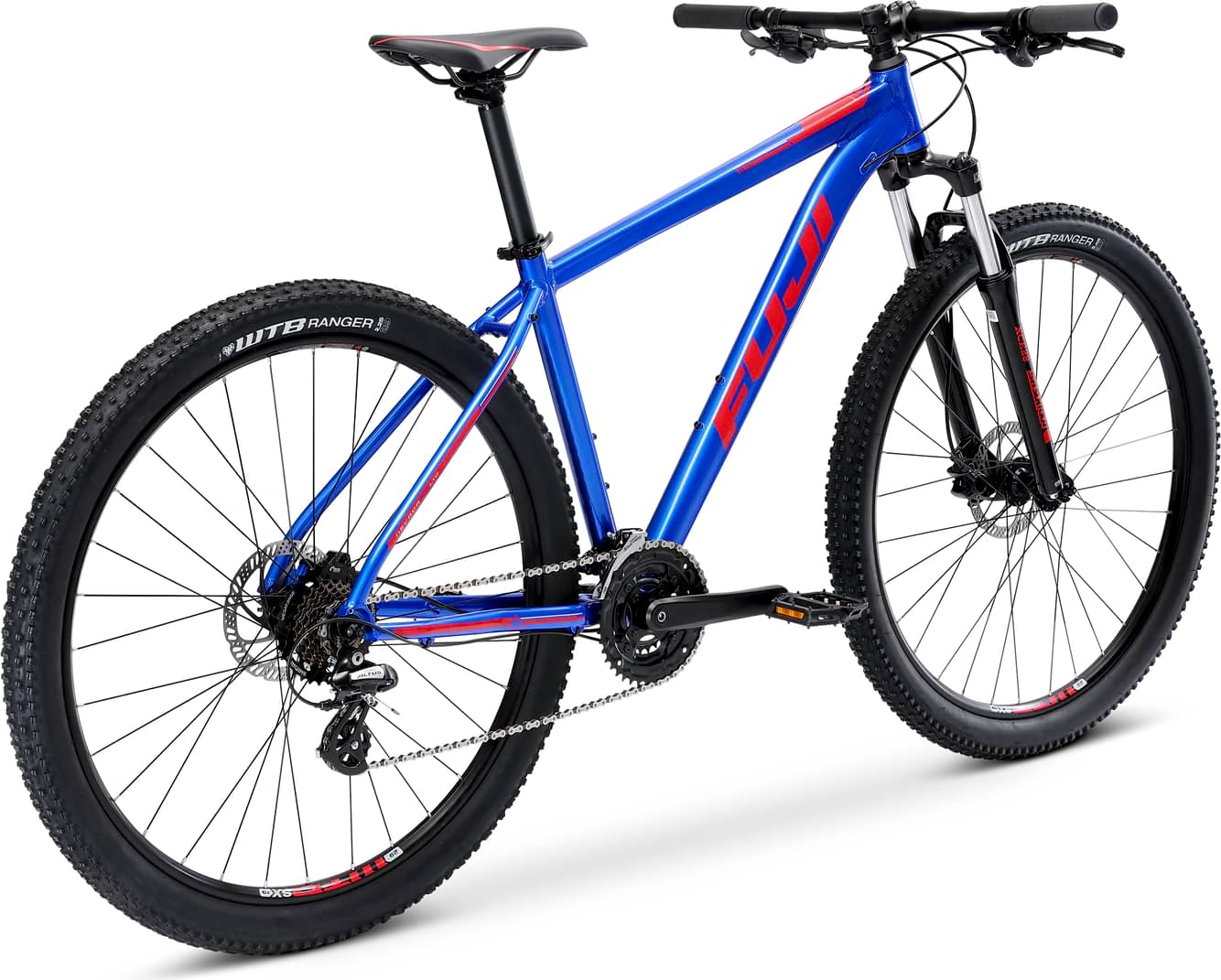

Fuji Nevada 29 4.0 LTD 2023
2023 Youth
Estimate price |
802$
Weight | 14.97 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle
Suspension Fork
SR Suntour SF19-XCE-DS-29, 100mm
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Tourney
Shift Levers
Shimano Altus, Rapid Fire, 3 x 7-speed
Cassette
Shimano TZ500 freewheel, 14-34T
Crank
Prowheel, 42/34/24T
Bottom Bracket
Sealed cartridge bearing
Chain
KMC HV500
Pedals
Resin platform
Wheels
Rims
WTB SX19 rims 32H, Formula DC-20 front, DC-31 rear hub, black spokes
Tires
WTB Ranger Comp, 29" x 2.25", 27tpi
Brakes
Brakes
Tektro M275, 160mm rotors
Brake Levers
Tektro M275
Cockpit
Stem
Fuji, forged aluminum, +/-6°
Handlebar
Fuji flat bar, alloy, 710mm
Grips
Fuji Performance Grip
Headset
1 1/8" sealed bearings
Seat
Saddle
Fuji Performance Saddle
Seatpost
Fuji, alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.4 mm | 1.38 mm | 1.35 mm |
| Front Center | 690 mm | 715 mm | 733 mm | 752 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Stack | 624 mm | 628.5 mm | 638 mm | 647 mm |
| Reach | 424 mm | 448 mm | 462 mm | 478 mm |
| Top Tube Length | 614 mm | 639 mm | 656 mm | 675 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 470 mm | 520 mm | 560 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1137 mm | 1163 mm | 1180 mm | 1200 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 812 mm | 837 mm | 865 mm | 889 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
Nevada 29 4.0 LTD is a Fuji Nevada model. There are 241 bikes that carry this model name. Take a sneak peek at all Fuji Nevada bikes models from 2023, by clicking here.
Model range prices
Fuji Nevada 27.5 1.9 2023 is the most economical model, with a starting price of 413$. Fuji Nevada 29 1.0 LTD 2023 on the other hand costs 1167$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Mountain bikes average price
If you want an acceptable Mountain bike you should know that the average price is 616$. However, even if your budget is less than the average, you might still be able to get a top-quality Mountain bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Fuji Nevada 29 4.0 LTD price was 742$. Doing a quick comparison, we notice that Nevada 29 4.0 LTD price is 20.45% higher than the average cost of a Mountain bike.
Average weight for Mountain bikes
Mountain bikes have an average weight of 11.4 kg (25.13 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 14.97 kg (33 lbs), Fuji bike is much heavier than average. To sum up, it’s 31.32% heavier than the average weight of Mountain bikes.
Nevada 29 4.0 LTD components
Fork
Fuji Nevada 29 4.0 LTD 2023 bike is equipped with the Suntour XCE fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Nevada 29 4.0 LTD bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Nevada 29 4.0 LTD has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
