Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork SunTour XCR
-
Groupset Deore, Altus -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy front and rear triangle w/ shaped oversized down tube, tapered 1 1/8" - 1.5" head tube, threaded bottom bracket, sealed cartridge bearing pivots, A4 suspension system, Boost 148x12mm dropout, replaceable hanger, 120mm travel
Suspension Fork
SR Suntour SF15-XCR-LO-R Coil 29 w/ tapered alloy steerer, 100x15mm thru axle, 120mm travel
Rear Shock
X-Fusion 02 Pro RL
Drivetrain
Rear Derailleur
Shimano Deore, 9-speed
Front Derailleur
Shimano Altus, direct-mount
Shift Levers
Shimano Alivio, Rapid Fire, 9-speed
Cassette
Shimano HG200-9, 11-36T, 9-speed
Crank
Shimano Acera, alloy, 36/22T
Bottom Bracket
VP-BC73, sealed cartridge bearing
Chain
KMC Z99, 9-speed
Pedals
Resin platform
Wheels
Rims
Vera Terra DPD16 rims 32h, Formula DC-51 front, DC-1248 rear disc hubs, 14g stainless black spokes
Tires
Schwalbe Rapid Rob, K-Guard, 29" x 2.25", 50tpi
Brakes
Brakes
Tektro HD-M285, hydraulic disc, 180/160mm rotors
Brake Levers
Tektro HD-M285, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 3D-forged 6061 stem body, ±7°
Handlebar
Oval Concepts 205 riser bar, 6061 alloy, ± 5mm rise, 9° sweep, 31.8mm clamp
Grips
Oval Concepts 234, large diameter pads, single density Kraton
Headset
FSA NO.42B, 1 1/8" - 1.5", semi-cartridge bearings
Seat
Saddle
Oval Concepts 238 trail, steel rail
Seatpost
Oval Concepts, 6061 alloy, 30.9mm diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.31 mm | 1.28 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 697 mm | 723 mm | 749 mm | 770 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 588.9 mm | 598.1 mm | 607.4 mm | 616.7 mm |
| Reach | 418 mm | 440.4 mm | 462.8 mm | 480.3 mm |
| Top Tube Length | 581 mm | 606 mm | 631 mm | 651 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 401 mm | 432 mm | 486.2 mm | 536.3 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1134 mm | 1160 mm | 1186 mm | 1207 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 797 mm | 802 mm | 815 mm | 838 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

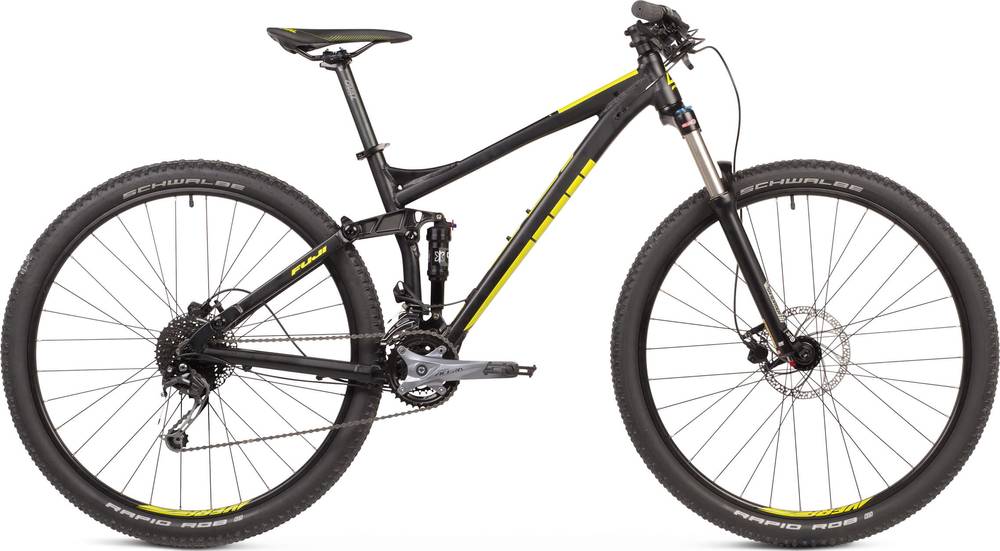

About this model
Outland 29 1.3 is a Fuji Outland model. Fuji released 69 bikes variations of this model so far. You can easily view all of the Fuji Outland bikes models from 2018, here.
Model range prices
The most economical model, the Fuji Outland 29 1.3 2018 has a starting price of 1549$. Fuji Outland 29 1.1 2018 on the other hand is the most expensive at 1949$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Fuji released this model in 2018, its price was 1549$. If we compare this with the average Trail bike cost we notice that the price is 78.31% smaller.
Overview of components
Fork
The fork installed on this bike is the SunTour XCR model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
Outland 29 1.3 has an aluminum fork, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
The Outland 29 1.3 has a rear shock with a travel of 120mm. The model X-Fusion 02 Pro RL is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Fuji Outland 29 1.3 2018, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Outland 29 1.3 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
