Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork SunTour XCR
-
Groupset Deore, Alivio -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
173cm - 180cm
LG
178cm - 185cm
XL
173cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy, sealed cartridge bearing pivots, A4 suspension, Boost 148x12mm, 120mm
Suspension Fork
SR Suntour SF15-XCR-LO-R Coil 29 w/ tapered alloy steerer, 100x15mm, 120mm
Rear Shock
X-Fusion 02 Pro RL
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Alivio
Shift Levers
Shimano Alivio, Rapid Fire, 2 x 9-speed
Cassette
Shimano HG200-9, 11-36T
Crank
Shimano Acera, 36/22T
Bottom Bracket
Shimano, threaded
Chain
KMC Z9
Pedals
Resin platform
Wheels
Rims
Fuji Aluminum rims 32H, Formula DC-51 front, DC-1248 rear hubs, stainless black spokes
Tires
Maxxis Ardent, 29" x 2.25", 60tpi, EXO, folding
Brakes
Brakes
Tektro HD-M285, 180/160mm rotors
Brake Levers
Tektro HD-M285
Cockpit
Stem
Oval Concepts 313, 3D-forged alloy, ±7°
Handlebar
Oval Concepts 205 riser bar, 6061 alloy, ± 5mm rise, 760mm
Grips
Fuji Performance Grip
Headset
FSA 1 1/8" - 1.5", sealed bearings
Seat
Saddle
WTB Volt Sport
Seatpost
Oval Concepts, alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.31 mm | 1.28 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 697 mm | 723 mm | 749 mm | 770 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 588.9 mm | 598.1 mm | 607.4 mm | 616.7 mm |
| Reach | 418 mm | 440.4 mm | 462.8 mm | 480.3 mm |
| Top Tube Length | 581 mm | 606 mm | 631 mm | 651 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 401 mm | 432 mm | 486.2 mm | 536.3 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1134 mm | 1160 mm | 1186 mm | 1207 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 797 mm | 802 mm | 815 mm | 838 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 173 cm | 178 cm | 173 cm |
| Rider Max Height | 175 cm | 180 cm | 185 cm | 193 cm |
Model Overview

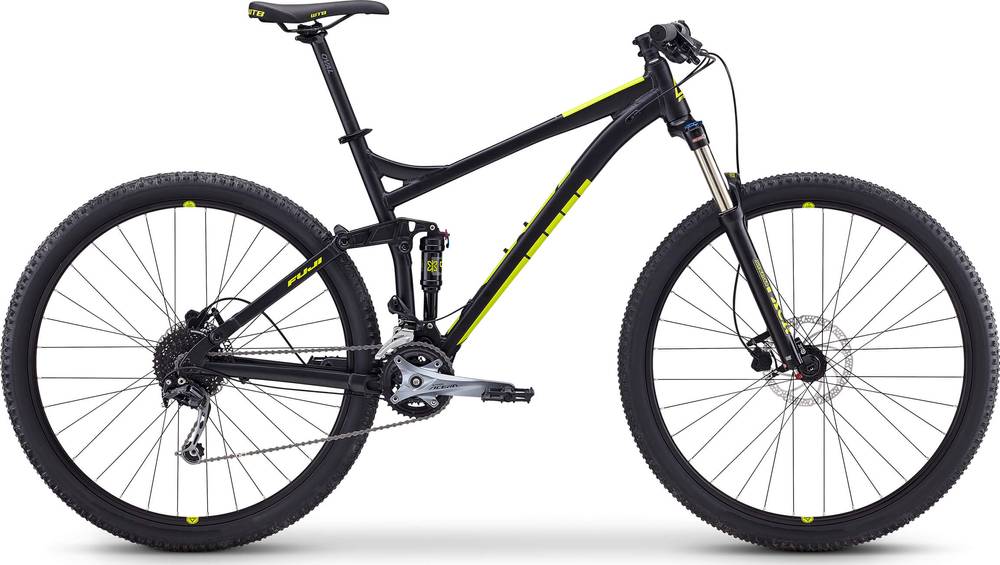

Outland 29 1.3 belongs to the Fuji Outland model. Fuji launched 69 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Fuji Outland 29 1.3 2020 is the most economical model, with a starting price of 1299$. Fuji Outland 29 1.0 2020 on the other hand costs 2299$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 1299$. Comparing this to the average Trail bike price, we see that the price is 112.63% lower.
Overview of components
Fork
This bike has the SunTour XCR fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
As for the rear shock, this bike has the X-Fusion 02 Pro RL model, with a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Outland 29 1.3 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Outland 29 1.3 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Outland 29 1.3 comes in 4 sizes, that range from 165 cm – 193 cm (5.41 ft – 6.33 ft). In short, it won’t be difficult to find the right one for you.
