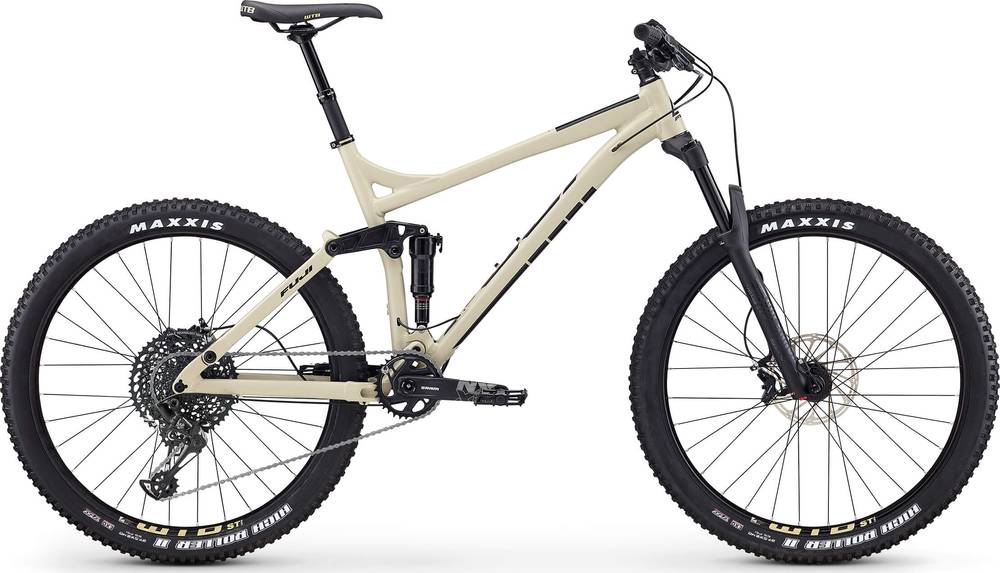

Fuji Reveal 27.5 1.0 2020
2020 Mountain
Estimate price |
2,299$
Weight | 14.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Sektor
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 173cm
MD
170cm - 178cm
LG
175cm - 185cm
XL
173cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy, sealed cartridge bearing pivots, A4 suspension, Boost 148x12mm, 120mm
Suspension Fork
RockShox Sektor RL 27.5 Solo Air, tapered alloy steerer, Boost 110x15mm, 130mm
Rear Shock
RockShox Deluxe RL
Drivetrain
Rear Derailleur
SRAM NX Eagle
Front Derailleur
N/A
Shift Levers
SRAM NX Eagle, 1 x 12-speed
Cassette
SRAM PG-1230 10-50T
Crank
SRAM NX Eagle, 32T
Bottom Bracket
SRAM DUB, threaded
Chain
SRAM NX Eagle
Pedals
Alloy platform
Wheels
Rims
WTB ST i29 32H rims, Formula CL-511 front, DC-1248 rear hubs, stainless black spokes
Tires
Maxxis High Roller II, 27.5" x 2.40", 60tpi, EXO, Tubeless Ready, folding
Brakes
Brakes
SRAM Guide T, 180mm rotors
Brake Levers
SRAM Guide T
Cockpit
Stem
Oval Concepts 600AM, alloy, 0°
Handlebar
Oval Concepts 215 riser bar, alloy, 15mm rise, 760mm
Grips
WTB Waffel Grip, Single lock on
Headset
FSA 1 1/8" - 1.5", sealed bearings
Seat
Saddle
WTB Volt Sport
Seatpost
KS E30i Integra dropper, 30.9mm, 15, 17" - 100mm travel, 19, 21" - 125mm travel, Southpaw Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.279 mm | 1.236 mm | 1.197 mm | 1.173 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 691 mm | 717 mm | 743 mm | 764 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 547.7 mm | 557 mm | 566.2 mm | 575.5 mm |
| Reach | 428.1 mm | 450.5 mm | 473 mm | 490.8 mm |
| Top Tube Length | 580 mm | 605 mm | 630 mm | 650 |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 432 mm | 488 mm | 533.4 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1121 mm | 1147 mm | 1173 mm | 1194 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 781 mm | 786 mm | 800 mm | 822 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 170 cm | 175 cm | 173 cm |
| Rider Max Height | 173 cm | 178 cm | 185 cm | 193 cm |
Model Overview
Reveal 27.5 1.0 is a Fuji Reveal model. There are 40 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Fuji Reveal 27.5 1.3 2020 is the most affordable bike of this model and has a price of 1599$. On the other hand, Fuji Reveal 27.5 1.0 2020, is the most expensive and costs 2299$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2020 and its price was 2299$. Comparing this to the average Trail bike price, we see that the price is 20.14% smaller.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 14.6 kg (32.19 lbs), Fuji bike is considerably heavier than average. In short, the average Trail bike weight is 12.48% lower than this one.
Reveal 27.5 1.0 components
Fork
The RockShox Sektor is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
Reveal 27.5 1.0 has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
The Reveal 27.5 1.0 has a rear shock with a travel of 120mm. The model RockShox Deluxe RL is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Reveal 27.5 1.0 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Reveal 27.5 1.0 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 165 cm – 193 cm (5.41 ft – 6.33 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Fuji Reveal 27.5 1.0 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
