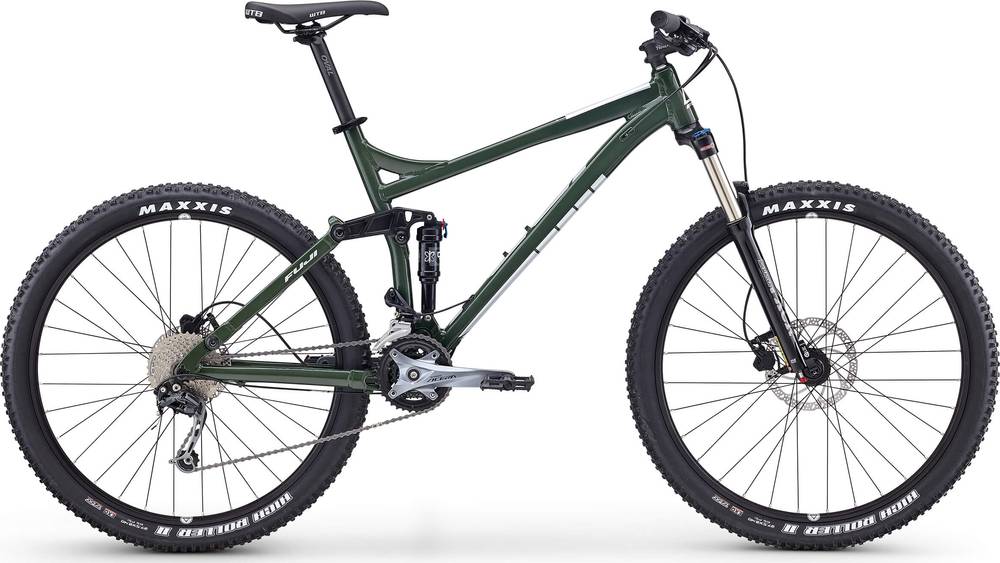

Fuji Reveal 27.5 1.3 2020
2020 Mountain
Estimate price |
1,599$
Weight | 15.44 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork SunTour XCR
-
Groupset Deore, Alivio -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 173cm
MD
170cm - 178cm
LG
175cm - 185cm
XL
173cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy, sealed cartridge bearing pivots, A4 suspension, Boost 148x12MM, 120MM
Suspension Fork
SR Suntour SF15-XCR-LO-R Coil 27.5 w/ tapered alloy steerer, 100x15mm, 120mm
Rear Shock
X-Fusion 02 Pro RL
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Alivio
Shift Levers
Shimano Alivio, Rapid Fire, 2 x 9-speed
Cassette
Shimano HG200-9, 11-36T
Crank
Shimano Acera, 36/22T
Bottom Bracket
VP-BC73, sealed cartridge bearing
Chain
KMC Z99
Pedals
Resin platform
Wheels
Rims
Fuji Aluminum rims 32H, Formula DC-51 front, DC-1248 rear hubs, stainless black spokes
Tires
Maxxis High Roller II, 27.5" x 2.40", 60tpi, EXO, folding
Brakes
Brakes
Tektro HD-M285, 180/160mm rotors
Brake Levers
Tektro HD-M285
Cockpit
Stem
Oval Concepts 600AM, alloy, 0°
Handlebar
Oval Concepts 215 riser bar, alloy, 15mm rise, 760mm
Grips
Fuji Performance Grip
Headset
FSA 1 1/8" - 1.5", sealed bearings
Seat
Saddle
Oval Concepts 238 trail
Seatpost
Oval Concepts, alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.279 mm | 1.236 mm | 1.197 mm | 1.173 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 691 mm | 717 mm | 743 mm | 764 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 547.7 mm | 557 mm | 566.2 mm | 575.5 mm |
| Reach | 428.1 mm | 450.5 mm | 473 mm | 490.8 mm |
| Top Tube Length | 580 mm | 605 mm | 630 mm | 650 |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 432 mm | 488 mm | 533.4 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1121 mm | 1147 mm | 1173 mm | 1194 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 781 mm | 786 mm | 800 mm | 822 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 170 cm | 175 cm | 173 cm |
| Rider Max Height | 173 cm | 178 cm | 185 cm | 193 cm |
About this model
Reveal 27.5 1.3 is a Fuji Reveal model. There are 40 bikes that carry this model name. You can easily view all of the Fuji Reveal bikes models from 2020, here.
Model range prices
Fuji Reveal 27.5 1.3 2020 is the most affordable bike of this model and has a price of 1599$. On the other hand, Fuji Reveal 27.5 1.0 2020, is the most expensive and costs 2299$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Fuji released this model in 2020, its price was 1599$. Comparing the average cost of a Trail bike to this one, you will see that Reveal 27.5 1.3 price is 72.73% smaller.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Fuji Reveal 27.5 1.3 it’s weighing 15.44 kg (34.04 lbs). At this weight, is much heavier than average. In conclusion, the average Trail bike weighs 18.95% less than Reveal 27.5 1.3.
Reveal 27.5 1.3 components
Fork
The SunTour XCR is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
The shock that’s installed on this bike is X-Fusion 02 Pro RL, with a travel distance of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Fuji Reveal 27.5 1.3 2020, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 165 cm – 193 cm (5.41 ft – 6.33 ft). In short, it won’t be difficult to find the right one for you.
