garneau E-Espace R + 2023
2023 E-bike
Estimate price |
2,591$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset microSHIFT, microSHIFT Advent -
Suspension Rigid -
Motor Bafang 350W 45Nm hub-drive -
Battery Bafang 36V/ 17.8Ah (640Wh) integrated, smart BMS, 32km/h -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Espace step, cadre abaissé, moteur-roue, aluminium S-6 LT hydroformé, batterie intégrée, disque
Suspension Fork
E-Espace, S-6, aluminium, disc
Drivetrain
Rear Derailleur
Microshift Acolyt, w/clutch, 8-speed
Shift Levers
Microshift xpress plus
Cassette
Sugek, 11-36T, 8-speed
Crank
Prowheel, Narrow wide, 40T
Bottom Bracket
Bafang SR PA231.32.ST torque sensor bb
Chain
KMC Z8.3 EPT, Anti-rust
Pedals
Platform
Wheels
Front Hub
Caribou co. disc, QR 9 x 100 mm
Rear Hub
Bafang H400B, 6 bolts disc
Rims
Torngat D21-700, 36h
Spokes
12/13g, stainless steel
Tires
CST Xpedium ampero, reflective, 700 x 45c
Brakes
Brakes
Jieke Y-5, hydraulic disc
Brake Levers
jieke Y-5, w/sensor control
Cockpit
Stem
Caribou co. alloy, 45mm, 17?
Handlebar
Caribou Panache 2, 75 mm riser, Ø31.8 mm
Grips
Velo Ergo, lock-on
Headset
ZS44/28.6 | ZS44/30.0, 1 1/8''
Seat
Saddle
Selle Royal Essenza Relaxed
Seatpost
Caribou Panache 2, Ø30,9 mm
Motor & Battery

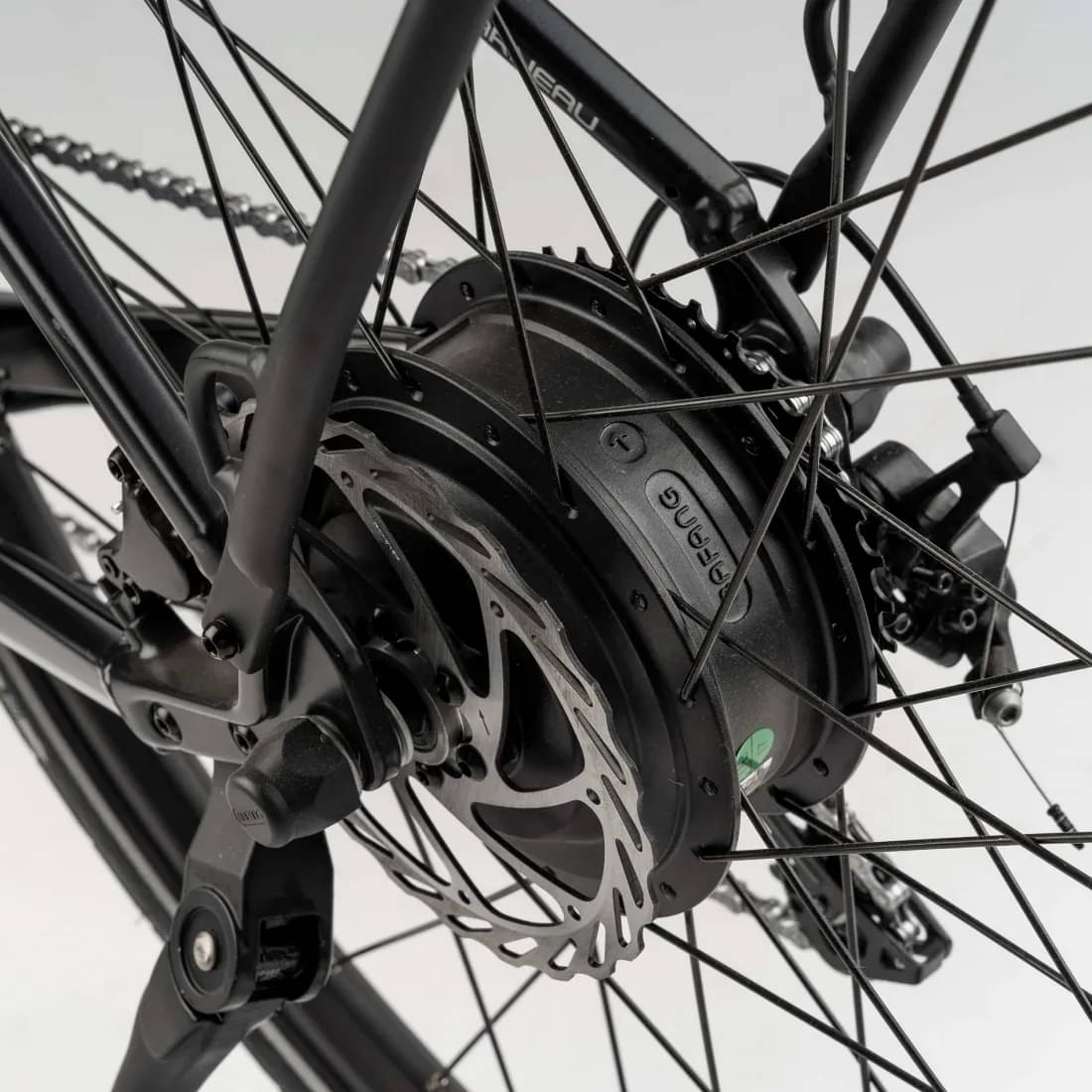

Motor
Bafang H400B 36V/350W, 45Nm, 32 km/h
Battery
Bafang 36V/ 17.8Ah (640Wh) integrated, smart BMS, 32km/h
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.55 mm |
| Front Center | 644 mm | 676 mm |
| Rake | 50 mm | 50 mm |
| Trail | 70 mm | 70 mm |
| Stack | 601 mm | 643 mm |
| Reach | 400 mm | 416 mm |
| Top Tube Length | 586 mm | 621 mm |
| Seat Tube Angle | 73 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 490 mm |
| Head Tube Angle | 71 ° | 71 ° |
| Head Tube Length | 180 mm | 230 mm |
| Chainstay Length | 446 mm | 446 mm |
| Wheelbase | 1081 mm | 1114 mm |
| Bottom Bracket Drop | 70 mm | 65 mm |
| Standover Height | 728 mm | 770 mm |
| Wheels | 700 | 700 |
About this model
E-Espace R + belongs to the Garneau E E Espace model. Garneau launched 8 e-bikes of this model so far. Take a sneak peek at all Garneau E E Espace e-bikes models from 2023, by clicking here.
Model range prices
Garneau E-Espace R + Step 2023 is the most affordable e-bike of this model and has a price of 2621$. On the other hand, Garneau E-Espace P Max 2023, is the most expensive and costs 3492$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Garneau E-Espace R + price was 2621$. In conclusion, this e-bike price is 5.69% more expensive than the price of the average Hybrid e-bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has an aluminum one, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
When leaving the production line, the E-Espace R + model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Espace R + has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
