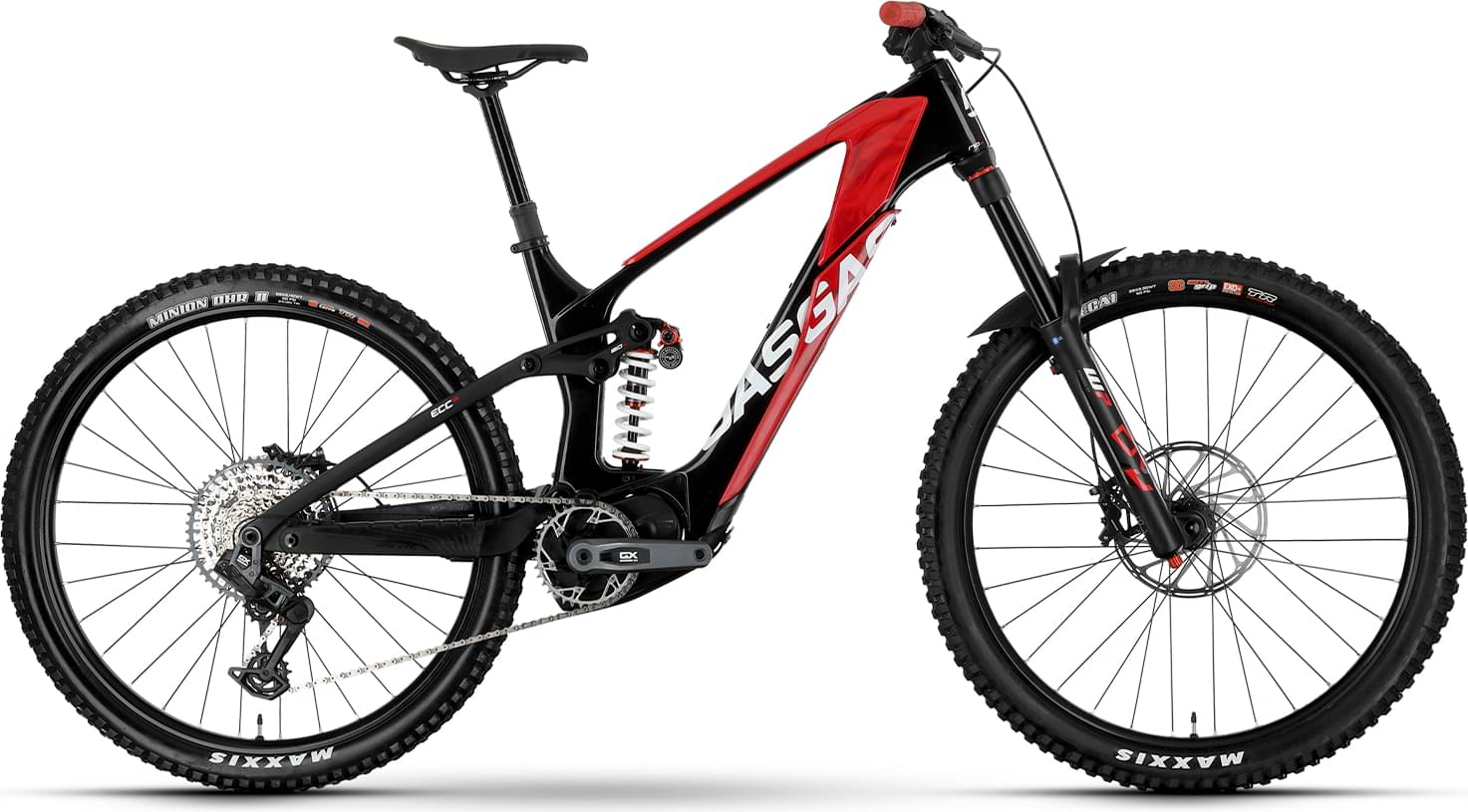

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork DVO Onyx SC
-
Groupset GX Eagle Transmission, SRAM -
Suspension Full -
Motor 250W 90Nm mid-drive -
Battery SRAM Eagle Powertrain, 630 Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Carbon, Integrated battery, Boost, 160 mm
Suspension Fork
DVO Onyx D1CV SL, Air, 170 mm, tapered
Rear Shock
DVO JadeX CV Coil, Coil, 205x65 mm
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission, 12-S
Shift Levers
SRAM AXS Pod Ultimate Controller
Cassette
SRAM XS-1275, 10-52 T
Crank
SRAM XX Eagle Transmission
Chain
SRAM GX Eagle Transmission Flattop
Chain Guide
Direct Mount
Pedals
GASGAS, aluminum
Wheels
Rims
Front: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210F, 6-hole, 15x110 mm, thru axle, Rear: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210R, 6-hole, 12x148 mm, thru axle
Tires
Maxxis Assegai, 63-622, 29x2.5,
Brakes
Brakes
Front: SRAM G2 RS, 4-piston, Hydraulic disc brake, Rear: SRAM G2 RS, 4-piston, Hydraulic disc brake
Cockpit
Stem
GASGAS 35, 0 °, Ahead
Handlebar
GASGAS Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
Grips
GASGAS MTB, Lock-on grips
Headset
Acros AZX-579 ZS56/ZS56
Seat
Saddle
Selle San Marco GND
Seatpost
GASGAS Pro, 34.9 mm, Dropper post
Motor & Battery
Motor
SRAM Eagle Powertrain Drive Unit, 250 W, 90 Nm
Battery
SRAM Eagle Powertrain, 630 Wh
Charger
SRAM Eagle Powertrain Charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.442 mm | 1.396 mm | 1.352 mm |
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm |
| Front Center | 798 mm | 826 mm | 858 mm |
| Rake | 41 mm | 38 mm | 38 mm |
| Trail | 128 mm | 131 mm | 131 mm |
| Stack | 649 mm | 663 mm | 676 mm |
| Reach | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 588 mm | 613 mm | 638 mm |
| Seat Tube Angle | 76 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 440 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 461 mm | 465 mm | 469 mm |
| Wheelbase | 1257 mm | 1289 mm | 1325 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
ECC 5 is part of the Gasgas E Ecc model. There are 3 e-bikes that carry this model name. Take a sneak peek at all Gasgas E Ecc e-bikes models from 2023, by clicking here.
Model range prices
GASGAS ECC 4 2023 is the most economical model, with a starting price of 7729$. GASGAS ECC 6 2023 on the other hand costs 11041$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 10268$. Doing a quick comparison, we notice that ECC 5 price is 114.59% more expensive than the average cost of an Enduro e-bike.
ECC 5 components
Fork
The DVO Onyx SC is included from the factory. It has a travel distance of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
GASGAS ECC 5 e-bike has the DVO JadeX CV Coil model installed, and has a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, GASGAS ECC 5 2023, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The ECC 5 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
ECC 5 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the ECC 5. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
