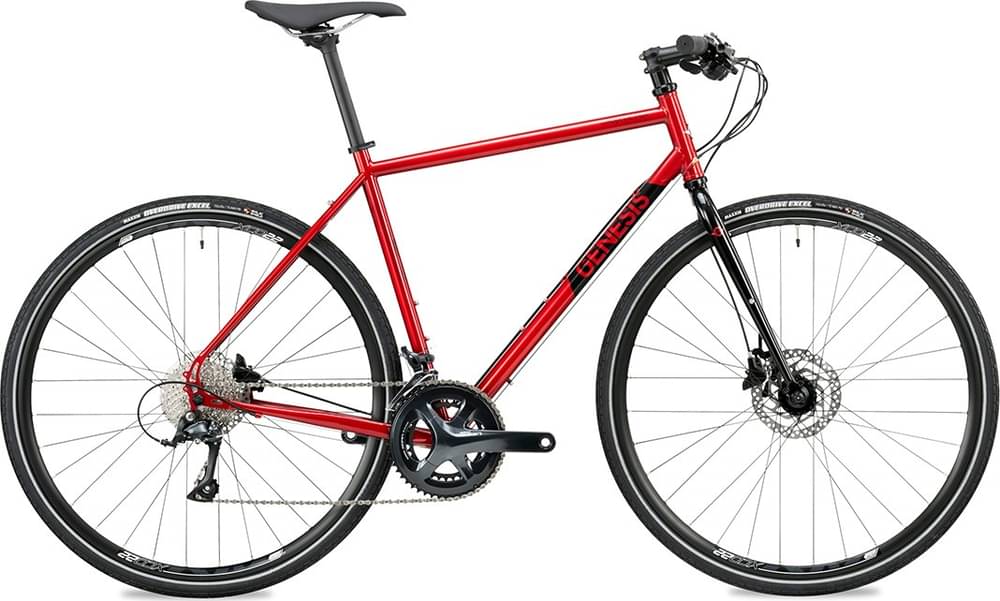

Genesis Croix de Fer 10 Flat Bar 2020
2020 Road
Estimate price |
1,354$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset GRX 400, Tiagra -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
Chromoly Disc Fork With Anything Cage Mounts
Drivetrain
Rear Derailleur
Shimano GRX RD-RX400 10 Speed
Front Derailleur
Shimano GRX FD-RX400
Shift Levers
Shimano Tiagra SL-4700 10 Speed
Cassette
Shimano CS-HG500-10 11-34T
Bottom Bracket
Shimano BB-RS500
Chain
KMC X10
Pedals
NW-91K With Cage
Wheels
Front Hub
KT-K68 / 6 Bolt
Rear Hub
KT-K68 / 6 Bolt
Rims
Jalco XCD23
Spokes
Steel 14 g
Tires
WTB Nano 700 x 40c
Brakes
Brakes
Shimano BR-MT200 Hydraulic Disc
Brake Levers
Shimano BL-MT200 hydraulic brakes
Cockpit
Stem
Genesis Alloy 31.8mm -6 deg 100 mm
Headset
PT-1606 EC34 Upper / EC34 Lower
Seat
Saddle
Genesis
Seatpost
Genesis Alloy 27.2 x 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.54 mm | 1.55 mm | 1.56 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 555 mm | 574 mm | 595 mm | 614 mm | 635 mm |
| Reach | 367 mm | 377 mm | 387 mm | 397 mm | 407 mm |
| Top Tube Length | 526 mm | 546 mm | 563 mm | 584 mm | 607 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 115 mm | 135 mm | 155 mm | 175 mm | 195 mm |
| Wheelbase | 1009 mm | 1025 mm | 1037 mm | 1054 mm | 1065 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 763 mm | 786 mm | 810 mm | 828 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Croix de Fer 10 Flat Bar is part of the Genesis Croix model. Genesis released 58 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Genesis Croix de Fer 10 Flat Bar 2020 is the cheapest bike model and costs 1215$. Genesis Croix De Fer Ti 2020 is the most expensive one and costs 4864$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 1215$. If we compare this with the average Gravel bike cost we notice that the price is 102.63% lower.
Croix de Fer 10 Flat Bar components
Fork material
The fork on this bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
When leaving the production line, the Croix de Fer 10 Flat Bar model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Croix de Fer 10 Flat Bar has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
